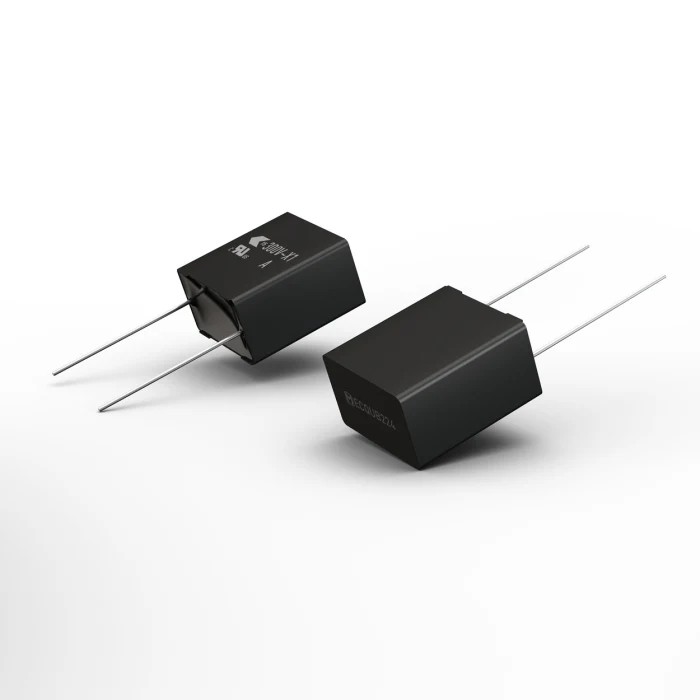

Panasonic ECQUB Polypropylene Capacitor 5.6nF ±10% 300V AC Through Hole ECQUBAF562K
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 11.5mm |
| Length | 15.3mm |
| Model | ECQUBAF562K |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | ECQUB |
| Maximum Operating Temperature | 110°C |
| Tolerance | ±10 % |
| Capacitance | 5.6nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Straight |
| Dissipation Factor | 0.1% |
| Lead Length | 20mm |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 300V ac |
| Lead Pitch | 12.5mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with metallized polypropylene film for durable electrical characteristics.
- Operates reliably within a temperature range from -40°C to 110°C.
- Designed with straight terminals and a lead pitch of 12.5mm for standard PCB mounting.
- Features flame-retardant plastic case and non-combustible resin for enhanced safety.
- Certified to standards CSA E60384-14, EN 60384-14, and UL 60384-14 ensuring compliance and reliability.
- Compliant with RoHS directives supporting environmentally safe usage.
- Meets automotive standard AEC-Q200 for high automotive quality requirements.
- Low dissipation factor of 0.1% contributes to efficient energy performance.
Product Description
Panasonic ECQUBAF562K Polypropylene Capacitor is engineered for interference suppression in electronic equipment, optimized for industrial and automotive applications with a robust operating range from -40°C to 110°C and a rated AC voltage of 300V.
This capacitor incorporates metallized polypropylene film offering non-inductive construction, ensuring reliable performance and stability under various conditions. Its straight terminal design with a 12.5mm lead pitch facilitates easy and standardized PCB mounting, suitable for through-hole assembly.
The capacitor's safety is enhanced with a flame-retardant plastic case and non-combustible resin housing, providing Class X1 safety standard compliance and high moisture resistance (85°C, 85% RH, 275V AC for 500 hours).
It meets international quality and safety standards including CSA E60384-14, EN 60384-14, and UL 60384-14 and adheres to the stringent automotive standard AEC-Q200, making it ideal for automotive electronic applications.
Offering a low dissipation factor of 0.1%, it ensures efficient energy usage and minimal heat generation during operation. Constructed with metallized polypropylene film for durable electrical characteristics. Operates reliably within a temperature range from -40°C to 110°C.
Designed with straight terminals and a lead pitch of 12.5mm for standard PCB mounting. Features flame-retardant plastic case and non-combustible resin for enhanced safety. Certified to standards CSA E60384-14, EN 60384-14, and UL 60384-14 ensuring compliance and reliability.
Compliant with RoHS directives supporting environmentally safe usage. Meets automotive standard AEC-Q200 for high automotive quality requirements. Low dissipation factor of 0.1% contributes to efficient energy performance.
Compact dimensions: 15.3mm length, 11.5mm height, and 5mm width. Lead length is 20mm with 0.6mm lead diameter suitable for through-hole applications.
This capacitor is suitable for applications in industrial electronics, automotive systems, power supplies, and interference suppression circuits where reliability and performance are critical.
Browse Panasonic capacitors and other high-quality electronic components on EnvMart for your specialized application needs.
Explore more products in our Passive Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 5.6nF.
It can operate reliably at a maximum temperature of 110°C.
The rated AC voltage for this capacitor is 300V AC.
The lead pitch for this model is 12.5mm, designed for standard PCB mounting.
The dimensions are 15.3mm in length, 11.5mm in height, and 5mm in width.
It has a low dissipation factor of 0.1%, contributing to efficient energy performance.
This model features straight terminals suitable for through-hole mounting.
The minimum operating temperature is -40°C.
It meets the automotive standard AEC-Q200, ensuring high quality for automotive applications.
It features a flame-retardant plastic case and non-combustible resin for enhanced safety.
Yes, it is compliant with RoHS directives, supporting environmentally safe usage.
This capacitor is suitable for industrial electronics, automotive systems, power supplies, and interference suppression circuits.
