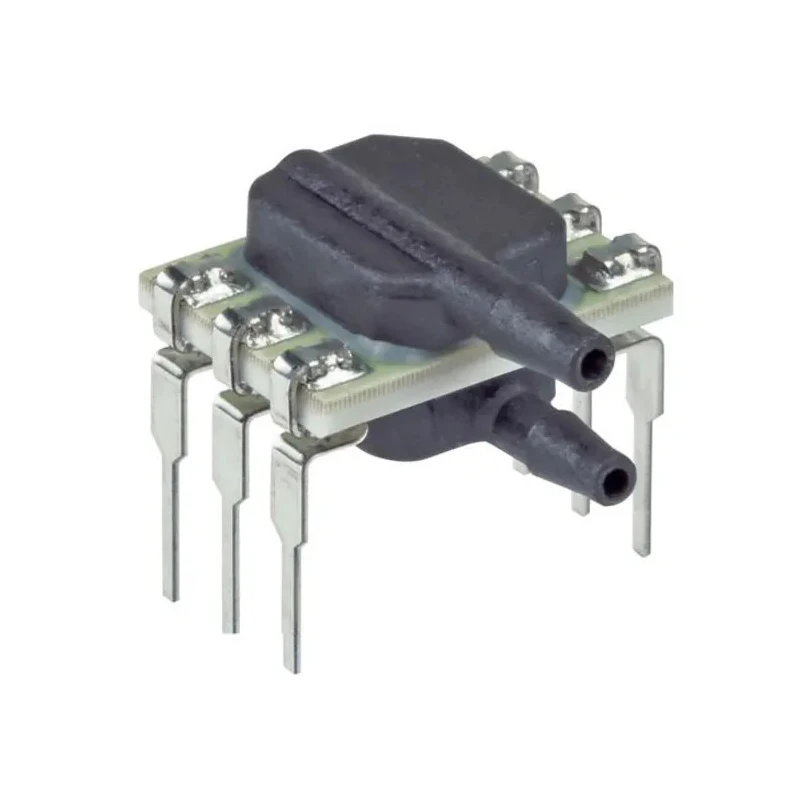

Honeywell Technologies Pressure Sensor Board 6 DIP with ±0.25% Accuracy, 6.9 kPa Max Operating Pressure ABPDRRV001PDSA3
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 6.9 kPa |
| Height | 3.63mm |
| Length | 7.3mm |
| Model | ABPDRRV001PDSA3 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Dual Radial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 206kPa |
Key Features
- Measures differential pressure with temperature compensation.
- Provides analogue output at up to 1 kHz and digital output up to 2 kHz.
- Operates from -40°C to +85°C for reliability in harsh environments.
- Sleep mode reduces power consumption to 2 μA for battery use.
- Supports dry gases and optional non-corrosive liquids.
- Six-pin DIP package with dual radial barbed ports for board mounting.
- Certified BPA Free, LFGB, and NSF-169 for food contact safety.
- Ideal for medical, industrial, HVAC, and domestic appliance monitoring.
Product Description
Honeywell ABPDRRV001PDSA3 Pressure Sensor Board 6 DIP is a high precision piezoresistive pressure sensor offering ±0.25% full scale accuracy and a maximum operating pressure of 6.9 kPa. It features a ratiometric analogue output at up to 1 kHz and 12-bit digital output at up to 2 kHz for real-time pressure difference measurement between two ports in board-mounted systems.
This sensor is temperature compensated and calibrated on an integrated ASIC to correct offset, sensitivity, and temperature effects, ensuring reliable and accurate measurements across a wide temperature range from -40°C to +85°C. The device's sleep mode reduces power consumption to as low as 2 μA, making it highly suitable for battery-powered devices.
The ABPDRRV001PDSA3 is designed with a six-pin dual inline package (DIP) and dual radial barbed ports, offering easy integration on printed circuit boards. It supports dry gas applications by default, and optional silicone-gel coatings enable use with non-corrosive liquids and environments with condensation.
This sensor complies with BPA Free, LFGB, and NSF-169 standards, certifying it safe for food contact applications. Its performance and environmental resilience make it ideal for critical applications such as CPAP and ventilator pressure monitoring, pneumatic control and valve positioning, industrial process gas monitoring, coffee makers, domestic appliance pressure control, and patient monitoring equipment used in laboratories and hospitals.
Highly accurate ±0.25% full scale pressure measurement for precise monitoring. Operates reliably in temperatures ranging from -40°C up to +85°C. Low power consumption enabled by sleep mode for battery operated devices. Multiple output options: ratiometric analogue and 12-bit digital interfaces.
Robust six-pin DIP mounting with dual radial barbed ports simplifies installation. Suitable for dry gases and optionally for non-corrosive liquid media. Certified safe for food contact applications according to multiple standards.
Versatile applications in medical, industrial, HVAC, and domestic systems.
For detailed technical integration, download DesignSpark software compatible with PCB and 3D mechanical designs. Discover additional industrial sensors and semiconductors in the Electronics & Electricals category at EnvMart.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the Honeywell ABPDRRV001PDSA3 pressure sensor is 6.9 kPa.
This model offers an accuracy of ±0.25% full scale.
It operates reliably within a temperature range of -40°C to +85°C.
It provides a ratiometric analogue output at up to 1 kHz and a 12-bit digital output at up to 2 kHz.
The sensor is designed for board mounting with a six-pin dual inline package (DIP).
The dimensions are 7.3 mm in length, 6.3 mm in width, and 3.63 mm in height.
It supports dry gases by default, and optional silicone-gel coatings enable use with non-corrosive liquids.
It is certified BPA Free, LFGB, and NSF-169, ensuring safety for food contact applications.
The maximum supply voltage is 5V, with a minimum supply voltage of -0.3V.
It is ideal for applications in medical, industrial, HVAC, and domestic appliance monitoring.
The sleep mode reduces power consumption to as low as 2 μA, making it suitable for battery-powered devices.
It is a piezoresistive pressure sensor designed for high precision pressure measurement.
