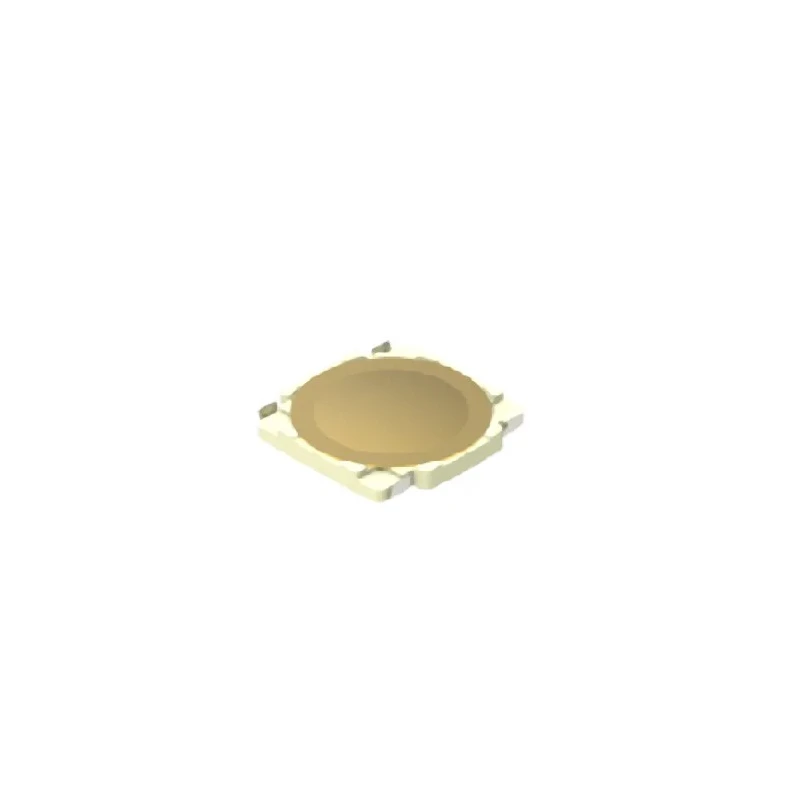

Alps Alpine Black Tactile Switch Button SPST 50mA 12 V dc Surface Mount SKRBAAE010

Name: Alps Alpine Black Tactile Switch Button SPST 50mA 12 V dc Surface Mount SKRBAAE010
Brand: Alps Alpine
SKU: 274818
Price: 0.27 USD
Availability: InStock



Category Tactile Switch Brand Alps Alpine Condition New

Specifications

Country of Origin	Japan
Brand	Alps Alpine
Height	550μm
Length	4.8mm
Model	SKRBAAE010
Width	4.8mm
Mount Type	Surface
Series	SKRB
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-40°C
Terminal type	Surface Mount
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	917-3983Brand: Alps AlpineManufacturers Part No.: SKRBAAE010
Switch Operation	Momentary
Actuator Colour	Black
Contact DC Voltage	12V dc
Actuator Style	Button
Actuator Orientation	Straight
Switch Contact Current	50mA
Operating Force	1.57N
Mechanical Life	1000000Cycles

Key Features

The switch features SPST contact configuration for simple on/off control.
Surface mount terminal type ensures easy PCB installation.
Momentary switch operation with black button actuator color.
Compact size of 4.8mm length and width with 550μm height.
Operates reliably between -40°C and 85°C temperature range.
Offers a switch contact current of 50mA at 12 V dc.
Mechanical life rated to 1,000,000 cycles providing long durability.
Operating force required is 1.57N for actuation.

Product Description

Alps Alpine SKRBAAE010 black tactile switch button is a high-quality surface mount SPST switch designed for precise and reliable momentary operation in electronics applications. Operating at 12 V dc and rated for 50mA contact current, this switch is suitable for use in a variety of devices including audio-visual equipment and automotive electronic systems.

Its compact physical dimensions of 4.8mm by 4.8mm with a height of 550μm make it ideal for space-constrained printed circuit board layouts. The black button actuator features a straight orientation, providing tactile feedback with an operating force of 1.57N ensuring ease of use.

Designed for harsh environments, the switch operates within a temperature range of -40°C to 85°C and complies with RoHS standards for environmental safety. Its one million cycles mechanical life rating guarantees durability in industrial and consumer electronic products.

The SKRB series tactile switches from Alps Alpine feature low contact resistance and high contact reliability with surface mount terminals suited for modern manufacturing techniques. Its snap-action design facilitates a clean ON-OFF switching operation to meet precise control demands.

SPST contact configuration for simple switching control. Surface mount technology compatible terminals. Momentary switch operation with black button actuator. Compact 4.8mm x 4.8mm footprint and 550μm height. Operating temperature from -40°C to 85°C for robust performance.

Switch contact current rated at 50mA for small current applications. Mechanical life expectancy of one million cycles for longevity. Operating force of 1.57N ensures tactile feedback reliability.

This Alps Alpine tactile switch is ideal for industrial, electronics manufacturing, automotive, and audio-visual equipment applications requiring precise momentary switch action in a compact form factor. Its compliance with environmental standards and proven reliability further makes it well-suited for mass production and high-quality electronic assemblies.
