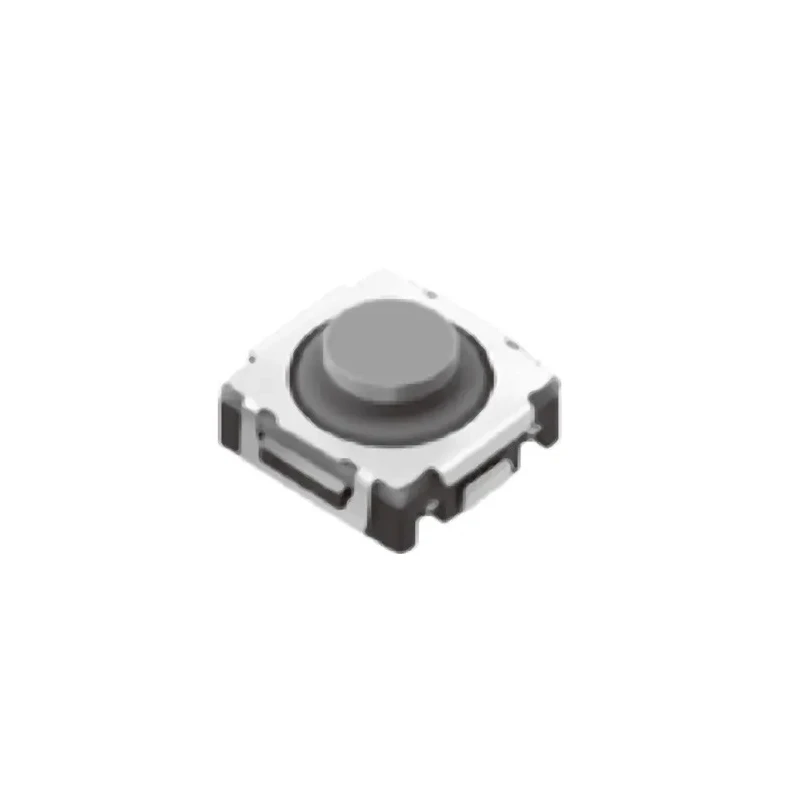

Alps Alpine Grey Tactile Switch Button SPST 50mA 12 V DC Surface Mount SKSTAAE010
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Alps Alpine |
| Height | 3.95mm |
| Length | 8.5mm |
| Model | SKSTAAE010 |
| Width | 8.5mm |
| Mount Type | Surface |
| Series | SKST |
| Maximum Operating Temperature | 90°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 917-3911Brand: Alps AlpineManufacturers Part No.: SKSTAAE010 |
| Switch Operation | Momentary |
| Actuator Colour | Grey |
| Contact DC Voltage | 12V dc |
| Actuator Style | Button |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Operating Force | 4N |
| Mechanical Life | 500000Cycles |
Key Features
- The switch features a grey button actuator with a straight orientation.
- It operates with a mechanical life of 500,000 cycles ensuring durability.
- The operating force required is 4 Newtons for tactile feedback.
- Suitable for low current audio, visual, and automotive uses with RoHS compliance.
- Designed for operation within -40°C to 90°C temperature range.
- The switch has SMT solder terminal type for reliable surface mounting.
- Switch configuration is (On)-Off with SPST contact arrangement.
Product Description
Alps Alpine SKSTAAE010 is a grey tactile switch button designed for surface mount applications. This SPST momentary switch is rated for a maximum operating voltage of 12 V DC and a maximum contact current of 50mA, making it ideal for low-power electronic circuits.
The switch is equipped with a grey button actuator with straight orientation, providing reliable tactile feedback with an operating force of 4 Newtons. It boasts a mechanical life of up to 500,000 cycles, ensuring longevity and consistent performance in varied industrial and commercial electronics.
Compact in size, with dimensions of 8.5mm length, 8.5mm width, and a height of 3.95mm, it is well-suited for integration into audio-visual equipment, automotive electronics, and other small device applications. The switch is RoHS compliant and designed to function reliably over a wide temperature range from -40°C to 90°C, supporting usage in harsh environmental conditions.
The surface mount technology (SMT) solder terminal type allows for efficient manufacturing and assembly on printed circuit boards. Its SPST (Single Pole Single Throw) contact configuration allows basic On-Off switching functionality, ideal for user interfaces requiring momentary tactile input.
This Alps Alpine tactile switch series offers various actuator colors and styles, enabling versatile customizations to match application needs. The SKSTAAE010 model provides a robust solution for precise control input in industrial, laboratory, automotive, and electronic device applications.
The switch features a grey button actuator with a straight orientation. It operates with a mechanical life of 500,000 cycles ensuring durability. The operating force required is 4 Newtons for tactile feedback. Dimensions: 8.5mm length, 8.5mm width, and 3.95mm height suit compact electronic applications.
Suitable for low current audio, visual, and automotive uses with RoHS compliance. Designed for operation within -40°C to 90°C temperature range. The switch has SMT solder terminal type for reliable surface mounting. Switch configuration is (On)-Off with SPST contact arrangement.
Explore the Alps Alpine range for high-quality Tactile Switches and enhance your electronics performance with reliable inputs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this model is 50mA.
This tactile switch operates at a maximum voltage of 12 V DC.
The mechanical life of this switch is rated at 500,000 cycles.
The dimensions of this model are 8.5mm in length, 8.5mm in width, and 3.95mm in height.
It is designed to operate within a temperature range of -40°C to 90°C.
This model uses a surface mount (SMT) for reliable installation on printed circuit boards.
The contact configuration of this switch is SPST (Single Pole Single Throw).
The operating force required for tactile feedback is 4 Newtons.
Yes, the switch is RoHS compliant, ensuring it meets environmental standards.
This tactile switch features a grey button actuator with a straight orientation.
It is suitable for low current audio, visual, and automotive applications.
The switch has a solder terminal type for surface mounting.
