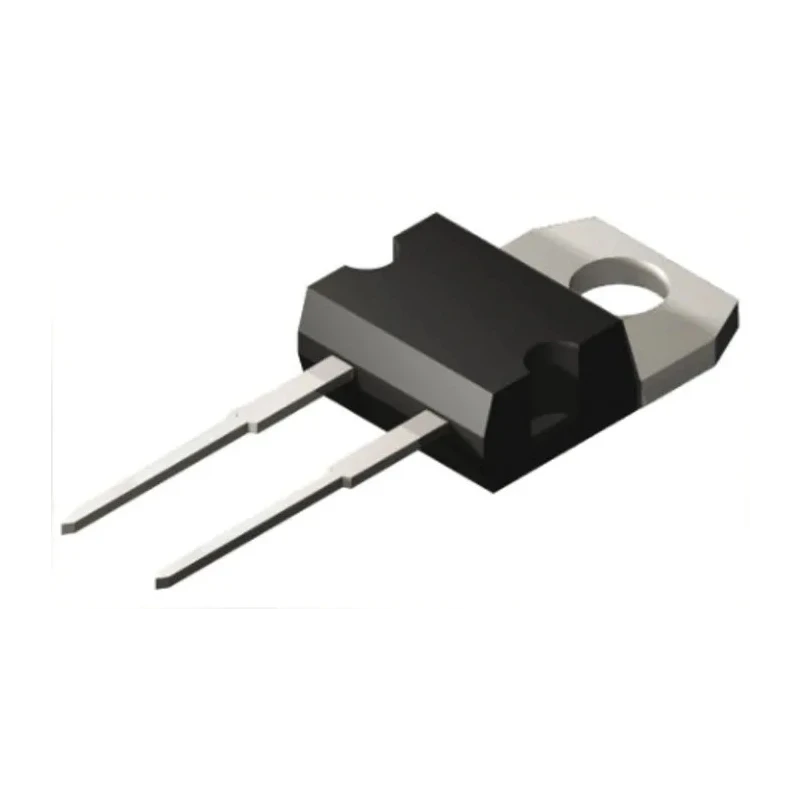

Wolfspeed 650 V 24 A Schottky Diode 2-Pin TO-220 Package C3D08065A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wolfspeed |
| Height | 4.69mm |
| Length | 10.41mm |
| Model | C3D08065A |
| Width | 15.62mm |
| Mount Type | Through Hole |
| Series | Z-Rec |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 24A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 204μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 650A |
| Maximum Forward Voltage Vf | 2.4V |
Key Features
- This diode features a single configuration with a 2-pin TO-220 package.
- It supports a peak non-repetitive forward surge current of 650 A.
- The maximum forward voltage drop is 2.4 V which ensures efficient power handling.
- Operating temperature ranges from -55°C up to 175°C for robust performance.
- Designed with Wolfspeed’s Z-Rec silicon carbide technology for improved thermal conductivity and reduced power loss.
- It has zero reverse recovery current leading to higher switching efficiency.
- The device exhibits a positive temperature coefficient forward voltage, enhancing parallel device operation.
- Wolfspeed C3D08065A is optimized for use in high-voltage, high-frequency applications including switch-mode power supplies and inverters.
Product Description
Wolfspeed C3D08065A Schottky Diode 2-Pin TO-220 package is a high-performance Z-Rec™ silicon carbide diode designed for efficient power conversion applications.
This diode supports a maximum continuous forward current of 24 A and features a peak reverse repetitive voltage rating of 650 V, making it well-suited for demanding industrial and automotive environments.
The device's single diode configuration minimizes losses with a maximum forward voltage of 2.4 V and a peak non-repetitive forward surge current of 650 A. It operates reliably over a wide temperature range from -55°C to 175°C, supporting AEC-Q101 automotive compliance.
Wolfspeed's SiC technology offers significant advantages including near-zero reverse recovery current, fast switching speeds, higher breakdown field strength, and improved thermal conductivity. These attributes reduce power losses and heat generation in high-frequency power supplies, inverters, and power factor correction (PFC) boost circuits.
The diode's positive temperature coefficient voltage drop prevents thermal runaway, allowing multiple devices to be paralleled without requiring complex thermal management. Single Z-Rec Schottky diode in TO-220 package. 650 V reverse voltage and 24 A forward current capability.
Wide operating temperature range from -55°C to 175°C. Extremely low reverse recovery and fast switching characteristics. Optimized for power supplies, inverters, and PFC boost applications. Automotive grade AEC-Q101 compliant.
Wolfspeed C3D08065A is an excellent choice for industrial, automotive, and high-efficiency power electronics requiring reliable high-voltage Schottky Diode performance. Explore more semiconductor solutions from Wolfspeed at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 24 A.
The peak reverse repetitive voltage rating is 650 V.
The maximum forward voltage drop is 2.4 V.
It operates reliably over a temperature range from -55°C to 175°C.
The diode comes in a TO-220 package type.
This model features a 2-pin configuration.
The peak non-repetitive forward surge current rating is 650 A.
It complies with the AEC-Q101 automotive standard.
This model is a Schottky rectifier.
The height of this diode is 4.69 mm.
The zero reverse recovery current leads to higher switching efficiency, making it suitable for high-frequency applications.
The width is 15.62 mm and the length is 10.41 mm.
