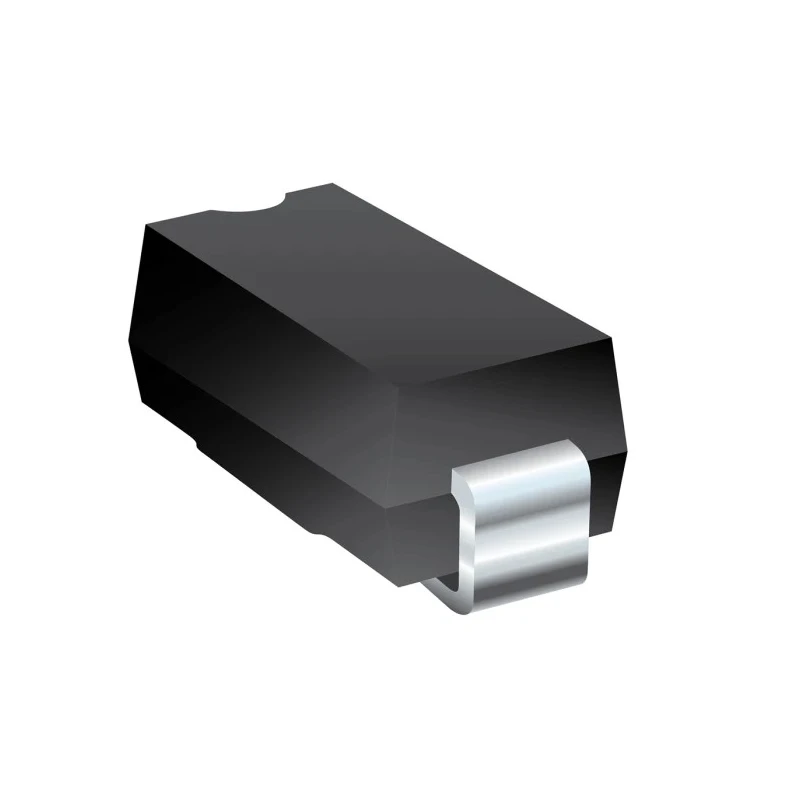

Bourns Uni-Directional 1-Element ESD Protection Diode SMA6J24A, 600W Peak Pulse Power, 2-Pin DO-214 Package
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Bourns |
| Height | 2.08mm |
| Length | 4.5mm |
| Model | SMA6J24A |
| Width | 2.79mm |
| Mount Type | Surface |
| Series | SMA |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 26.7V |
| Maximum Reverse Stand-off Voltage Vwm | 43V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Reverse Leakage Current | 1μA |
| Standoff Voltage | 5 to 43 volts |
Key Features
- Uni-directional diode configuration suitable for ESD protection.
- Surface mount DO-214 package with 2 pins.
- Minimum breakdown voltage of 26.7 V and maximum reverse stand-off voltage of 43 V.
- Operating temperature range from -55°C to 150°C.
- Low maximum reverse leakage current of 1 microampere.
- Fast response time ideal for transient voltage suppression.
- Meets automotive standard AEC-Q101 for reliability.
- Compact dimensions with length 4.5 mm, width 2.79 mm, and height 2.08 mm.
Product Description
Bourns SMA6J24A is a uni-directional, single-element ESD protection diode with a peak pulse power dissipation of 600 W, packaged in a compact 2-pin DO-214 surface mount device. This diode provides protection against electrostatic discharge and surge transients in electronic circuits.
The device features a minimum breakdown voltage of 26.7 V and a maximum reverse stand-off voltage of 43 V, ensuring robust protection for sensitive components. It operates reliably in a temperature range from -55°C to 150°C, suitable for demanding industrial and automotive environments.
This TVS diode exhibits low maximum reverse leakage current of 1 μA, minimizing power loss in normal operation. The fast response time helps protect power buses, I/O interfaces, and industrial, telecom, computing, and consumer electronics devices from damage caused by voltage spikes and transient surges.
The SMA6J24A contains a single element per chip in a sturdy DO-214 package with compact dimensions measuring 4.5 mm length, 2.79 mm width, and 2.08 mm height. The device conforms to the automotive quality standard AEC-Q101, affirming its reliability in automotive systems.
Uni-directional diode configuration suitable for ESD protection. Surface mount DO-214 package with 2 pins. Minimum breakdown voltage of 26.7 V and maximum reverse stand-off voltage of 43 V. Operating temperature from -55°C to 150°C.
Maximum reverse leakage current of 1 μA. Fast transient voltage suppression response. Automotive grade compliance with AEC-Q101 standard. Compact dimensions for flexible PCB mounting. Ideal for protection of power buses, I/O interfaces, and surge transient protection in multiple electronic sectors.
Manufactured in Taiwan, Province of China.
This ESD Protection Diode is highly suited for use in industrial manufacturing, automotive electronics, telecommunications, consumer electronics, and computer systems where transient voltage protection is critical. The robust construction and automotive-grade qualification make it a reliable choice for high-performance circuit protection applications.
Explore Bourns products and ESD protection solutions on EnvMart for superior transient voltage suppression devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse power dissipation of this model is 600 W.
The minimum breakdown voltage for the SMA6J24A is 26.7 V.
The maximum reverse stand-off voltage of this unit is 43 V.
It operates reliably in a temperature range from -55°C to 150°C.
The maximum reverse leakage current for this model is 1 μA.
This diode is packaged in a surface mount DO-214 package with 2 pins.
The SMA6J24A contains a single element per chip.
This model complies with the automotive standard AEC-Q101.
The height of this diode is 2.08 mm.
The dimensions of this model are 4.5 mm in length, 2.79 mm in width, and 2.08 mm in height.
The test current for this diode is 1 mA.
This ESD protection diode is suitable for use in industrial manufacturing, automotive electronics, telecommunications, consumer electronics, and computer systems.
