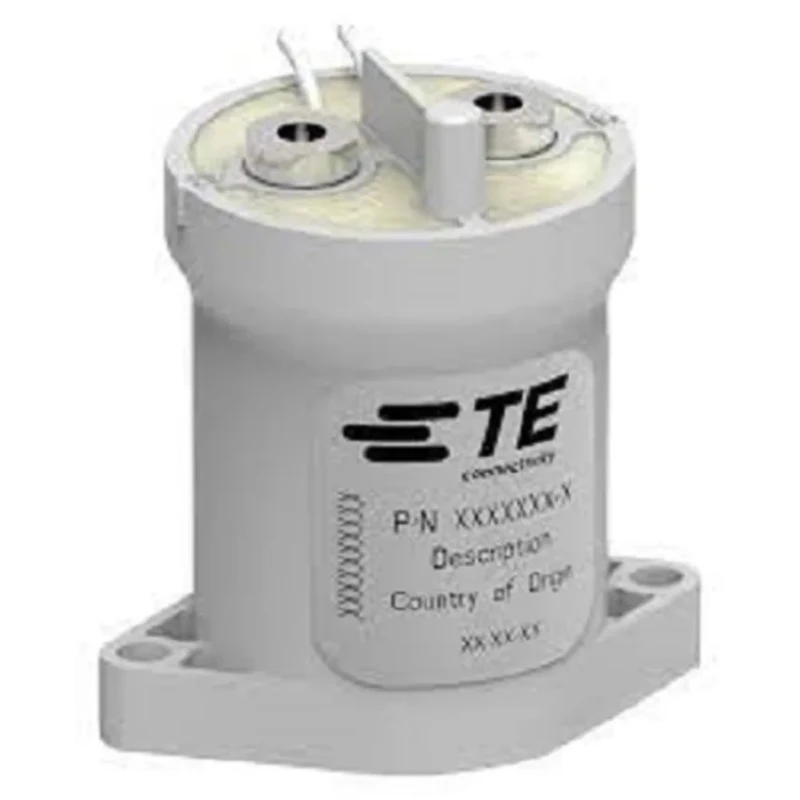

TE Connectivity Automotive Relay 12V DC Coil Voltage, 20A Switching Current, SPST 2203194-1
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Height | 24.9mm |
| Length | 25.9mm |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Plug-In |
| Coil Resistance | 15.3Ω |
| Coil Power | 1.4W |
Key Features
- Operates reliably between -40°C and 125°C ensuring durability in extreme conditions.
- Coil power consumption is low at 1.4W for energy-efficient operation.
- Silver alloy contact material provides excellent conductivity and long operational life.
- Compact size with 25.9mm length and 24.9mm height suitable for automotive electrical systems.
- Plug-In terminal type enables easy installation and maintenance.
- Hermetically sealed and UL approved for safety and reliability.
- Designed for high voltage DC applications including hybrid and electric vehicles.
- Main contactor for onboard chargers, auxiliary loads, and precharge systems.
Product Description
TE Connectivity 2203194-1 Automotive Relay is engineered for robust automotive electrical system integration, operating on a 12V DC coil voltage and facilitating a 20A switching current with SPST contact configuration. This relay is hermetically sealed and UL approved, ensuring high safety and reliability standards in automotive and electric vehicle applications.
Its coil power rating of 1.4W and coil resistance of 15.3Ω contribute to efficient power consumption. The relay operates effectively across a broad temperature range from -40°C to 125°C, making it suitable for harsh environmental conditions. The silver alloy contact material enhances conductivity and durability over extended operational periods.
The compact form factor with a length of 25.9mm and height of 24.9mm, combined with plug-in terminals, facilitates straightforward installation in tight automotive spaces. This model is designed as a main contactor for high voltage DC applications including onboard chargers, auxiliary loads, and precharge systems, with continuous current capacity up to 135A at 85°C.
Its applications extend to hybrid and electric vehicles and other DC high voltage systems, meeting demanding industrial requirements for automotive reliability and performance. Operates reliably between -40°C and 125°C ensuring durability in extreme conditions.
Coil power consumption is low at 1.4W for energy-efficient operation. Silver alloy contact material provides excellent conductivity and long operational life. Compact size with 25.9mm length and 24.9mm height suitable for automotive electrical systems.
Plug-In terminal type enables easy installation and maintenance. Hermetically sealed and UL approved for safety and reliability. Designed for high voltage DC applications including hybrid and electric vehicles. Main contactor for onboard chargers, auxiliary loads, and precharge systems.
Explore more options in Automotive Relays at EnvMart for your industrial, automotive, and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The automotive relay operates on a 12V DC coil voltage.
It has a maximum switching current of 20A.
This relay features an SPST (Single Pole Single Throw) contact configuration.
It operates reliably between -40°C and 125°C.
The coil power consumption is low at 1.4W, contributing to energy-efficient operation.
The relay has a compact size with a length of 25.9mm and a height of 24.9mm.
The contacts are made of silver alloy, which provides excellent conductivity and long operational life.
It features a plug-in terminal type, which enables easy installation and maintenance.
Yes, it is designed for high voltage DC applications, including onboard chargers and auxiliary loads.
The relay is hermetically sealed and UL approved, ensuring safety and reliability standards.
The coil resistance is 15.3Ω.
It is designed for use in hybrid and electric vehicles, as well as other DC high voltage systems.
