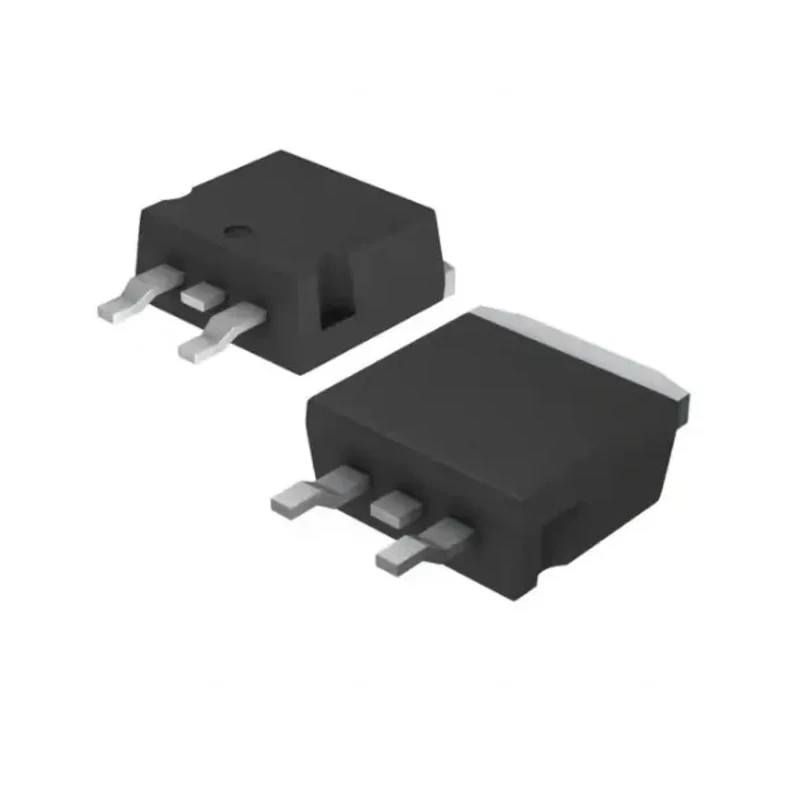

STMicroelectronics 45 V 30 A Surface Mount Schottky Diode, TO-263 Package STPS30L45CG-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 4.35mm |
| Length | 10.55mm |
| Model | STPS30L45CG-TR |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | STPS30L45C |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 740mV |
Key Features
- This diode features a maximum continuous forward current of 30 amperes.
- Designed with a peak reverse repetitive voltage of 45 volts.
- Incorporates a 2x common cathode pair diode configuration.
- Maximum forward voltage drop is 740 millivolts for increased efficiency.
- Operates reliably between -65°C to 150°C for versatile temperature applications.
- Peak non-repetitive forward surge current rating is 220 amperes.
- Compact TO-263 (D2PAK) package measures 10.55 mm in length, 9.35 mm in width, and 4.35 mm in height.
- Low forward voltage and switching losses enable high-frequency operation.
Product Description
STMicroelectronics STPS30L45CG-TR is a surface mount Schottky diode designed for high performance in switched mode power supplies and high frequency DC to DC converters. This diode, housed in a TO-263 package (also known as D2PAK), is rated for a maximum continuous forward current of 30 amperes and a peak reverse repetitive voltage of 45 volts, ensuring reliable operation in low voltage, high-frequency inverter circuits.
The device integrates a 2x common cathode pair configuration and offers a low forward voltage drop of 740 millivolts, minimizing conduction losses and enhancing efficiency. It can handle a peak non-repetitive forward surge current of 220 amperes and operates effectively across a wide temperature range from -65°C to 150°C.
With dimensions of 10.55 mm in length, 9.35 mm in width, and 4.35 mm in height, the compact TO-263 package ensures ease of installation on printed circuit boards while providing good thermal performance. Its low switching losses facilitate operation at high switching frequencies, making it suitable for various industrial applications.
This Schottky Diode is widely used for applications such as freewheeling diodes in inverters, polarity protection circuits, and switched mode power supplies, where low forward voltage and rapid switching capabilities are critical to performance and energy efficiency.
This diode has a maximum continuous forward current of 30 A. Peak reverse repetitive voltage is rated at 45 V. Configures as a 2x common cathode pair for dual rectification paths. Forward voltage drop of 740 mV reduces power loss.
Operating temperature range from -65°C to +150°C. Surge current capability up to 220 A non-repetitive forward surge. Compact surface-mount TO-263 package dimensions: 10.55 mm x 9.35 mm x 4.35 mm. Designed for efficient high frequency inverter and DC to DC converter applications.
Low switching losses and thermal resistance. Explore the wide range of semiconductor components at EnvMart for your electronic and industrial applications with trusted brands like STMicroelectronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 30 amperes.
This diode has a peak reverse repetitive voltage rating of 45 volts.
The maximum forward voltage drop for this model is 740 millivolts.
The dimensions of the TO-263 package are 10.55 mm in length, 9.35 mm in width, and 4.35 mm in height.
It operates reliably between -65°C and 150°C.
The peak non-repetitive forward surge current rating is 220 amperes.
This diode incorporates a 2x common cathode pair configuration.
This model has a pin count of 3.
It is classified as a Schottky rectifier.
This diode is suitable for applications such as freewheeling diodes in inverters, polarity protection circuits, and switched mode power supplies.
The peak reverse current is rated at 200 milliamperes.
Low forward voltage and switching losses enable high-frequency operation, making it suitable for efficient power conversion applications.
