| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | 30067 Mini-Fit TPA, 42474 Mini-Fit BMI Panel Mount, 5557 Mini-Fit Jr. Receptacle Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |

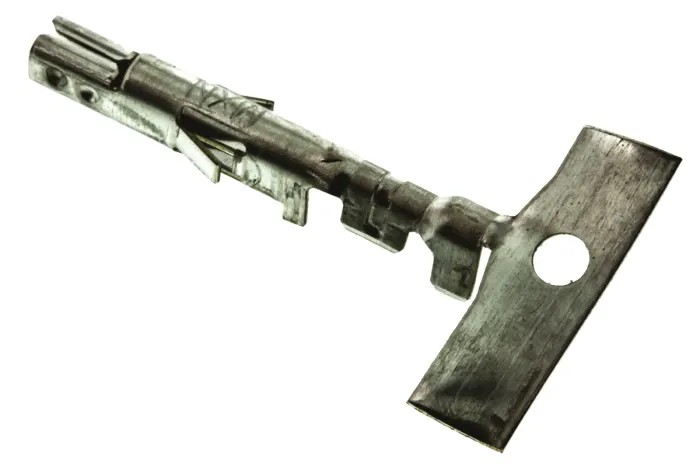

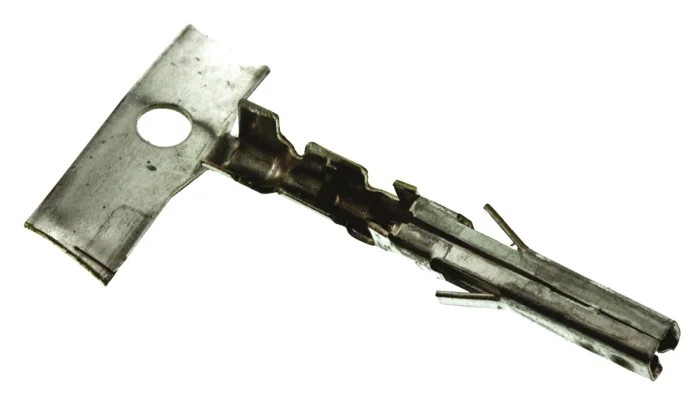

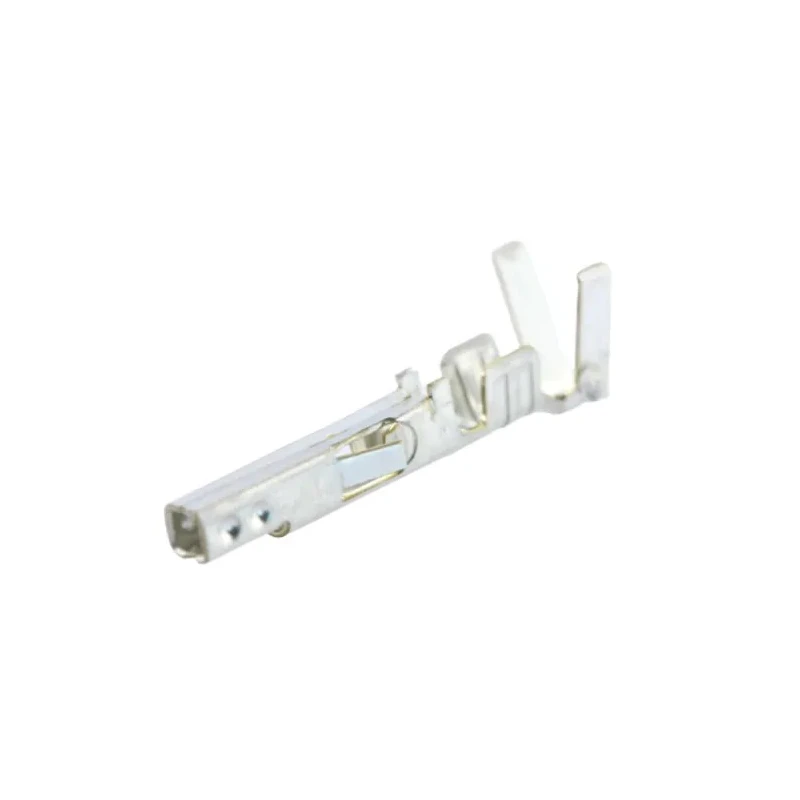

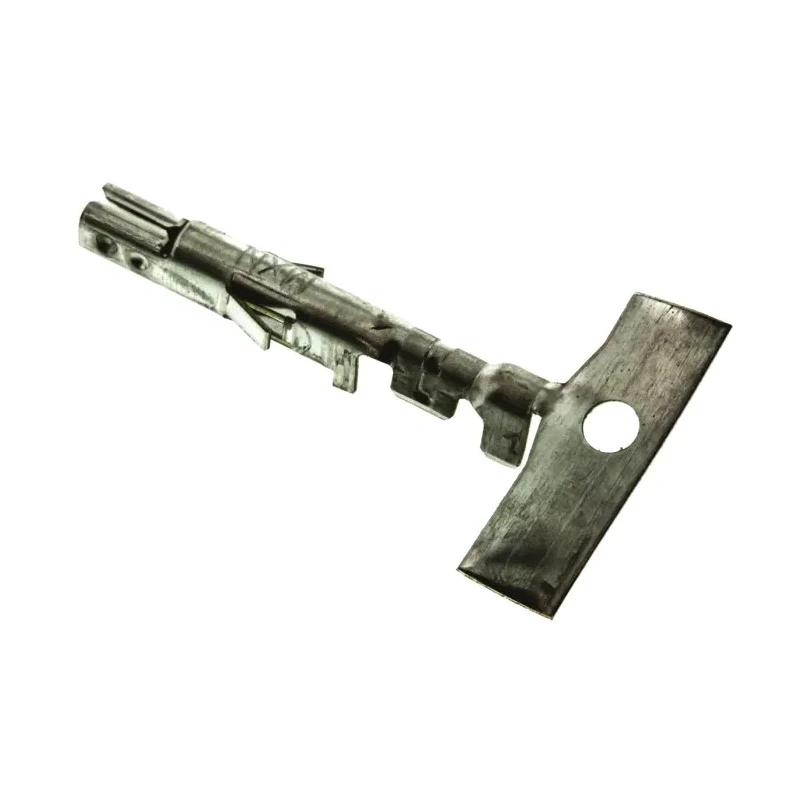

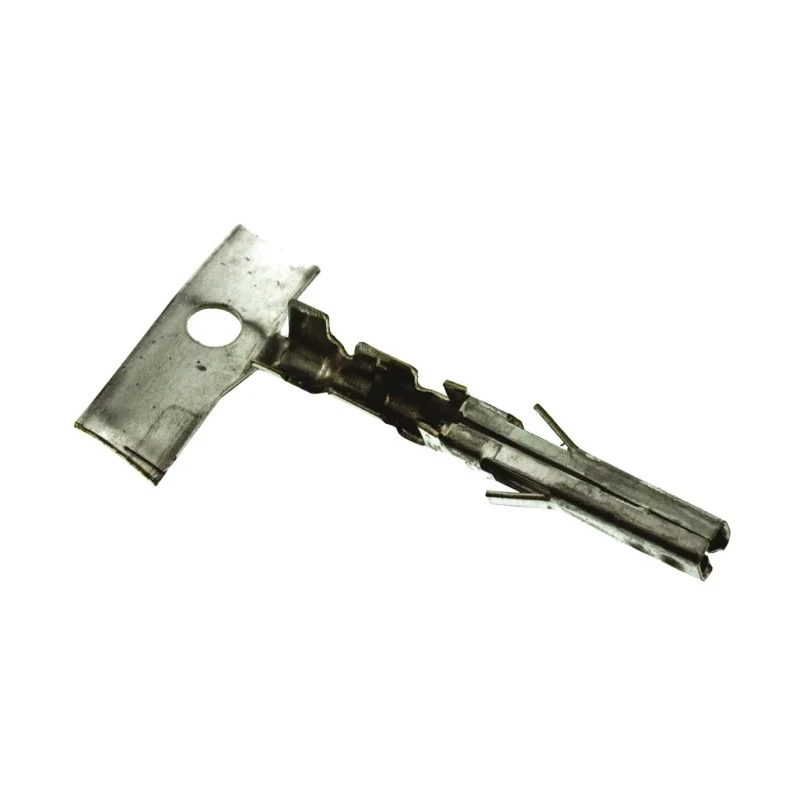

Molex 39-00-0046 female Crimp Terminal is engineered for robust, high-quality connections in demanding electronic environments. Featuring a brass contact material with tin plating, this terminal ensures excellent conductivity and resistance to corrosion, even in damp or harsh conditions. The device supports wires ranging from 28 AWG minimum to 22 AWG maximum and carries a current rating of up to 9A. It is designed specifically for use with Mini-Fit Jr. connector housings such as 30067 Mini-Fit TPA, 42474 Mini-Fit BMI Panel Mount, and 5557 Mini-Fit Jr. receptacle housings.
The crimp termination method eliminates the need for soldering, facilitating fast, secure installation while maintaining an airtight connection that protects against moisture and contaminants. Locking tangs further improve retention within the connector housing, ensuring reliable performance even under vibration and mechanical stress.
This terminal operates effectively across a temperature range from -40°C to 105°C, making it suitable for automotive, telecommunications networks, security systems, and industrial automation applications. The low halogen design enhances fire safety by limiting harmful toxic fumes in case of fire.
Molex Mini-Fit Jr. series crimp contacts like this model utilize multiple contact points to improve electrical reliability and current capacity. The terminal includes multiple quality features such as tin plating for corrosion resistance and low contact resistance of 10 milliohms max, contributing to stable and efficient circuit connections.
The brass contact material guarantees durability. Tin plating protects against corrosion. Crimp termination enables easy installation. Compatibility with standard Mini-Fit connector housings. Wide operating temperature range from -40°C to 105°C.
Locking tangs secure the connection firmly. Low halogen adds fire safety benefits. Ideal for automotive and telecommunications applications. Explore more electronic components and connectors at EnvMart for your industrial and manufacturing needs.
