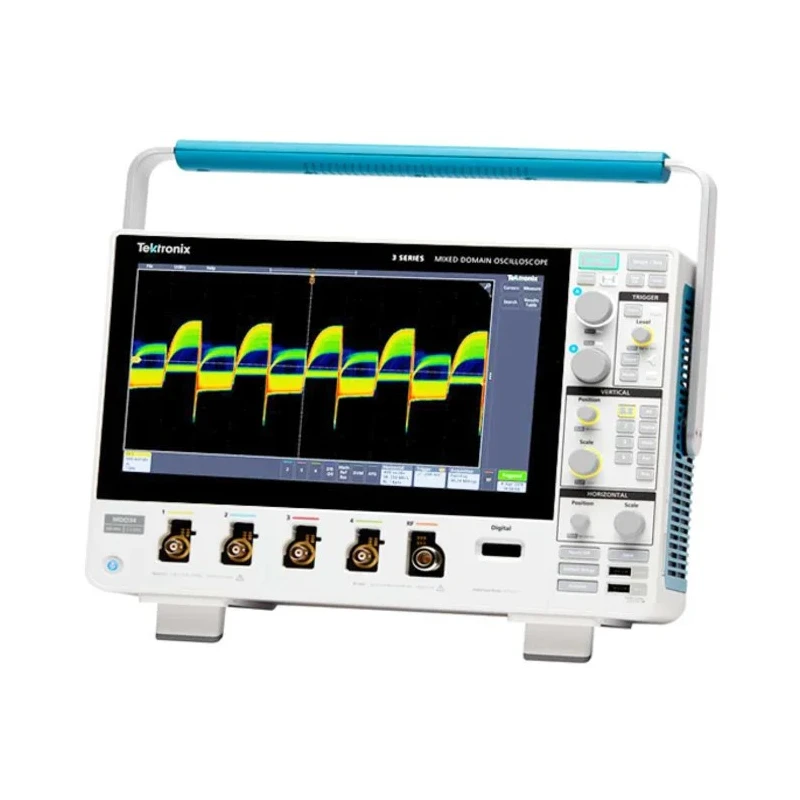

Tektronix 3 Series MDO Mixed Domain Bench Oscilloscope, 350 MHz Bandwidth, 16 Channels, 11.6-inch TFT LCD MDO32 3-BW-350

Tektronix MDO32 3-BW-350 Mixed Domain Bench Oscilloscope from the 3 Series MDO family features a 350 MHz bandwidth and 16 digital and analog channels. Designed for professional testing environments, it includes an 11.6-inch capacitive TFT LCD touchscreen that supports pinch, tap, and swipe control for enhanced user interaction.

This oscilloscope offers high low-level signal measurement accuracy, improved by up to 40%, with an industry-leading probe performance ideal for mixed signal and RF testing. It integrates a true hardware spectrum analyser with up to 1 GHz capability, supporting advanced RF measurements and complex waveform analysis.

The device supports a broad set of communication interfaces, including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB, enabling versatile connectivity for various signal types and protocols encountered in industrial, laboratory, manufacturing, and automotive test environments.

Equipped with a memory depth of 10 million points and a waveform refresh rate of 280,000 per second, it facilitates precise capture and detailed waveform examination. The vertical resolution of 8 bits ensures accurate amplitude representation, while the minimum time base of 1 ns/div and rise time of 1.14 ns allow analysis of fast transient events.

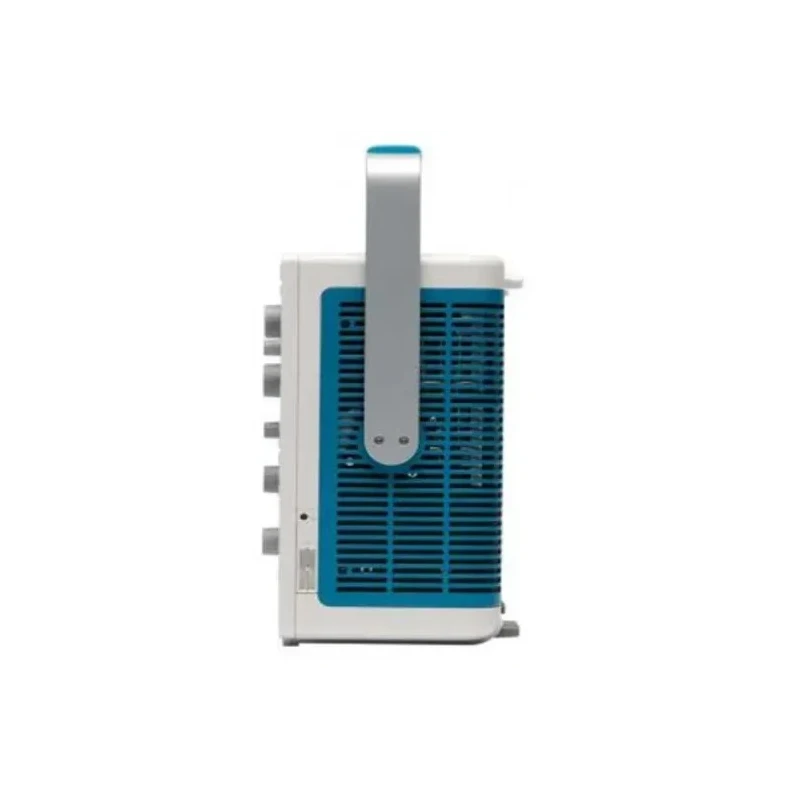

Physical dimensions are 252mm height, 148.6mm width, and 148.6mm depth, making it a compact addition to any bench setup.

Use cases for this oscilloscope include industrial product development, electronic design validation, RF testing, embedded system debugging, and educational laboratory applications. The built-in spectrum analyser further enhances its utility for radio frequency interference detection and signal integrity assessments.

350 MHz bandwidth suitable for complex signal analysis. 16 input channels providing extensive measurement capability. Large 11.6-inch HD capacitive touchscreen for intuitive operation. Mixed domain oscilloscope type with built-in spectrum analyser.

Supports multiple interfaces including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB. Memory depth of 10 Mpts enables detailed waveform capture. High waveform refresh rate of 280,000 per second for real-time observation.

Compact dimensions: Height 252mm, Width 148.6mm, Depth 148.6mm. Vertical resolution of 8 bit for accurate signal detail. Manufactured in China with reliable build quality and new product condition. Explore more instruments in the Oscilloscope category at EnvMart for professional-grade test and measurement solutions.
