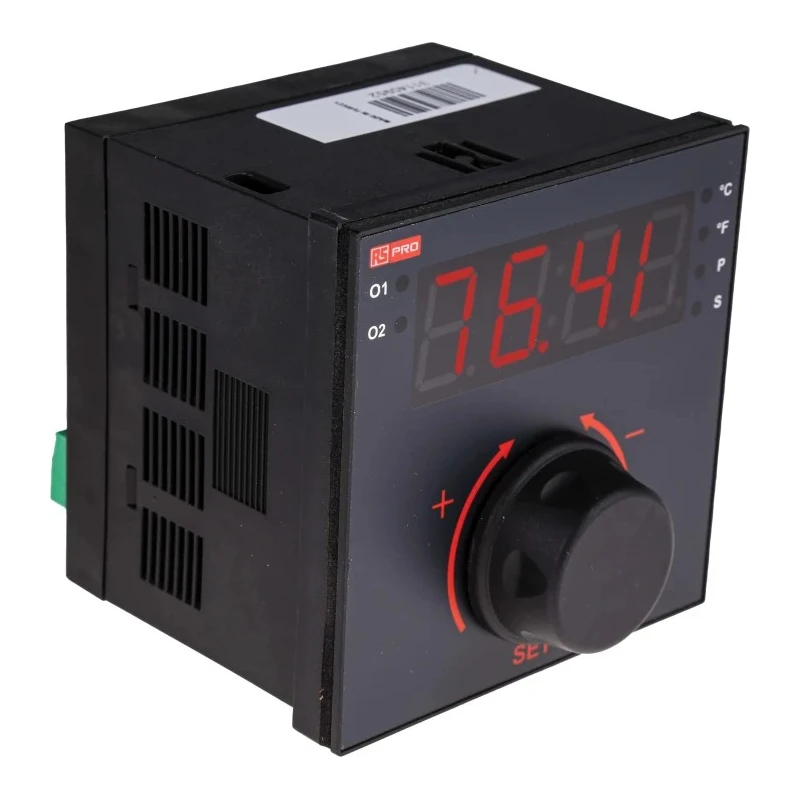

RS PRO Panel PID Temperature Controller 1 Input, 2 Output 2 Relay 230V ac 188-5167

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Panel PID Temperature Controller 1 Input, 2 Output 2 Relay 230V ac 188-5167

Name: RS PRO Panel PID Temperature Controller 1 Input, 2 Output 2 Relay 230V ac 188-5167
Brand: RS PRO
SKU: 260916
Price: 168.75 USD
Availability: InStock



Category Temperature Controllers Brand RS PRO Condition New

Specifications

Country of Origin	Turkey
Display Type	11 Digit
Brand	RS PRO
Operating Temperature	0 C to +50 C
Length	96mm
Model	188-5167
IP Rating	IP65, IP20
Width	96mm
Mount Type	Panel
Number of inputs	1
Output type	2 Relay
Series	RS PRO
Input Type	J Type Thermocouple
Maximum Operating Temperature	50°C
Control Type	PID Controller
Minimum Operating Temperature	0°C
Maximum Current	7A
Number of outputs	2
Terminal type	Screw
Maximum Voltage	250V
Standards/Approvals	IEC584.1, ITS90, IEC 751
Maximum Supply Voltage	230V ac
Panel Depth	76mm

Key Features

Robust PID controller supporting J, K, R, S, T, and L type thermocouples and RTD sensors.
Programmable control modes including ON/OFF, P, PI, PD, and PID for flexible temperature control.
Auto-tune/self-tune PID coefficient adaptation for system optimization.
IP65 front panel protection with IP20 at the rear for durability in industrial environments.
Wide operating temperature range of 0°C to 50°C suitable for various applications.
Screw terminal type for secure and reliable electrical connections.
Compact panel mount design with dimensions of 96mm x 96mm and 76mm panel depth.
Maximum supply voltage of 230V ac and maximum current of 7A ensures compatibility with industrial power systems.

Product Description

RS PRO 188-5167 Panel PID Temperature Controller is a high-quality device designed for precise temperature control and maintenance in industrial and process control applications operating at 230V ac. This PID controller supports a variety of sensor inputs such as thermocouples types J, K, R, S, T, L (IEC 584.1 standard), and RTD sensors, allowing accurate sensing and adjustment of temperature within industrial processes.

The controller features multiple programmable control types including ON/OFF, P, PI, PD, and full PID modes, giving operators flexibility in managing temperature according to system requirements. It includes automatic PID coefficient tuning via auto-tune/self-tune mechanism which simplifies setup and enhances control performance.

The device offers robust construction with IP65 front panel protection and IP20 rear protection, making it suitable for harsh industrial environments. The compact panel mount form factor with a 96mm x 96mm faceplate and 76mm panel depth facilitates easy integration into control panels. Screw terminals ensure secure wiring and connectivity.

Operation is supported in ambient temperatures from 0°C to 50°C, with a maximum supply voltage rating of 230V ac and a maximum current rating of 7A. The 11-digit display provides clear, continuous monitoring of temperature parameters, aiding in precise process control.

This RS PRO PID temperature controller complies with international standards IEC 584.1, ITS90, and IEC 751, ensuring consistent and accurate temperature measurement. It is widely applicable in industrial manufacturing, HVAC systems, laboratory instruments, water treatment processes, and other temperature-sensitive applications.

Robust PID control with versatile sensor compatibility. Flexible programmable control modes and alarm functions. Durable IP65/IP20 rated construction for panel mounting. Auto-tune feature for optimized PID adjustment. Clear 11-digit display for real-time monitoring.

Choose RS PRO 188-5167 for reliable, accurate temperature control in demanding industrial environments. Explore more in the Temperature Controllers category at EnvMart for comprehensive industrial process control solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports J, K, R, S, T, and L type thermocouples, as well as RTD sensors, allowing for versatile temperature measurement in industrial applications.

It operates within a temperature range of 0°C to 50°C, making it suitable for various industrial environments.

The panel mount dimensions are 96mm x 96mm with a panel depth of 76mm, facilitating easy integration into control panels.

The maximum supply voltage is 230V AC, and it has a maximum current rating of 7A, ensuring compatibility with standard industrial power systems.

It features multiple programmable control modes including ON/OFF, P, PI, PD, and full PID modes for flexible temperature management.

It has an 11-digit display that provides clear and continuous monitoring of temperature parameters.

The front panel has an IP65 rating, while the rear is rated IP20, providing protection suitable for industrial environments.

The auto-tune/self-tune feature automatically adjusts the PID coefficients to optimize system performance, simplifying the setup process.

It offers 2 relay outputs, allowing for effective control of connected devices or systems.

It complies with international standards including IEC 584.1, ITS90, and IEC 751, ensuring accurate temperature measurement.

It uses screw terminal connections, providing secure and reliable electrical wiring.

This model is widely applicable in industrial manufacturing, HVAC systems, laboratory instruments, and water treatment processes.
