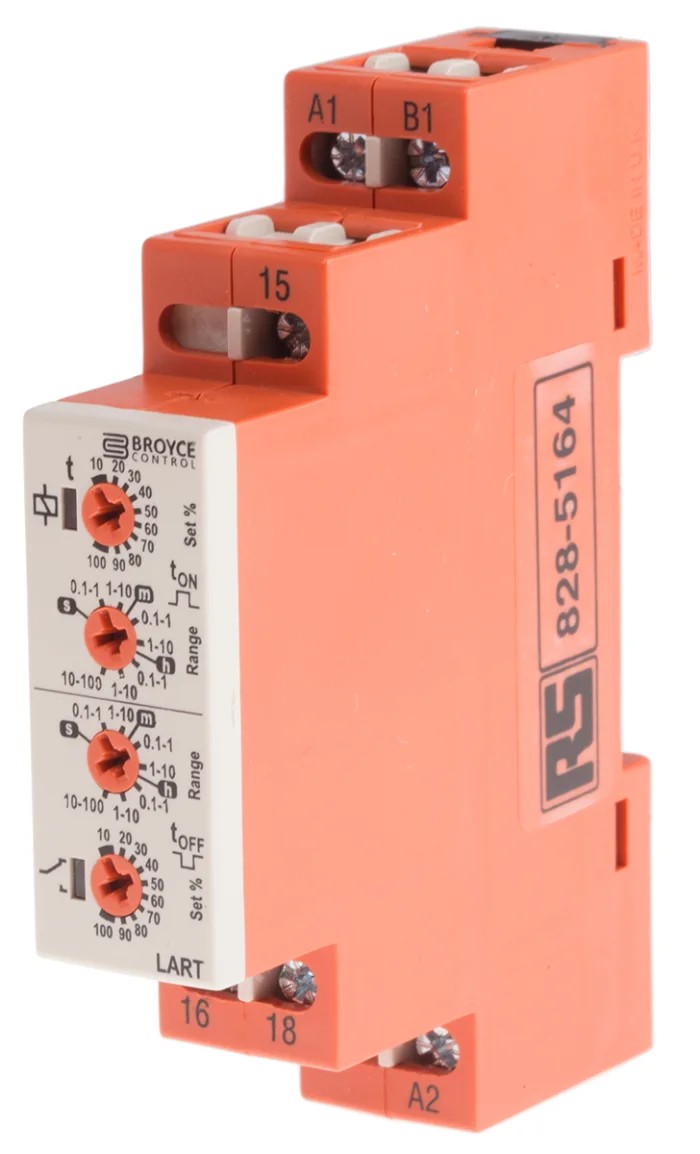

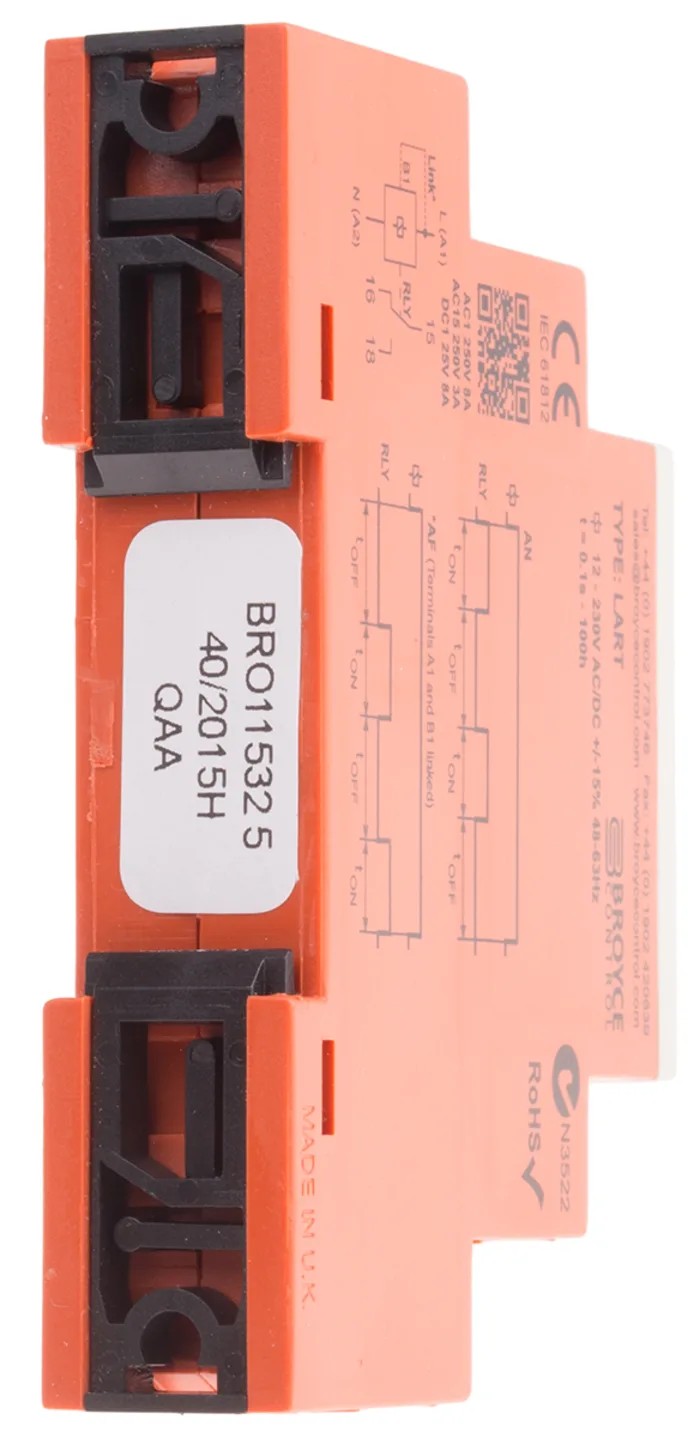

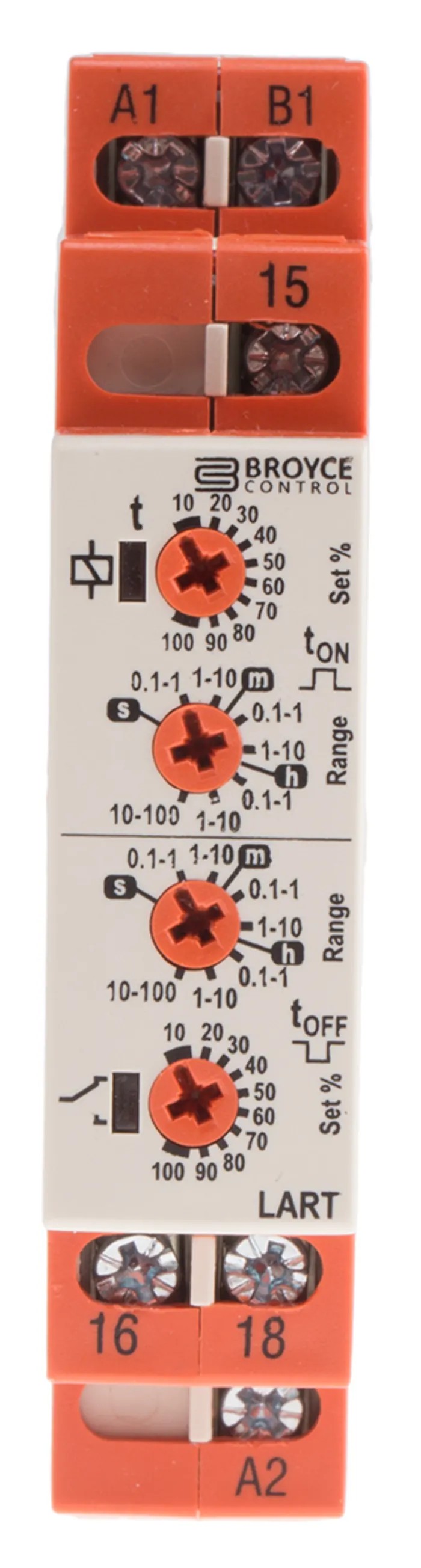

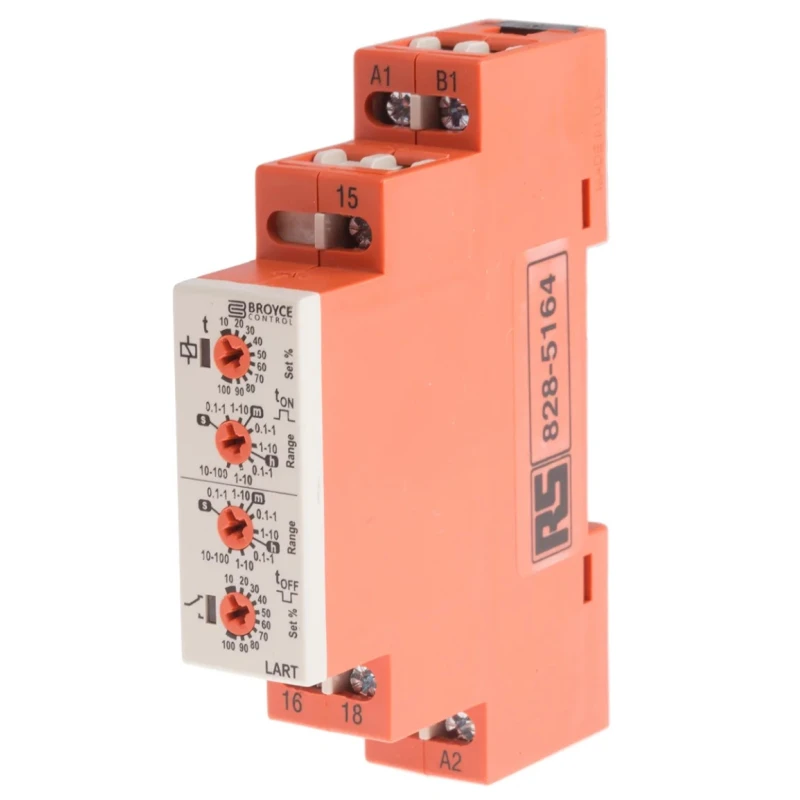

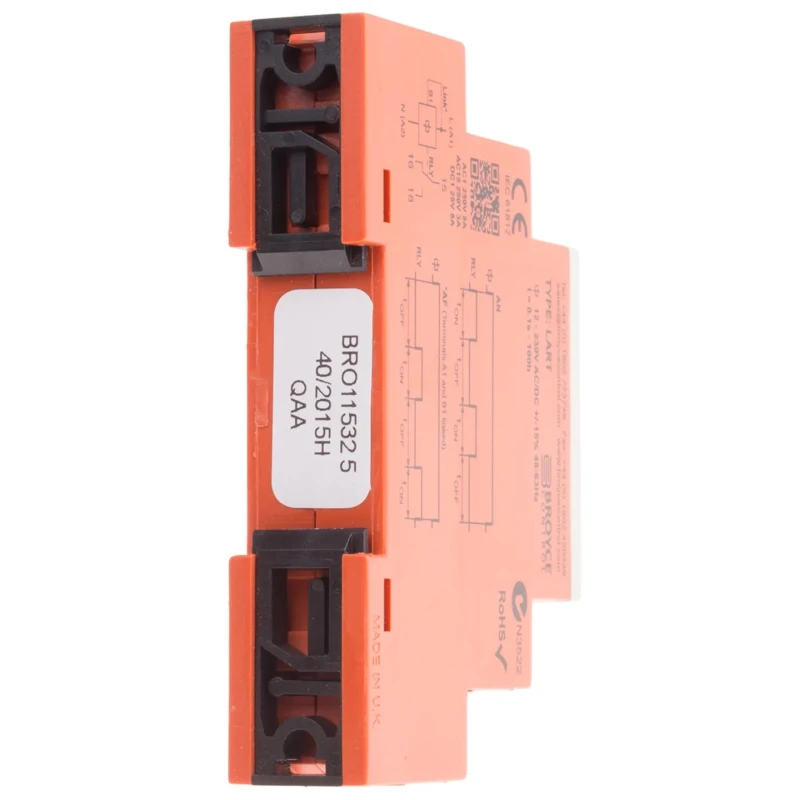

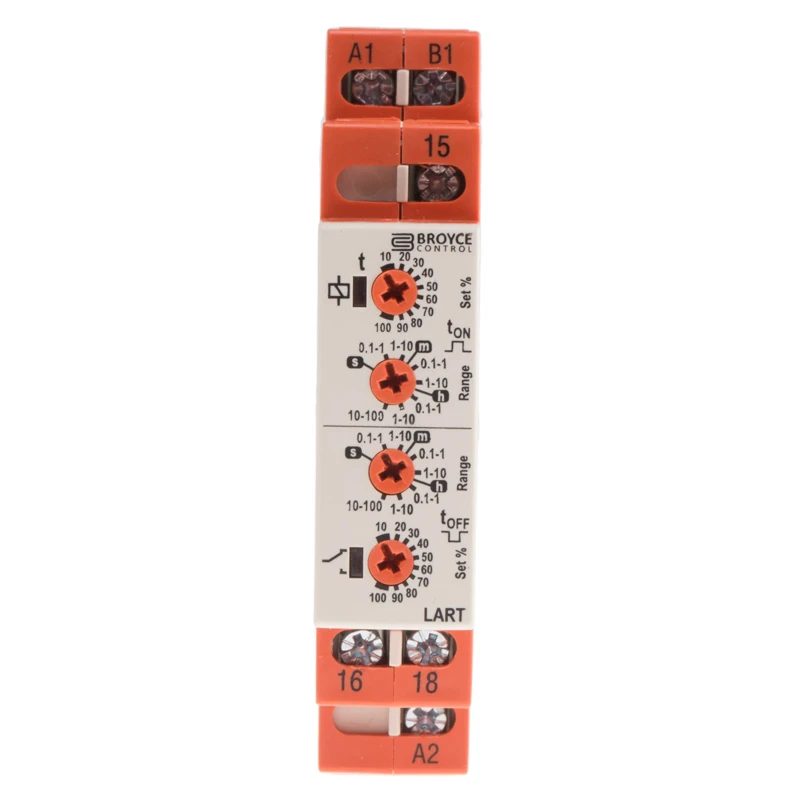

Broyce Control Multi-function DIN Rail Timer Relay 1-Contact SPDT 230 V DC/AC 24 V AC 0.1 s to 100 h LART 12-230V AC/DC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Broyce Control |
| Height | 66.5mm |
| Function | Multifunction |
| Length | 89mm |
| Model | LART 12-230V AC/DC |
| Mode | Multifunction |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | LART |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.1 s to 100 h |
| Terminal type | Screw |
| Standards/Approvals | UL, IEC, CE |
| Number of Contacts | 1 |
| Number of Timer Functions | 2 |
| Supply DC Voltage | 230 V dc |
| Timing Adjustment | Screwdriver Slot |
| Supply AC Voltage | 230, 24V ac |
Key Features
- This timer relay supports supply voltages from 24 VAC to 230 VAC and 12 VDC to 230 VDC.
- It features two timer functions with fine adjustment of ON and OFF time ranges.
- Compact DIN rail mount design with a width of 17.5 mm ensures space efficiency.
- Green and red LEDs indicate supply/timing status and relay output respectively.
- Constructed for industrial applications including textiles, chemical, mining, and food processing industries.
- Operating temperature ranges from -20°C to 60°C for reliable performance in harsh environments.
- Certified to UL, IEC, and CE standards ensuring quality and safety.
- Screw terminal type enables easy and secure wiring installation.
Product Description
Broyce Control LART 12-230V AC/DC multi-function DIN Rail timer relay is a compact, microprocessor-based device designed for precise timing control in industrial automation systems. Boasting a single 1-contact SPDT relay output, it supports multifunctional timing with two programmable timer functions over a wide range from 0.1 seconds to 100 hours. The device is engineered for straightforward configuration with an intuitive rotary switch and screwdriver slot for timing adjustments.
The timer relay supports a broad supply voltage range of 24 VAC to 230 VAC and 12 VDC to 230 VDC, accommodating diverse electrical systems. LED indicators provide clear feedback on power status and relay operation, enhancing usability in complex control environments.
Measuring 89 mm in length, 66.5 mm in height, and 17.5 mm in width, it is designed for DIN rail mounting, optimizing panel space. The robust screw terminal connections ensure firm and reliable wiring. The relay operates reliably within an ambient temperature range from -20°C to 60°C, suitable for demanding industrial conditions.
This timer relay complies with internationally recognized standards including UL, IEC, and CE, reflecting its quality and safety credentials. Its high performance and precise timing capabilities make it ideal for applications in textiles, chemical industry, mining, irrigation, raw material handling, and food and beverage processing.
This device offers separate ON and OFF time adjustments for fine control. The multifunctional timer provides seven selectable time ranges to suit various process requirements. Its compact and durable design suits rugged industrial environments.
Green LED indicates supply and timing status, while a red LED shows relay activation. The unit meets IP20 standards for terminal protection. Explore more Timer Relays and automation components on EnvMart to enhance your industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports supply voltages from 24 VAC to 230 VAC and 12 VDC to 230 VDC.
The timer relay features a timing range from 0.1 seconds to 100 hours, allowing for versatile timing applications.
This model has a single 1-contact SPDT (Single Pole Double Throw) relay configuration.
It measures 89 mm in length, 66.5 mm in height, and 17.5 mm in width, making it compact for DIN rail mounting.
Timing adjustments are made using a screwdriver slot, allowing for precise control of ON and OFF times.
The operating temperature range is from -20°C to 60°C, suitable for various industrial environments.
It is certified to UL, IEC, and CE standards, ensuring quality and safety in its operation.
It is designed for industrial applications including textiles, chemical processing, mining, and food processing.
This model features two programmable timer functions, enhancing its versatility in control applications.
It uses screw terminals for easy and secure wiring installation.
It features green and red LEDs that indicate supply/timing status and relay output, respectively.
The timer relay is manufactured in the United Kingdom.
