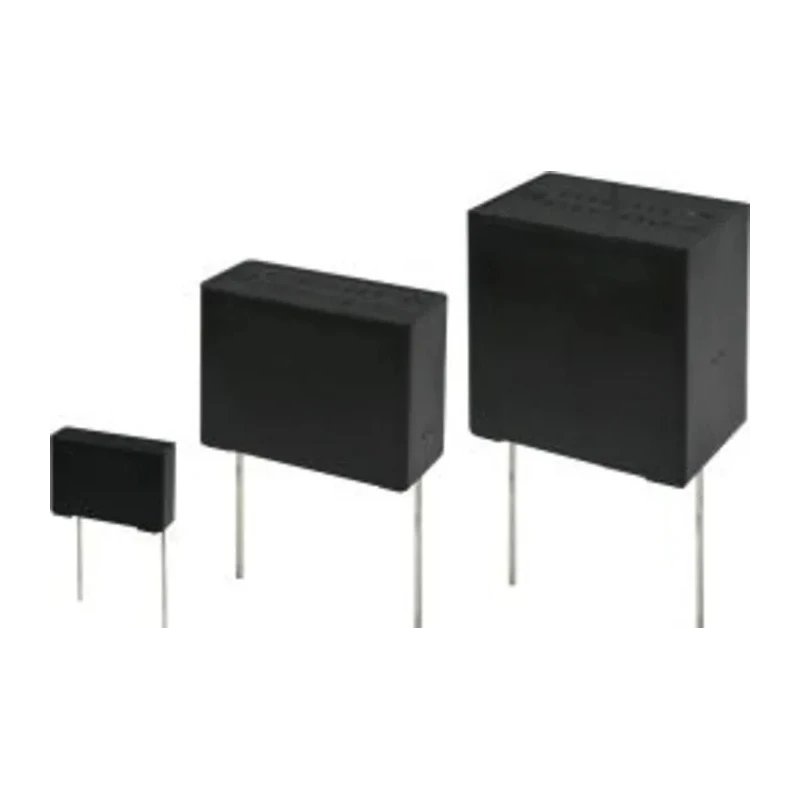

Panasonic ECQUA Film Capacitor X2, 470 nF ±10%, 275V AC, Through Hole Mount ECQUAAF474TA

Free Delivery in India | Lowest Global Shipping Charges

Panasonic ECQUA Film Capacitor X2, 470 nF ±10%, 275V AC, Through Hole Mount ECQUAAF474TA

Name: Panasonic ECQUA Film Capacitor X2, 470 nF ±10%, 275V AC, Through Hole Mount ECQUAAF474TA
Brand: Panasonic
SKU: 249667
Price: 20.22 USD
Availability: InStock



Category Passive Components Brand Panasonic Condition New

Specifications

Country of Origin	China
Brand	Panasonic
Height	15mm
Length	26mm
Model	ECQUAAF474TA
Packaging	Bag
Width	8.5mm
Mount Type	Through Hole
Series	ECQUA
Maximum Operating Temperature	110°C
Tolerance	±10 %
Capacitance	470nF
Minimum Operating Temperature	-40°C
Terminal type	Solder
Dissipation Factor	0.1%
Lead Length	4mm
Rated AC Voltage	275V ac
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200
Suppression Class	X2
High humidity resistance (THB test	85 °C, 85 %, 240 V.AC, 1000 h )

Key Features

Provides reliable interference suppression for automotive applications.
Features high safety with integrated safety functions.
Flame-retardant plastic case and non-combustible resin housing ensure fire safety.
Operates over a wide temperature range from -40°C to 110°C.
Meets automotive standard AEC-Q200 and international standards CSA E60384-14, EN 60384-14, UL 60384-14.
Lead pitch of 22.5 mm with 4 mm lead length for stable solder terminals.
Exhibits high humidity resistance validated by THB testing at 85°C, 85% RH, 240V AC for 1000 hours.
High thermal shock resistance capable of withstanding 1000 cycles between -40°C and 85°C.

Product Description

Panasonic ECQUAAF474TA is a film capacitor of the ECQUA series designed for interference suppression in automotive and industrial electronics. It has a capacitance of 470 nF with a tolerance of ±10%, rated for 275V AC voltage. This through hole mounted capacitor features a flame-retardant plastic case and non-combustible resin ensuring high safety compliance.

Operating reliably across a temperature range from -40°C to 110°C, it meets rigorous automotive standard AEC-Q200 as well as CSA E60384-14, EN 60384-14, and UL 60384-14 certifications, making it suitable for high-reliability applications. Its lead pitch of 22.5 mm and solder terminal type support secure mounting on circuit boards.

The capacitor demonstrates excellent resistance to high humidity conditions, as validated by the THB test (85°C, 85% relative humidity, 240 V AC for 1000 hours), and it withstands harsh thermal shock cycling from -40°C to 85°C for 1000 cycles.

Additional features include a low dissipation factor of 0.1%, lead diameter of 0.8 mm, and dimensions of 26 mm length, 15 mm height, and 8.5 mm width. These attributes make it ideal for interference suppression applications in automotive environments.

This product supports industrial, automotive, and electronics manufacturing use cases where high safety and stability under environmental stress are critical. Reliable interference suppression for automotive electronics.

Flame-retardant, non-combustible resin housing. Wide operational temperature from -40°C to 110°C. Meets strict automotive and international safety standards. High humidity and thermal shock resistance. Through hole mounting with stable solder terminals.

Low dissipation factor ensures efficient performance. Explore more film capacitors and electronic components with Panasonic product lines at EnvMart for quality industrial and automotive applications.
