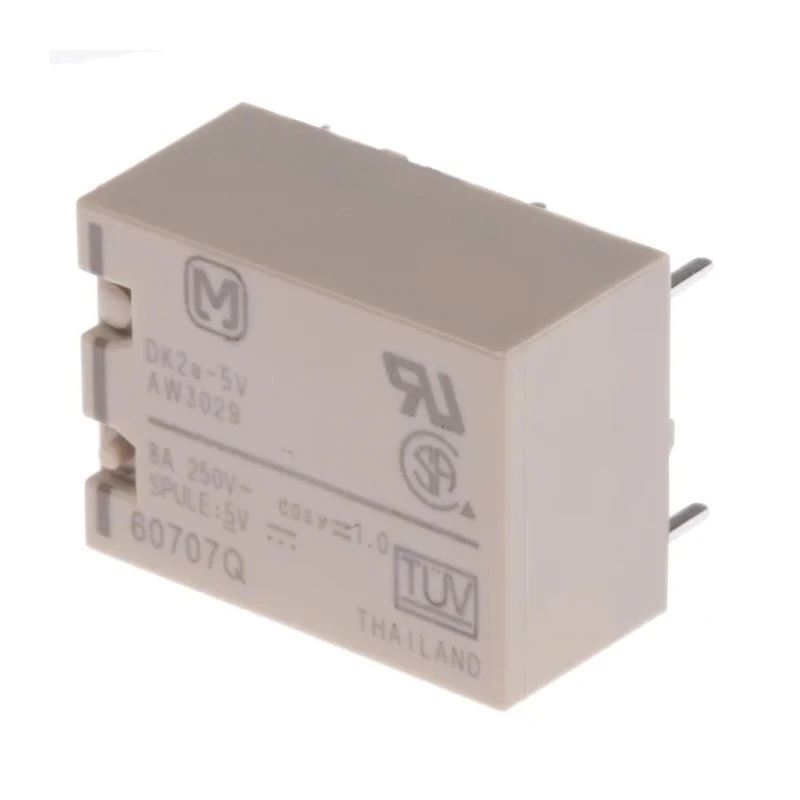

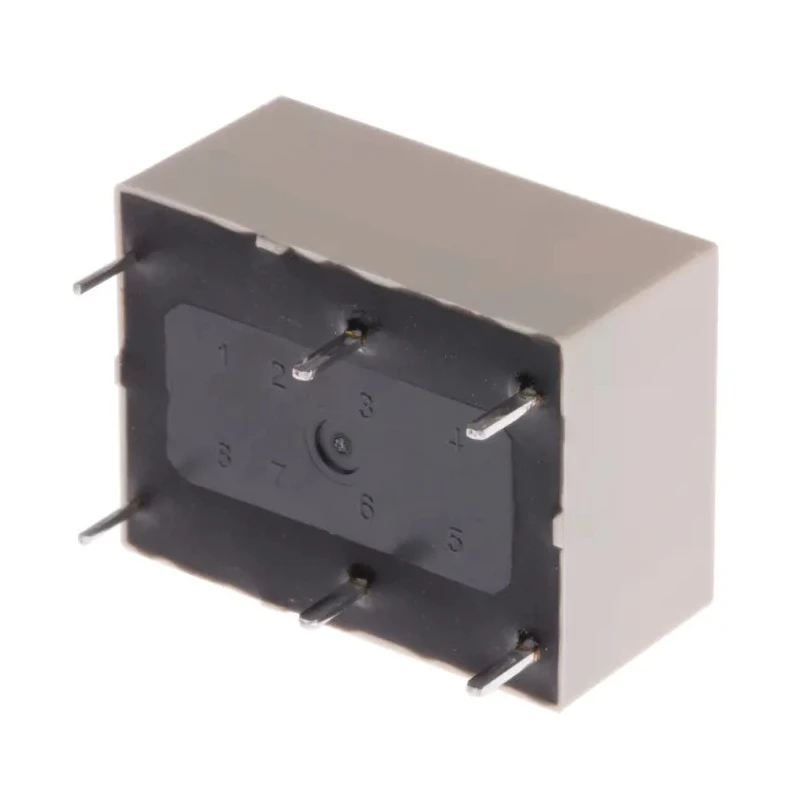

Panasonic PCB Power Relay 5V DC Coil 8A Switching Current DPST DK2A-5V

Panasonic DK2A-5V PCB Power Relay is a miniature relay designed for efficient and reliable power switching applications. Featuring a 5V DC coil and DPST contact configuration, this relay can switch up to 8A current at 125V AC or DC, making it suitable for a wide range of electrical and automation systems.

This relay offers high sensitivity with a nominal coil power of 200 mW, and a sealed construction which protects internal mechanisms from environmental factors and allows automatic washing processes. Its silver alloy contact material provides low contact resistance of 30 milliohms, enhancing conductivity and reducing energy loss.

With the ability to operate in temperatures ranging from -40°C to 65°C, it performs reliably in various industrial, commercial, and home appliance applications including PLCs, temperature controllers, and timers. Its compact size (10mm height, 15mm width, 20mm length) makes it ideal for PCB mounting in constrained spaces.

Designed to meet CSA, UL, and VDE standards, the DK2A-5V relay from Panasonic ensures compliance and safety in demanding environments. Its coil resistance of 125 ohms enables stable actuation at low voltage, minimizing heat generation.

Compact PCB mount miniature power relay designed for reliable power switching. High sensitivity with 200 mW nominal operating coil power. Sealed construction allows for automatic washing and protects internal components.

Capable of switching up to 240W power with 125V DC and 125V AC voltages. Durable silver alloy contacts ensure low contact resistance of 30mΩ for efficient conduction. Suitable for industrial machinery, PLCs, temperature controllers, timers, and home appliances.

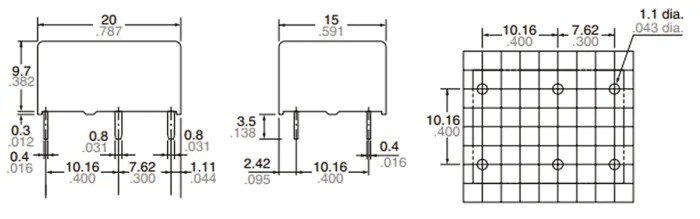

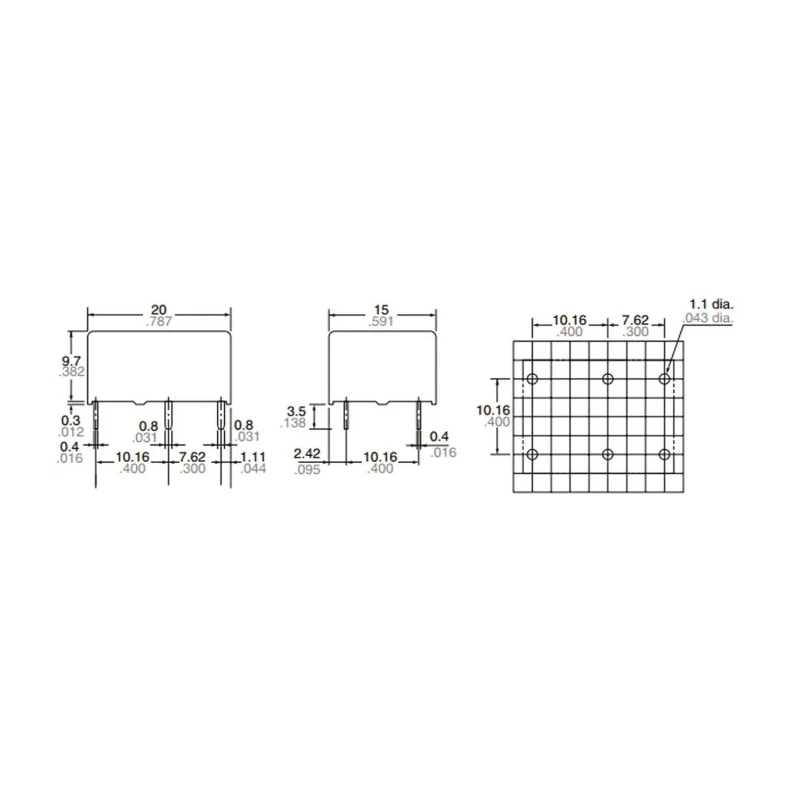

Wide operating temperature range from -40°C to 65°C for versatile environmental use. Coil resistance of 125Ω supports stable coil performance under 5V DC. Compact dimensions: Height 10mm, Width 15mm, Length 20mm for space-saving PCB layouts.

This Panasonic DK2A-5V PCB Power Relay is an essential component for Power Relay applications in industrial automation, electrical control panels, manufacturing equipment, and residential electronic devices. Its high switching capacity and compact size deliver robustness and efficiency in circuit designs.
