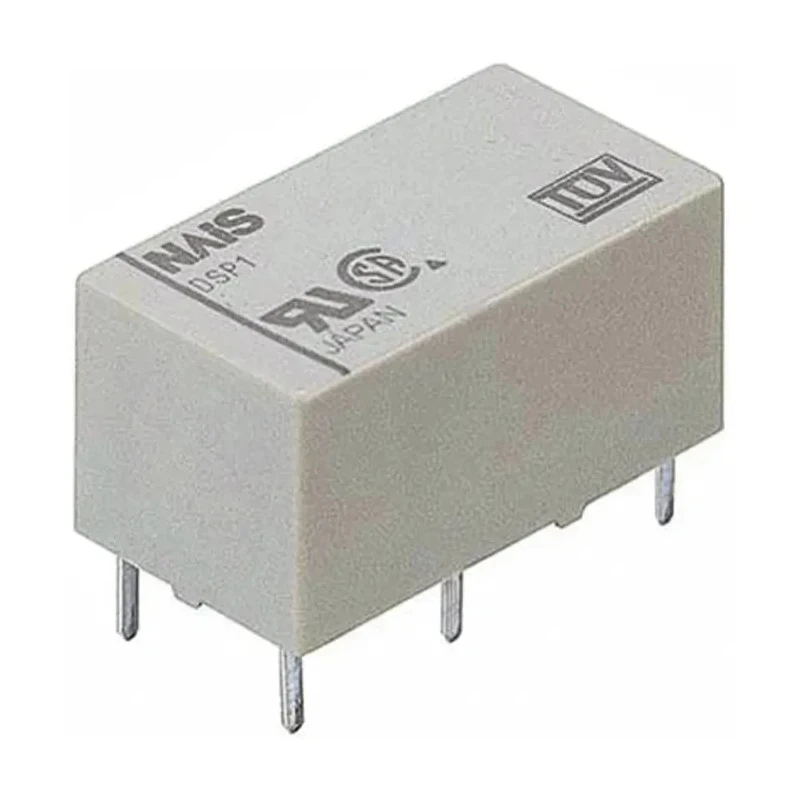

Panasonic PCB Power Relay 12V DC Coil 5A Switching Current SPDT DSP1-L2-DC12V-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 10.5mm |
| Length | 20.2mm |
| Model | DSP1-L2-DC12V-F |
| Width | 11mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | DSP1A |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 30mΩ |
| Standards/Approvals | VDE, UL, CSA |
| Coil Resistance | 480Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 300mW |
Key Features
- Features a 12V DC coil voltage for reliable operation.
- Single Pole Double Throw (SPDT) contact configuration for versatile switching.
- Switching current rated at 5 amperes for moderate load applications.
- Compact dimensions of 20.2 mm length, 11 mm width, and 10.5 mm height.
- High-quality silver alloy contact material ensures low contact resistance of 30 milliohms.
- Coil resistance is 480 ohms with a coil power consumption of 300 milliwatts.
- Operating temperature range from -40°C to 65°C for industrial environments.
- Sealed construction permits automatic washing and high breakdown voltage reliability.
Product Description
Panasonic DSP1-L2-DC12V-F is a high-performance PCB Power Relay designed with a 12V DC coil and a 5A switching current capability. It features a Single Pole Double Throw (SPDT) contact configuration and a compact form factor measuring 20.2 mm in length, 11 mm in width, and 10.5 mm in height. This relay delivers high sensitivity and a high breakdown voltage, ensuring reliable switching in demanding electrical and industrial applications.
The sealed construction of this relay supports automatic washing processes, making it suitable for manufacturing environments. The contact material is made of silver alloy, providing low contact resistance of 30 milliohms, while coil resistance stands at 480 ohms with a coil power dissipation of 300 milliwatts.
Operating safely in temperatures ranging from -40°C to 65°C, the DSP1-L2-DC12V-F relay meets international standards including VDE, UL, and CSA, assuring compliance and durability. Its switching voltage ranges up to 125V AC and 125V DC, making it versatile for various electronic circuits.
This miniature relay is suited for industrial automation, office and industrial electronic devices, measuring instruments, temperature controllers, and programmable logic controllers (PLCs). Its DIL format supports easy PCB mounting and integration into multiple applications requiring reliable power relay solutions.
12V DC coil voltage for stable activation. SPDT contact configuration for flexible circuit design. 5A rated switching current suitable for moderate loads. Compact size for space-efficient PCB layout. Silver alloy contacts minimize resistance and wear.
Wide operating temperature range for harsh environments. Sealed design enables automatic washing and durability. Compliant with VDE, UL, and CSA certifications ensuring safety. Applications include industrial automation and instrumentation.
High breakdown voltage for reliable switching performance. Explore this and other Power Relays in the Electronics & Electricals category at EnvMart for your industrial and manufacturing automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC, ensuring reliable activation.
This relay has a maximum switching current rated at 5 amperes, suitable for moderate load applications.
The dimensions of this relay are 20.2 mm in length, 11 mm in width, and 10.5 mm in height.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching options.
The contact material is made of silver alloy, which provides low contact resistance of 30 milliohms.
The operating temperature range is from -40°C to 65°C, making it suitable for industrial environments.
The coil resistance of this relay is 480 ohms, with a coil power consumption of 300 milliwatts.
It meets international standards including VDE, UL, and CSA, ensuring compliance and safety.
The maximum switching voltage is 125V AC and 125V DC, providing versatility for various applications.
This model is designed for PCB mounting, featuring PCB pins for easy integration into electronic circuits.
This relay is suitable for applications in industrial automation, office and industrial electronic devices, and programmable logic controllers (PLCs).
The sealed construction allows for automatic washing processes and enhances the relay's reliability in demanding environments.
