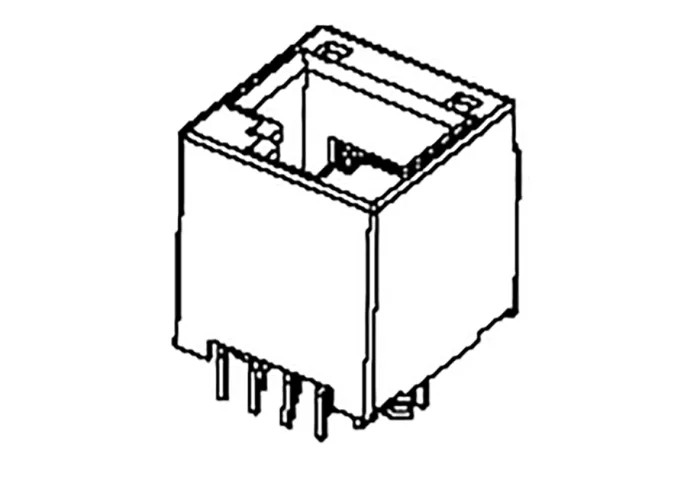

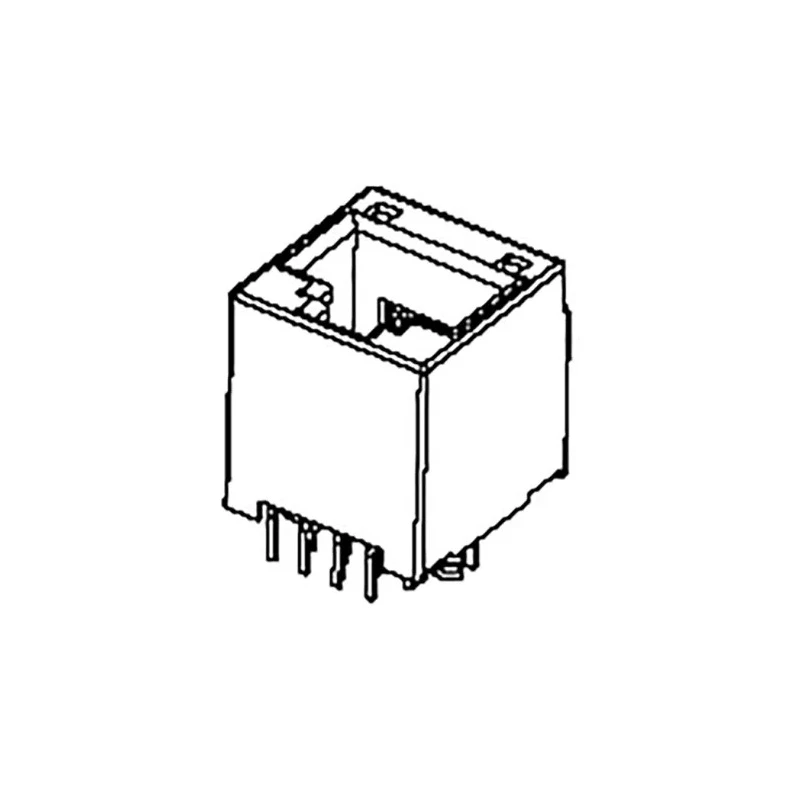

Molex 95503 Series RJ45 Connector Female, Through Hole, Cat3 Unshielded Vertical 1 Port 8 Way RJ45
Specifications
| Country of Origin | Ireland |
|---|---|
| Brand | Molex |
| Orientation | Vertical |
| Length | 15.24mm |
| Model | RJ45 |
| Depth | 15.08mm |
| Connector Type | Modular Jack |
| Number Of Ways | 8 |
| Width | 15.7mm |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | 95503 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Unshielded |
| Contact Plating | Gold over Nickel Palladium |
| Connector Gender | Female |
| LAN Category | Cat3 |
| Ethernet Connector Type | RJ45 |
Key Features
- Features a female RJ45 modular jack suitable for vertical top entry through hole mounting.
- Supports Cat3 LAN category with 1 port and 8 ways for efficient data transmission.
- Unshielded design with gold-over-nickel-palladium plated copper alloy contacts ensures durable signal integrity.
- Operates in temperature range from -40°C to 85°C suitable for varied environments.
- Solder termination type facilitates sturdy and reliable mounting on printed circuit boards.
- No magnetic or LED features included for simpler electrical characteristics.
- Manufactured in Ireland ensuring high-quality production standards.
Product Description
Molex RJ45 RJ45 Connector Female, Through Hole, Cat3 Unshielded Vertical 1 Port 8 Way is a professional-grade Ethernet connector specifically engineered for industrial and telecommunications networking applications. Its 8-way female modular jack provides a secure and reliable interface for LAN devices compliant with Category 3 specifications.
Designed for through-hole PCB mounting with vertical orientation, this connector features robust contacts made of copper alloy with gold plating over nickel palladium to assure excellent electrical conductivity and corrosion resistance. Its operating temperature range from -40°C to 85°C allows deployment in a wide array of environments including industrial equipment, telecommunications hardware, and embedded systems.
The compact size with 15.24 mm length, 15.7 mm width, and 15.08 mm depth optimizes PCB board layout while maintaining mechanical stability. The solder termination type guarantees reliable mechanical and electrical connection on your printed circuit boards without the complexity of surface mount technologies.
This connector carries no hazardous area certifications or additional shielding, making it suitable for standard indoor electronic applications where unshielded Cat3 networking is sufficient. Absence of magnetic components and LED indicators simplifies the design and reduces potential interference.
This connector series 95503 represents a standard in networking connectivity solutions engineered for durability and performance. Features a female RJ45 modular jack suitable for vertical top entry through hole mounting.
Supports Cat3 LAN category with 1 port and 8 ways for efficient data transmission. Unshielded design with gold-over-nickel-palladium plated copper alloy contacts ensures durable signal integrity. Operates in temperature range from -40°C to 85°C suitable for varied environments.
Compact dimensions: length 15.24 mm, width 15.7 mm, depth 15.08 mm for space-saving PCB designs. Solder termination type facilitates sturdy and reliable mounting on printed circuit boards. No magnetic or LED features included for simpler electrical characteristics.
Manufactured in Ireland ensuring high-quality production standards.
Ideal for industrial, telecommunications, and commercial electronic equipment where high-quality unshielded Ethernet connections are required. Explore more Molex Ethernet Connectors and accessories on EnvMart for comprehensive networking solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This RJ45 connector operates within a temperature range of -40°C to 85°C, making it suitable for various environments.
The Molex 95503 RJ45 connector features 1 port.
It uses a solder termination type, facilitating a sturdy and reliable mounting on printed circuit boards.
The dimensions of this RJ45 connector are 15.24 mm in length, 15.7 mm in width, and 15.08 mm in depth.
The contacts are made of copper alloy with gold plating over nickel palladium to ensure good electrical conductivity and corrosion resistance.
This connector is unshielded, which is suitable for standard indoor electronic applications requiring Cat3 networking.
The orientation of this RJ45 connector is vertical, designed for top entry through hole mounting.
It supports the Cat3 LAN category, making it suitable for basic Ethernet networking applications.
This RJ45 connector is manufactured in Ireland, ensuring high-quality production standards.
No, this connector does not include any magnetic components or LED indicators, simplifying its electrical characteristics.
This connector is suitable for industrial, telecommunications, and commercial electronic equipment that requires unshielded Ethernet connections.
The series designation of this RJ45 connector is 95503, which represents a standard in networking connectivity solutions.
