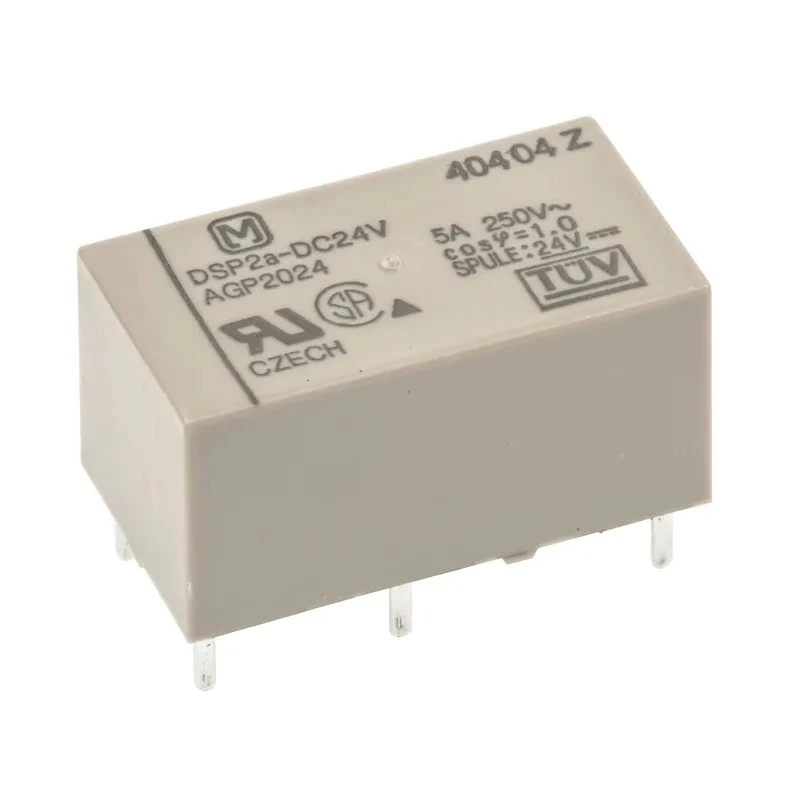

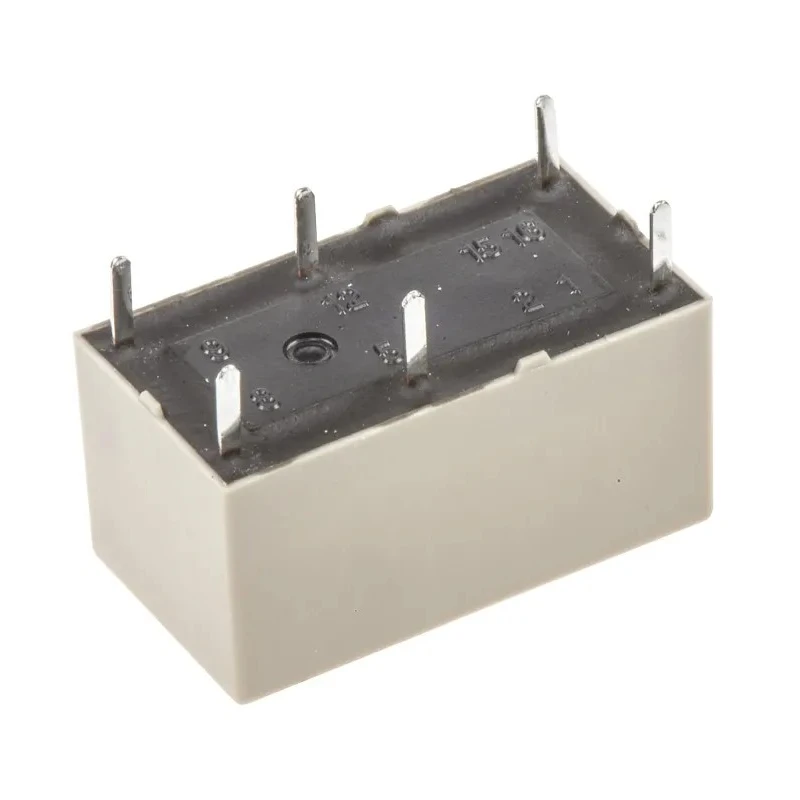

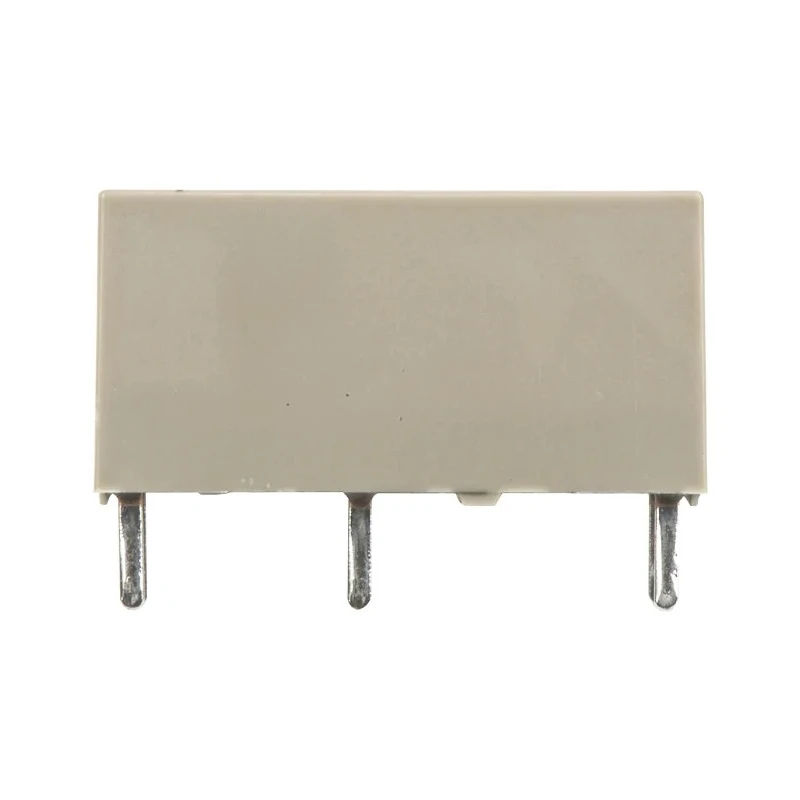

Panasonic PCB Power Relay 24V DC Coil, 5A Switching Current, DPST DSP2A24D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 10.5mm |
| Length | 20.2mm |
| Model | DSP2A24D |
| Width | 11mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | DSP |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Through Hole |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 300mW |
Key Features
- Operates with a 24V DC coil and consumes 300mW coil power.
- Rated switching current of 5A and switching power capacity of 1.25kVA.
- Contact configuration is DPST with gold plated contacts for optimal conductivity.
- Suitable for switching AC voltage up to 250V and DC voltage up to 30V.
- Coil resistance of 1.9kΩ ensures high sensitivity and low coil current.
- Operational temperature range from -40°C to 60°C for varied environments.
- Sealed construction allows automatic washing and ensures durability.
Product Description
Panasonic DSP2A24D PCB Power Relay features a 24V DC coil voltage and a 5A switching current with DPST contact configuration, specifically designed for PCB mount applications in industrial automation and electronic devices.
This relay from the DSP series offers a high contact rating combined with excellent switching capability, ensuring reliable operation in diverse applications such as temperature controllers, measuring instruments, programmable logic controllers (PLCs), and office electronic equipment.
Constructed with gold-plated contacts and a sealed design, this relay supports automatic washing processes. The sealed miniature package measures 10.5mm in height, 11mm in width, and 20.2mm in length, making it suitable for space-constrained PCB layouts.
The coil resistance of 1.9kΩ provides high sensitivity and low power consumption at 300mW coil power. It is capable of switching electrical loads up to 5A and 1.25kVA, supporting DC voltages up to 30V and AC voltages up to 250V.
This relay operates effectively within a broad temperature range from -40°C to 60°C, making it suitable for harsh industrial environments. The through-hole terminal mounting ensures a secure and robust installation on printed circuit boards.
Operates with a 24V DC coil and 300mW coil power consumption. Miniature size for PCB mounting: 10.5mm H x 11mm W x 20.2mm L. High switching current capacity of 5A and switching power of 1.25kVA. DPST contact configuration with gold-plated contacts for high conductivity and durability.
Capable of switching voltages up to 250V AC and 30V DC. Coil resistance of 1.9kΩ provides excellent sensitivity. Wide operating temperature range from -40°C to 60°C. Sealed construction suitable for automatic washing and high reliability.
This Panasonic DSP2A24D Power Relay is ideal for use in electronics manufacturing, automation systems, HVAC controls, industrial machinery, and commercial electronic devices. Its reliable performance and durable build make it a preferred choice for engineers and technicians.
Explore more PCB Power Relays and electronic components from Panasonic at EnvMart for your industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
It has a maximum switching current of 5A.
This model features a DPST (Double Pole Single Throw) contact configuration.
The relay measures 10.5mm in height, 11mm in width, and 20.2mm in length.
It is capable of switching AC voltages up to 250V and DC voltages up to 30V.
The coil power consumption is 300mW.
This relay operates effectively within a temperature range from -40°C to 60°C.
The contacts are made of gold-plated material for optimal conductivity.
It supports PCB (Printed Circuit Board) mounting with through-hole terminals.
The coil resistance is 1.9kΩ, ensuring high sensitivity and low coil current.
Yes, it is RoHS compliant.
It is suitable for applications in industrial automation, temperature controllers, and electronic devices.
