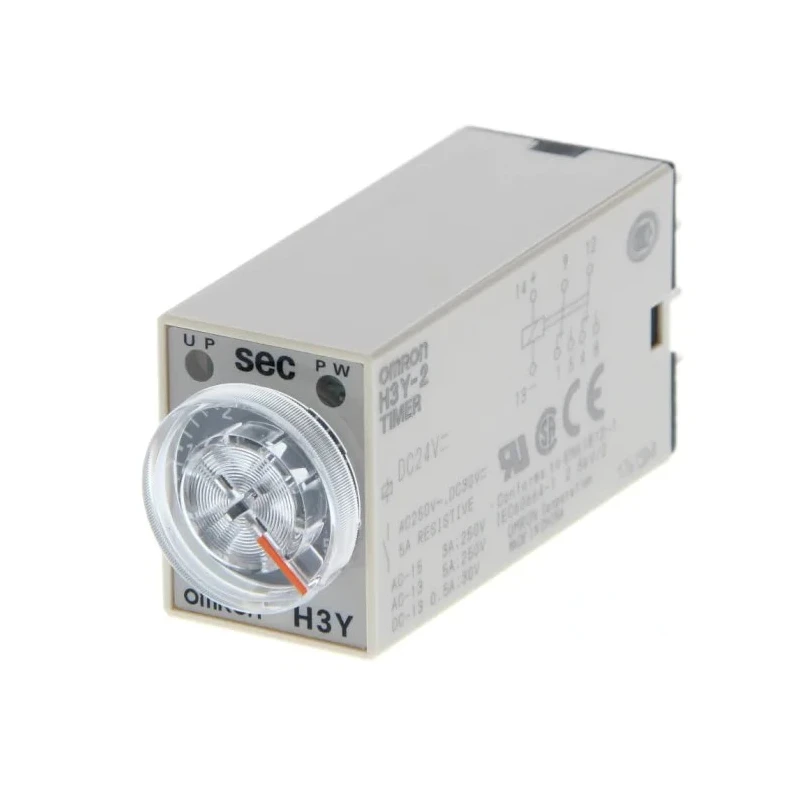

Omron DIN Rail Timer Relay 2-Contact DPDT Switch, ON Delay, 125 V dc 200-230 V ac, 0.04 to 30 s, H3Y-2 AC200-230 30S

Omron H3Y-2 AC200-230 30S DIN Rail Timer Relay is a durable and precise timing device designed for industrial automation and control applications. Featuring a DPDT contact configuration and ON delay mode, this relay enables reliable on-off control with a timing range from 0.04 to 30 seconds. Its DIN rail mount design allows for straightforward integration into control panels and electrical enclosures.

Powered by either 125 V dc or 200-230 V ac supply voltages, it provides versatile operation suited for a range of industrial environments. The relay supports switching voltages up to 250 V and contact currents up to 5 A, making it appropriate for moderate power circuit control. The plug-in terminal design facilitates secure wiring and easier replacement or maintenance.

Designed for robustness, the timer relay is IP40 rated, protecting it against intrusion by solid objects greater than 1 mm. It operates reliably within a temperature range of -10°C to 50°C, suitable for various indoor industrial settings. Compliance with multiple international standards such as Lloyds, UL508, IEC60664-1, EN61812-1, and CSA C22.2 No. 14 ensures quality and safety.

Its compact form factor with dimensions of 56.6 mm height, 28 mm width, and 21.5 mm length saves valuable panel space while delivering precise and reliable time delay control. Typical applications include control panels, motor control systems, lighting systems, and general automation tasks where timing accuracy is crucial.

Designed for DIN rail mounting to enable simple installation. Operates within a time range of 0.04 to 30 seconds for versatile control. Suitable for switching voltages up to 250 V with a contact current rating of 5 A. Supports supply voltages of 125 V dc and 200-230 V ac for flexible power options.

Equipped with a knob for easy timing adjustment. Constructed with plug-in terminal type for efficient setup and maintenance. IP40 rated enclosure ensures protection against solid objects above 1 mm. Operating temperature range from -10°C to 50°C for broad application environments.

Complies with international standards including Lloyds, UL508, IEC60664-1, EN61812-1, and CSA C22.2 No. 14. Compact size for space-saving installations.

Omron's H3Y-2 timer relays are widely used in industrial automation, laboratory equipment, HVAC systems, manufacturing controls, and water treatment facilities for accurate and reliable timing functionality. Browse the Timer Relay category on EnvMart to explore similar reliable products from trusted brands including Omron.
