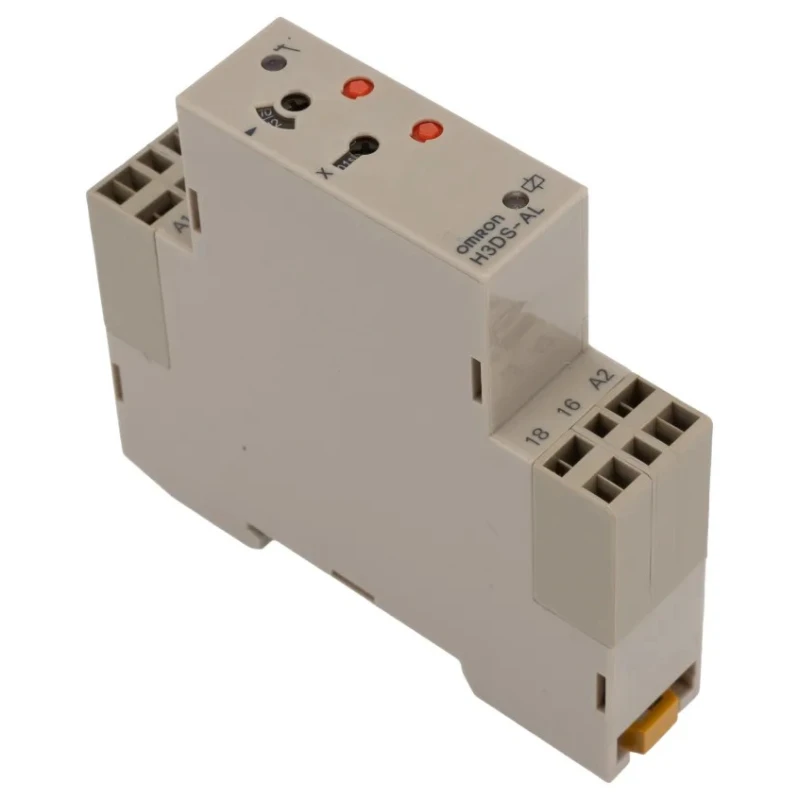

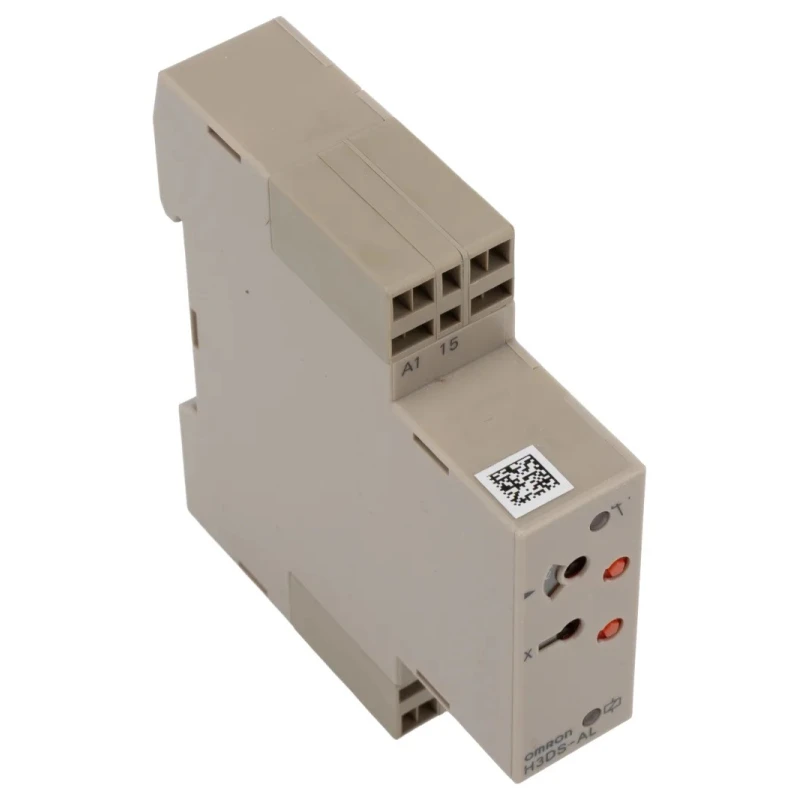

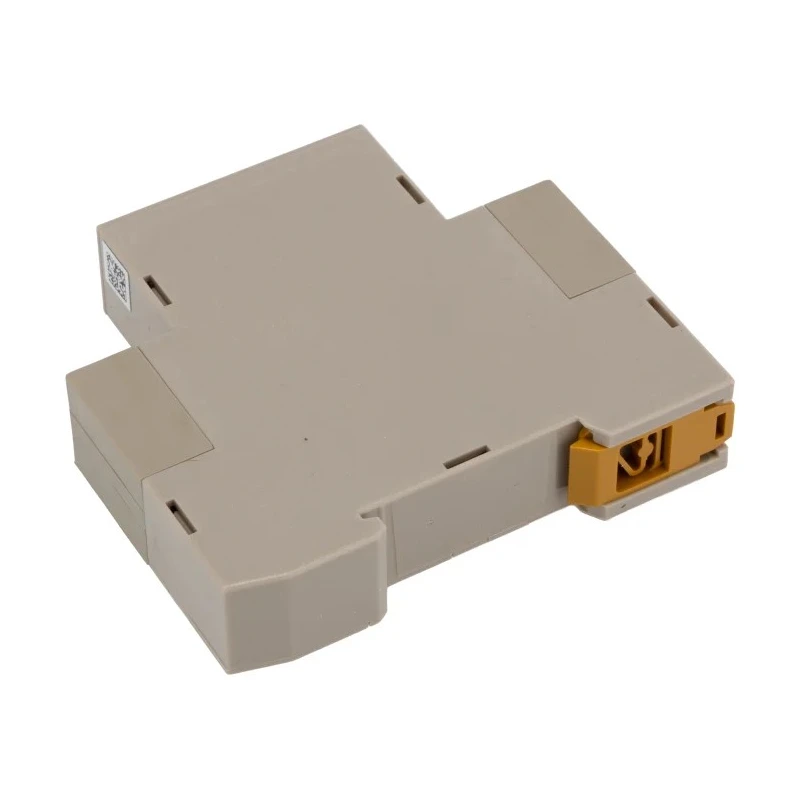

Omron DIN Rail Timer Relay 2 Contact SPDT, 24 to 48 V dc 230V ac, 0.1 s to 120 h, ON Delay Function H3DS

Free Delivery in India | Lowest Global Shipping Charges

Omron DIN Rail Timer Relay 2 Contact SPDT, 24 to 48 V dc 230V ac, 0.1 s to 120 h, ON Delay Function H3DS

Name: Omron DIN Rail Timer Relay 2 Contact SPDT, 24 to 48 V dc 230V ac, 0.1 s to 120 h, ON Delay Function H3DS
Brand: Omron
SKU: 243224
Price: 85.24 USD
Availability: InStock



Category Timer Relays Brand Omron Condition New

Specifications

Country of Origin	Indonesia
Brand	Omron
Height	74mm
Function	Timer, Valve
Length	17.5mm
Model	H3DS
IP Rating	IP30
Mode	ON Delay
Width	80mm
Mount Type	DIN Rail
Series	H3DS
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Minimum Operating Temperature	-10°C
Time Range	0.1 s to 120 h
Terminal type	Cage Clamp
Number of Contacts	2
Number of Timer Functions	1
Switching Voltage	250V ac
Contact Current	5A
Supply DC Voltage	24 to 48 V dc
Timing Adjustment	Dial
Supply AC Voltage	230, 24V ac

Key Features

This timer relay mounts easily on a DIN rail, ensuring straightforward installation.
It features 2 contacts with SPDT configuration to handle versatile switching needs.
The timing range extends from 0.1 seconds to 120 hours, allowing precise control.
Its contact current capacity is rated at 5A, supporting significant load operations.
Designed to operate within -10°C to 55°C, ensuring reliable performance in varied environments.
Screwless cage clamp terminals facilitate secure and easy wiring connections.
The compact dimensions (80mm width, 74mm height, 17.5mm length) fit standard enclosures.
Certified by IEC and UL standards for safety and conformity in industrial applications.

Product Description

Omron H3DS DIN Rail Timer Relay 2 Contact SPDT is designed for applications requiring accurate time-based control within industrial automation systems. Operable on supply voltages from 24 to 48 V dc and 230 V ac, it supports ON delay timing functions ranging from 0.1 seconds to 120 hours, enabling flexible sequential operations.

Mounted easily on standard DIN rails, this relay facilitates quick installation without the need for complex wiring, thanks to its screwless cage clamp terminals. Its SPDT contact configuration supports versatile switching with a contact rating of up to 5 amperes, ensuring dependable control of connected equipment.

The timer relay operates effectively across a temperature range of -10°C to 55°C and is compactly sized at 80mm (width) by 74mm (height) and 17.5mm (depth), fitting standard electrical enclosures. Its IP30 rating safeguards against solid ingress, suitable for indoor industrial environments.

Certified under IEC60947-5-1, UL508, and additional international standards, the relay meets stringent quality and safety requirements, making it efficient for automation in heating systems, production lines, and sequential machinery operations.

This relay is engineered for durable performance and long-term reliability in industrial control. Its ON delay dial adjustment allows precise timing setup according to system requirements. Versatile voltage acceptance makes it suitable for various industrial electrical infrastructures.

Compact DIN rail form factor integrates into existing control panels seamlessly. Contact current capacity of 5A supports a wide range of load devices. Screwless cage clamp terminals ensure quick and reliable electrical connection.

Omron timer relays deliver critical timing functions vital for automated system coordination, industrial manufacturing, and HVAC control. Browse the Timer Relays category at EnvMart for a broad range of industrial automation components.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The timing range of the Omron H3DS timer relay extends from 0.1 seconds to 120 hours, allowing for precise control in various applications.

This model features a Single Pole Double Throw (SPDT) contact configuration, providing versatile switching capabilities for different applications.

The timer relay operates on supply voltages of 24 to 48 V DC and 230 V AC, making it suitable for various industrial electrical systems.

The contact current capacity is rated at 5A, allowing it to handle significant load operations effectively.

The H3DS timer relay operates effectively within a temperature range of -10°C to 55°C, ensuring reliable performance in various environments.

The timing adjustment is made using a dial, allowing for easy and precise setup according to system requirements.

This model has compact dimensions of 80mm in width, 74mm in height, and 17.5mm in depth, fitting standard electrical enclosures.

It features screwless cage clamp terminals, which facilitate secure and easy wiring connections during installation.

The H3DS timer relay has an IP30 rating, which protects against solid ingress, making it suitable for indoor industrial environments.

This relay is certified under IEC60947-5-1 and UL508, ensuring compliance with safety and quality standards for industrial applications.

The timer relay is equipped with 2 contacts, allowing for multiple switching functions in its applications.

This model is designed for applications requiring accurate time-based control, such as in heating systems, production lines, and sequential machinery operations.
