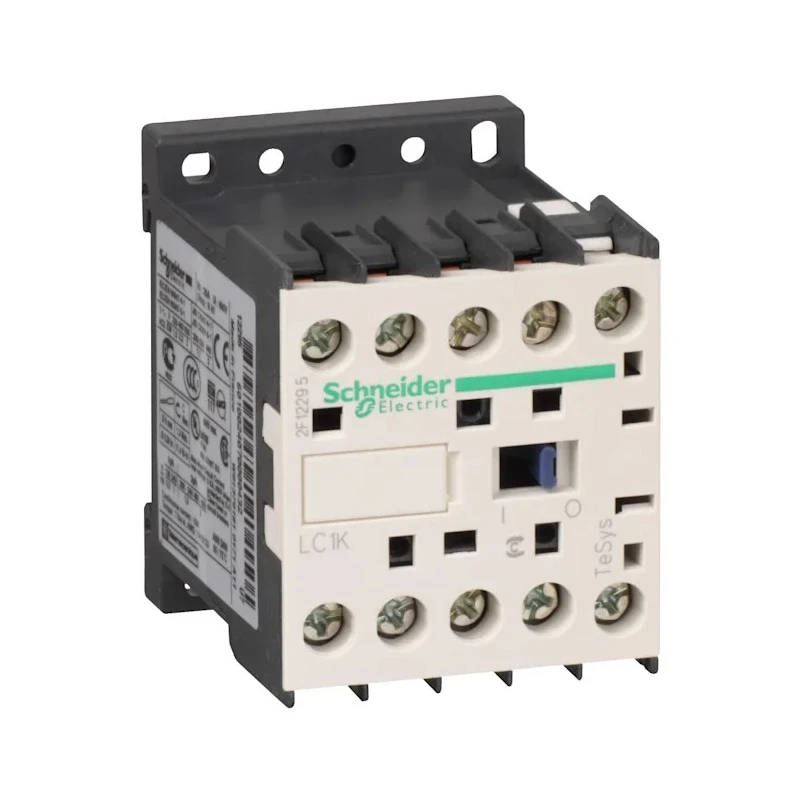

Schneider Electric Motor Control Contactor 16A, 3-Pole, 110V AC Coil, 3 NO, 690V AC LC1K1601F7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 58mm |
| Model | LC1K1601F7 |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1K |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 16A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 16A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Rated for 16 amps of contact current with a robust 3-pole design for efficient motor control.
- Operates at 110 volts AC coil voltage ensuring consistent performance.
- Configured with 3 normally open (NO) contacts suitable for heavy-duty switching.
- Supports a contact voltage of up to 690 volts AC for high voltage circuits.
- Mounts securely on DIN rails with screw terminal connections for ease of installation.
- Designed to operate within a temperature range of -25°C to 50°C suitable for various industrial environments.
- Includes 1 auxiliary contact configured as 1 normally closed (NC) for expanded control capabilities.
- Complies with CSA and UL standards ensuring high quality and safety compliance.
Product Description
Schneider Electric LC1K1601F7 is a high-quality motor control contactor designed specifically for industrial automation and electrical control applications. This contactor features a coil voltage of 110V AC and supports a contact voltage up to 690V AC, with a contact current rating of 16A, making it ideal for controlling motors and heavy electrical loads efficiently and safely.
The 3-pole configuration with three normally open contacts (3 NO) allows it to switch multiple circuits simultaneously. It also includes one auxiliary contact (1 NC) to facilitate additional control or signaling functions. The Contactor is designed for DIN rail mounting and employs sturdy screw terminal connections for secure and convenient wiring.
Operating in temperatures ranging from -25°C to 50°C, the LC1K1601F7 is suitable for a wide range of industrial environments. Its compact size with dimensions 58mm (L) × 45mm (W) × 57mm (D) ensures easy integration into control panels and distribution boards.
This product is part of the trusted Schneider Electric LC1K series, known for reliability, excellent quality, and ease of installation with available accessory options to extend functionality. Compliance with CSA and UL standards guarantees product safety and performance.
Typical applications include motor control in manufacturing, HVAC systems, industrial automation, conveyor systems, pumps, compressors, and other electrically driven equipment. The robust design supports rigorous industrial use and remote control operation.
Rated 16A contact current with 3-pole switching capability. 110V AC coil voltage allowing stable control circuit operation. Single auxiliary contact for enhanced control options. Compact dimensions and easy DIN rail mounting.
Complies with CSA and UL safety standards.
Schneider Electric LC1K1601F7 offers a dependable solution for industrial control gear requirements. Explore more Schneider Electric products and automation control gear on EnvMart for efficient electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 16A, making it suitable for controlling motors and heavy electrical loads efficiently.
This model operates at a coil voltage of 110V AC, ensuring stable control circuit operation.
It supports a maximum contact voltage of up to 690V AC, allowing it to be used in high voltage circuits.
This contactor features a 3-pole design, allowing it to switch multiple circuits simultaneously.
The dimensions of this model are 58mm in length, 45mm in width, and 57mm in depth, making it compact for easy integration.
It is designed for DIN rail mounting, which facilitates secure installation in control panels.
This model operates within a temperature range of -25°C to 50°C, suitable for various industrial environments.
Yes, it includes one auxiliary contact configured as normally closed (1 NC) for expanded control capabilities.
It complies with CSA and UL standards, ensuring high quality and safety compliance.
This model is designed for motor control applications in manufacturing, HVAC systems, and industrial automation.
It employs screw terminal connections, which provide secure and convenient wiring options.
The normal state configuration consists of three normally open (3 NO) contacts, suitable for heavy-duty switching.
