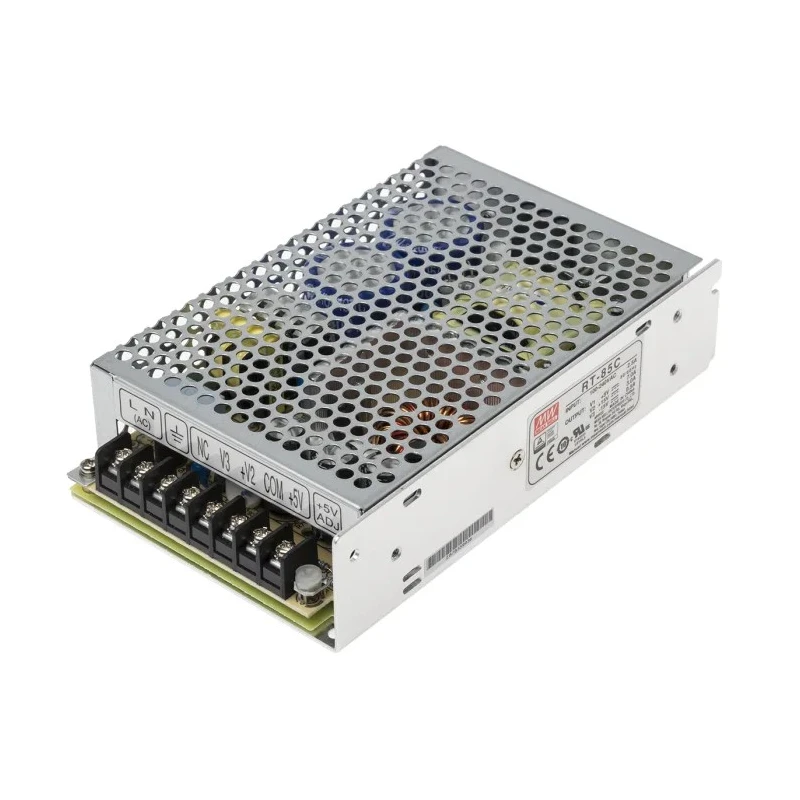

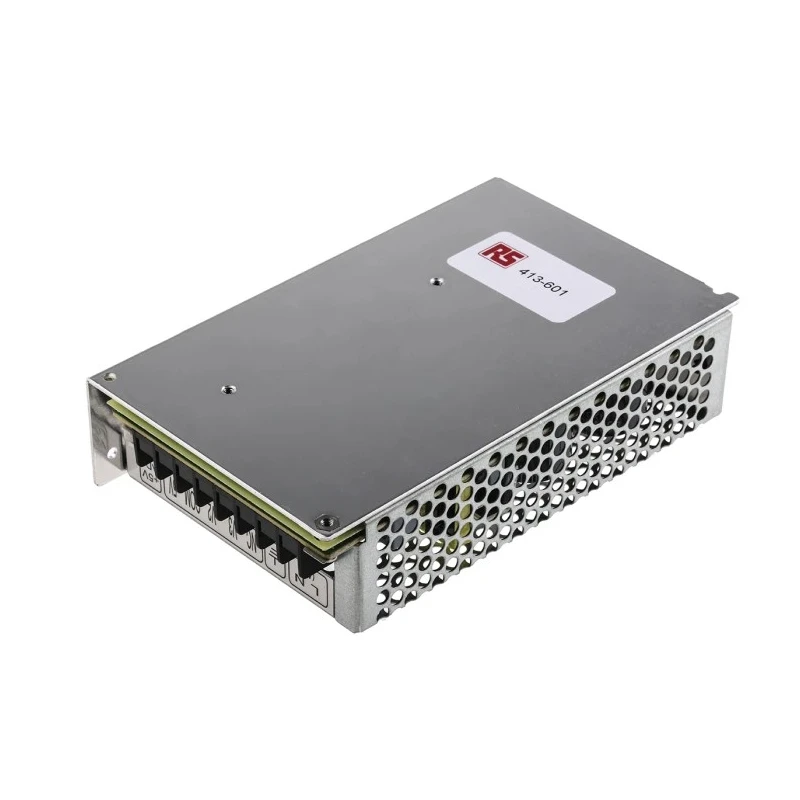

MEAN WELL High-Efficiency RT Series Triple Output Switching Power Supply 87.5W 3 Outputs 15V DC Chassis Mount RT-85C

MEAN WELL RT-85C is a high-efficiency switching power supply designed to deliver 87.5W of power with triple 15V DC outputs mounted on a chassis. It is suitable for various industrial and electronic applications requiring stable power, such as instrumentation, manufacturing, and automation systems.

The RT series features compact, low-profile construction with dimensions 159mm (L) x 97mm (W) x 38mm (D) and a weight of 600g, making it ideal for installations where space is limited. Operating reliably across a temperature range from -25°C to 70°C, it is well-suited for harsh environments.

High durability is ensured by the use of 105°C long-life electrolytic capacitors and a rated efficiency of 77% that reduces energy loss. Installation is simplified through screw terminal connections, and the unit includes a power-on LED indicator for easy status verification.

The RT-85C supports adjustable output voltage (±10%) on the primary output, providing flexibility to meet precise application requirements. Comprehensive protection features safeguard the unit against short circuits, overload, and overvoltage, enhancing system reliability.

It meets stringent safety and electromagnetic compatibility standards such as CSA C22.2 No. 62368-1, UL 62368-1, TUV BS EN/EN 62368-1, IS 13252(Part1)/IEC 60950-1, and others. Additionally, it complies with harmonic current regulations and EMC standards, ensuring minimal interference in sensitive electronic environments.

This power supply is suitable for industrial, laboratory, automation, and manufacturing applications that require dependable triple output DC power in a compact chassis module. Its robust design and certifications make it a dependable choice for demanding electrical environments.

This product is new, made in India, and part of the reliable MEAN WELL RT series. Explore more power supply solutions from MEAN WELL at EnvMart for your industrial and electronic needs.

Designed for high efficiency of 77% ensuring low power loss. Operates reliably between temperatures -25°C to 70°C for industrial environments. Compact dimensions of 159mm length, 97mm width, and 38mm depth for space-saving installations.

Features adjustable output voltage on output 1 with ±10% tolerance for precise control. Equipped with screw terminal connections for easy installation. Includes protection against short circuit, over-load, and over-voltage conditions.

Complies with multiple international standards and approvals including UL, CSA, TUV, and IS 13252. Power on LED indicator for operational status monitoring. Supports harmonic current compliance to EN 61000-3-2 and EMC meets EN 55022 Class B.

Rated for maximum input voltages of 370V DC and 264V AC with a minimum input of 88V AC.
