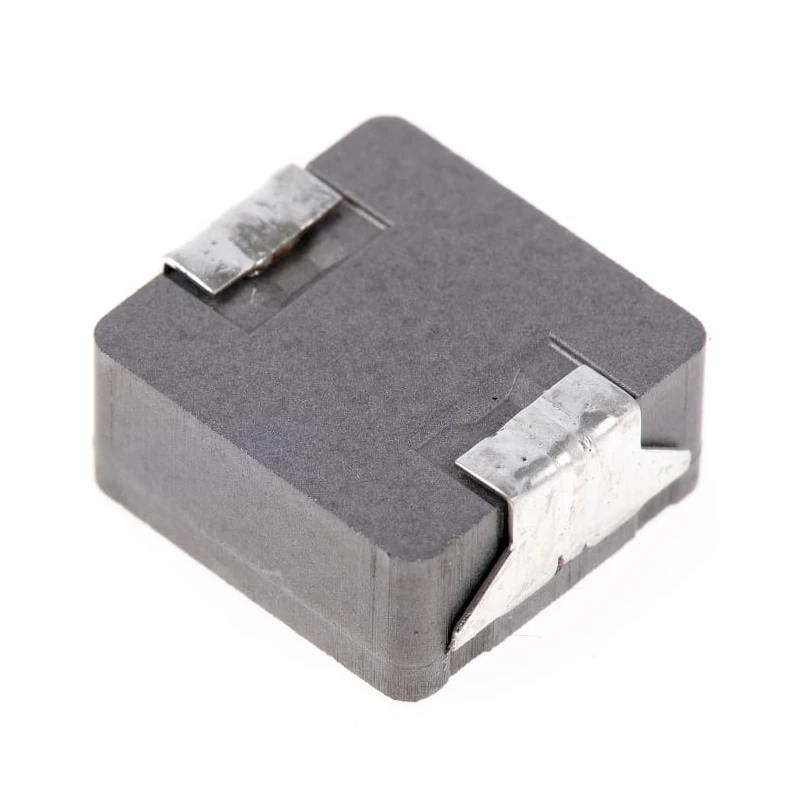

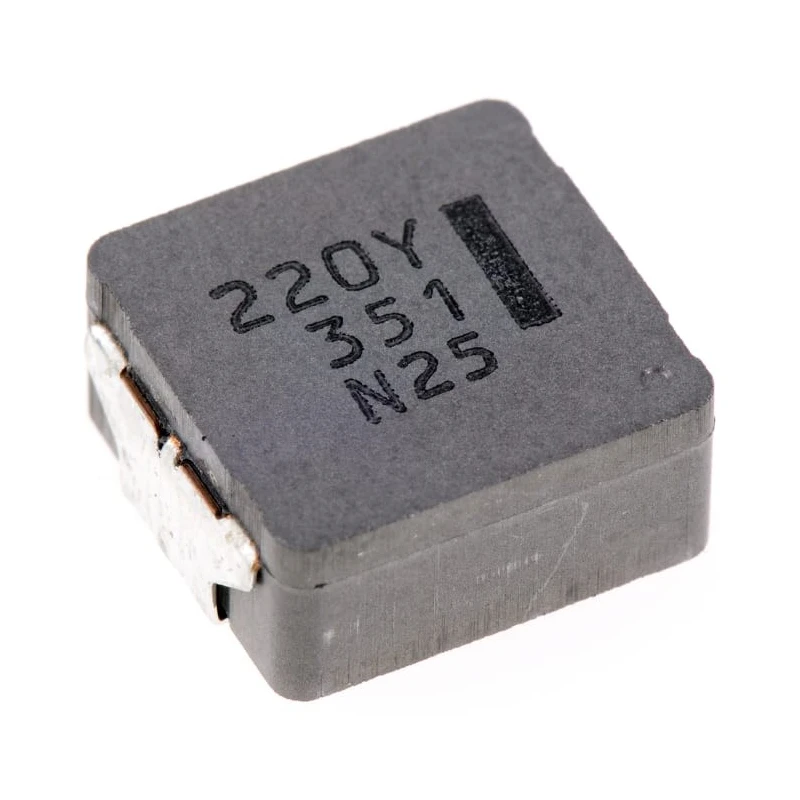

Panasonic Wirewound Shielded Surface Mount Inductor 22μH ±20%, 6.2A DC Current, Metal Composite Core ETQP5M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5.4mm |
| Length | 10.7mm |
| Model | ETQP5M |
| Depth | 10mm |
| Packaging | Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 1054 |
| Maximum DC Current | 6.2A |
| Maximum DC Resistance | 50mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a shielded design to minimize electromagnetic interference in circuits.
- Metal composite core enhances efficiency and thermal performance.
- Certified to AEC-Q200 automotive standard ensuring reliability under harsh conditions.
- Operates reliably from -40°C to +150°C for versatile applications.
- Low DC resistance of 50mΩ reduces energy loss and improves efficiency.
- Compact dimensions of 10.7mm x 10mm x 5.4mm suit space-constrained designs.
- Surface mount termination style facilitates modern PCB assembly processes.
- Maximum self-resonant frequency of 100kHz supports various power electronics uses.
Product Description
Panasonic ETQP5M Wirewound Shielded Surface Mount Inductor is a reliable passive electronic component engineered for demanding industrial, automotive, and electronic applications. Its metal composite core and shielded construction reduce electromagnetic interference and optimize thermal management, ensuring stable operation even in harsh environments.
Designed to meet AEC-Q200 automotive standards, this inductor withstands a wide operating temperature range from -40°C to 150°C. The device supports a maximum DC current of 6.2A with low DC resistance of 50mΩ, improving energy efficiency and circuit reliability. Measuring just 10.7mm in length, 10mm in depth, and 5.4mm in height, it is ideal for compact designs.
Applications include use in automotive power modules, electric vehicles, noise filtering circuits, and various high-frequency power electronics. Its surface mount termination style ensures easy integration on modern printed circuit boards with reel packaging for efficient manufacturing.
Shielded design minimizes electromagnetic interference for enhanced circuit performance. Metal composite core provides improved efficiency and better thermal dissipation. Compliance with AEC-Q200 automotive reliability standards guarantees operational safety.
Wide operational temperature range supports diverse industrial and automotive needs. Low DC resistance reduces power losses and improves overall system efficiency. Compact form factor supports space-saving circuit board layouts.
Surface mount technology compatibility offers assembly efficiency in production. 100kHz self-resonant frequency suits advanced power electronics designs. RoHS compliance confirms adherence to environmental regulations.
This Panasonic ETQP5M series inductor is an excellent choice for engineers and designers developing high-reliability automotive, industrial, and consumer electronic systems. Explore similar Panasonic Surface Mount Inductors and passive components at EnvMart for comprehensive component sourcing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22μH with a tolerance of ±20%.
This unit has a maximum DC current rating of 6.2A.
The dimensions are 10.7mm in length, 10mm in depth, and 5.4mm in height.
It operates reliably within a temperature range of -40°C to 150°C.
It features a metal composite core, which enhances efficiency and thermal performance.
The maximum self-resonant frequency is 100kHz, suitable for various power electronics applications.
This inductor uses a surface mount termination style, facilitating modern PCB assembly processes.
Yes, it is certified to AEC-Q200 automotive standards, ensuring reliability in harsh conditions.
It has a low DC resistance of 50mΩ, which helps reduce energy loss and improve efficiency.
The Panasonic ETQP5M is packaged in a reel, which is suitable for automated assembly processes.
It is suitable for automotive power modules, electric vehicles, noise filtering circuits, and high-frequency power electronics.
The country of origin for this inductor is Japan.
