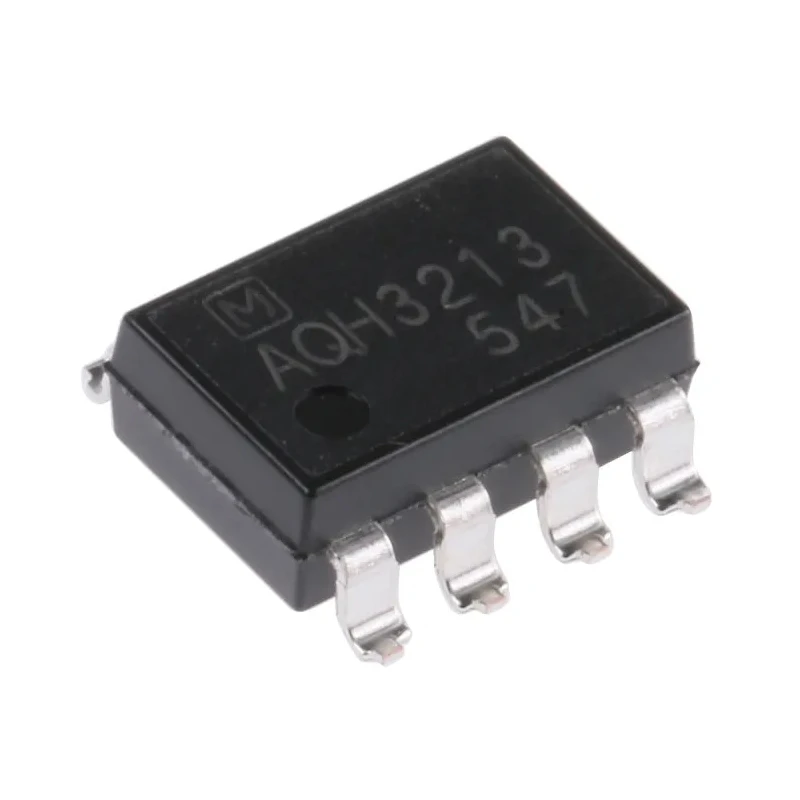

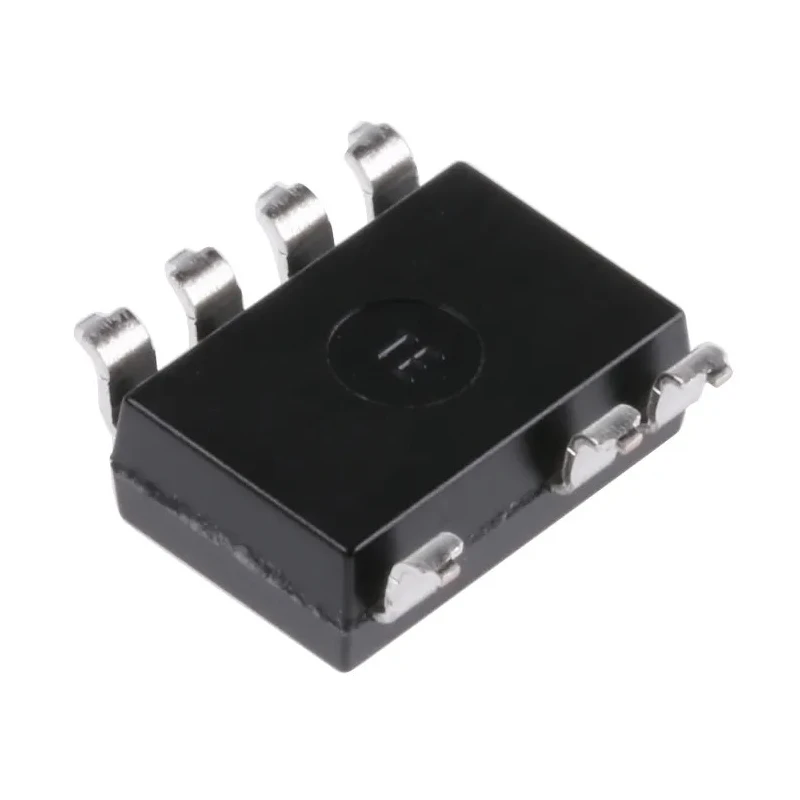

Panasonic AQ-H Series Solid State Relay, PCB Mount, 1.2 A Load Current, 600 V Load Voltage, 1.3 V Control AQH3213A

Panasonic AQH3213A Solid State Relay is a compact DIP-8 package designed for PCB mounting to handle AC load control applications efficiently. This relay supports a maximum load current of 1.2 A and can operate load voltages up to 600 V, making it suitable for various industrial and home appliance control circuits.

The device features zero cross switching, enhancing switching reliability and minimizing electrical noise. The control input voltage ranges between 1.21 V minimum to 1.3 V maximum, enabling precise activation of the relay. The output is a phototriac coupler type, facilitating efficient switching of AC loads.

With operational temperature range from -30°C to 85°C, this relay is capable of reliable functionality under diverse environmental conditions. Its compact size, measuring 9.8 mm in length, 6.4 mm in width, and 3.4 mm in height, allows for easy integration into space-constrained electronic assemblies.

Featuring surface mount terminals, it supports modern PCB manufacturing processes. The relay exhibits off state leakage current of only 100 μA, helping to reduce power losses during operation. This product complies with major certifications including RoHS, VDE, UL, and cUL, ensuring quality and safety standards compliance.

Typical applications include household appliances and industrial equipment where precise and reliable AC load switching is required. The solid state design ensures silent operation and extended lifecycle compared to mechanical relays.

This DIP-8 package SSR features zero cross switching for reduced electrical noise. It supports a control voltage range from 1.21 V to a maximum of 1.3 V for precise triggering. The relay includes a phototriac coupler output type enabling efficient switching.

Designed for operational temperatures ranging from -30°C to 85°C supporting robust performance. Compact dimensions of 9.8 mm length, 6.4 mm width, and 3.4 mm height enable space-saving PCB mounting. It has a low off state leakage current of 100 μA ensuring minimal power loss.

The relay terminals are surface mount type optimized for automated PCB assembly. Highly durable with approvals from RoHS, VDE, UL, and cUL standards ensuring safety and compliance. Ideal for use in industrial equipment and home appliance AC load switching applications.
