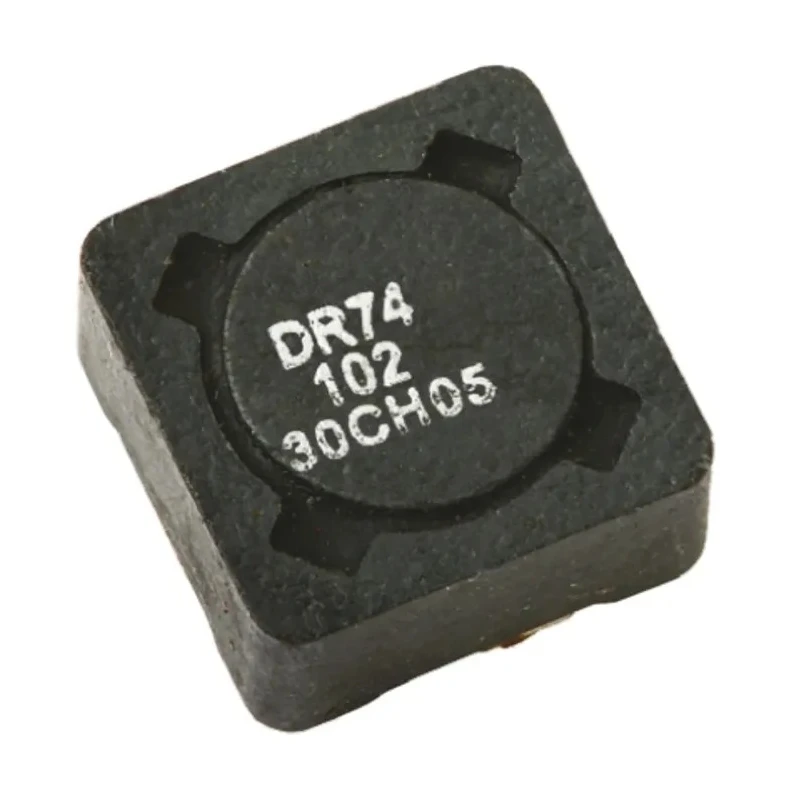

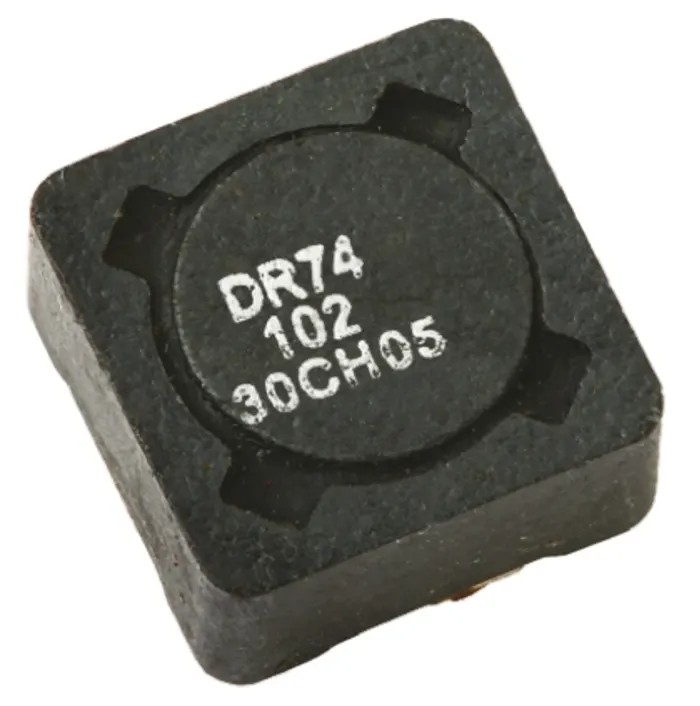

Eaton Shielded Surface Mount Inductor with Ferrite Core 22μH ±20% 2.13A Idc 0704 Package DR74-220-R
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Height | 4.35mm |
| Length | 7.6mm |
| Model | DR74-220-R |
| Depth | 7.6mm |
| Packaging | Reel |
| Series | DR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 0704 |
| Maximum DC Current | 2.13A |
| Pin Count | 2 |
| Maximum DC Resistance | 92.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded design minimizes interference and enhances performance.
- Wirewound construction with ferrite core for high efficiency and durability.
- Compact 0704 package with surface mount termination for PCB assembly.
- Operates reliably within -40°C to 125°C temperature range.
- Maximum DC resistance of 92.5mΩ ensures low power loss during operation.
- Inductance tolerance of ±20% suitable for general electronic circuit designs.
- Maximum self-resonant frequency of 100kHz optimal for low frequency filtering.
- Compliance with RoHS standards ensures environmental safety.
Product Description
Eaton DR74-220-R shielded surface mount inductor with a ferrite core features a 22μH inductance value with ±20% tolerance and supports a maximum DC current of 2.13A. It is housed in a compact 0704 package designed for surface mount technology, enabling efficient PCB mounting in electronic devices.
The inductor is constructed using wirewound technology on a magnetically shielded ferrite drum core, providing high power density and electrical efficiency. This shielding reduces electromagnetic interference, making it ideal for sensitive electronic circuits.
Operating reliably in temperatures from -40°C to 125°C, the component ensures stable performance in diverse environmental conditions. It has a maximum DC resistance of 92.5mΩ to minimize power loss and a maximum self-resonant frequency of 100kHz for effective noise suppression in low-frequency applications.
This RoHS-compliant inductor is molded for mechanical durability and is manufactured in China ensuring quality standards. Eaton’s DR series inductors are widely used in applications such as DC-DC converters - buck, boost, forward, and resonant converter topologies - as well as noise filtering in computers, DVD players, LCD panels, and portable devices.
Magnetically shielded wirewound construction with ferrite core for enhanced electrical performance. Surface mount 0704 package suitable for compact PCB layouts. Wide operating temperature range from -40°C to 125°C for industrial-grade applications.
Low DC resistance reduces energy losses during current flow. Effective noise filtering in DC-DC power conversion and consumer electronics. RoHS certified to meet environmental compliance requirements. Molded encapsulation provides mechanical protection and durability.
Maximum self-resonant frequency of 100kHz enables suitable filtering across designed frequency range. Reliable current capacity of 2.13A supports medium power electronics.
This surface mount inductor is an essential passive component for engineers and technicians engaged in electronic circuit design, manufacturing, and repair. Its robust specifications make it ideal for industrial, commercial, and consumer electronic applications. Explore more electronic components and Surface Mount Inductors in our Electronics Components category on EnvMart.
