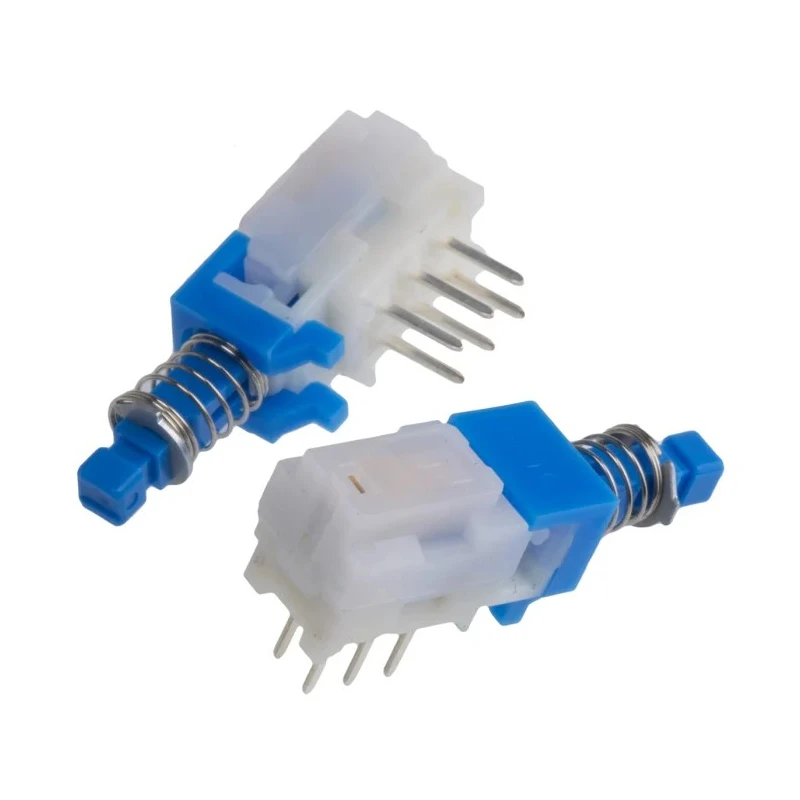

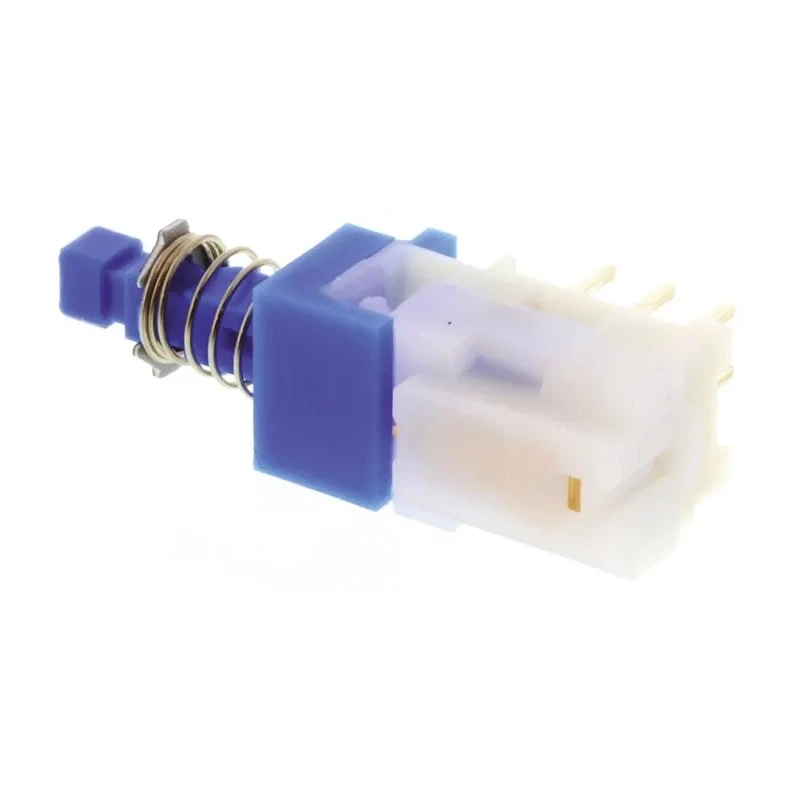

Alps Alpine SPUJ Series Push Button Switch DPDT PCB Mount Latching 30 V DC SPUJ190900
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Alps Alpine |
| Model | SPUJ190900 |
| Mount Type | PCB |
| Series | SPUJ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 7.2 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | Latching |
| Actuator Colour | Blue |
| Contact DC Voltage | 30V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 100mA |
Key Features
- The switch has a blue plunger actuator for easy identification.
- It supports a DPDT contact configuration with through-hole terminals.
- The device is rated for 30 V DC contact voltage and 100 mA switching current.
- The push button switch maintains reliable operation from -40°C to 85°C.
- Designed to be RoHS compliant and suitable for PCB mounting.
- This switch has a compact panel cutout size of 7.2 mm.
- It offers a travel distance of 2 mm for tactile feedback.
- Constructed in Japan to high-quality standards.
Product Description
Alps Alpine SPUJ190900 is a high-quality Push Button Switch from the SPUJ Series designed for PCB mounting. It features a latching switch operation with DPDT (Double Pole Double Throw) contact configuration and a compact 7.2 mm panel cutout size, allowing for efficient assembly in control panels and electronic devices.
The switch operates reliably on 30 V DC with a contact current rating of 100 mA, making it suitable for low voltage electronic circuits and signal switching. The blue plunger actuator provides tactile feedback and easy identification during use. It uses through-hole terminals to ensure secure soldering on printed circuit boards.
Engineered for durability, the switch performs well within a broad temperature range from -40°C to 85°C, maintaining consistent operation in various industrial, automation, and electrical environments. It meets RoHS compliance standards, ensuring it contains no harmful substances and is environmentally friendly.
The SPUJ series is distinguished by its 2 mm actuator travel, non-shorting construction, and a contact resistance of approximately 20 mOhm. It also offers a minimum insulation resistance of 100 MOhm and can withstand 500 V AC for one minute, providing robustness for sensitive electronic applications.
The switch body dimensions are compact with an overall depth of 25 mm, height of 8.8 mm, and width of 7.5 mm for the 2-pole version. This device is ideal for use in electronics assembly, automation controls, and signal switching on printed circuit boards.
Manufactured in Japan, the SPUJ190900 push button switch exemplifies precision engineering and quality assurance.
This product is an essential component for electrical and automation engineers seeking reliable, compact, and easy-to-install push button switches suitable for low voltage control panels and electronic devices.
Explore additional Alps Alpine SPUJ series push button switches for varied pole counts, actuator types, and mounting styles for diverse application requirements within the EnvMart catalog.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SPUJ190900 features a DPDT (Double Pole Double Throw) contact configuration, allowing it to control multiple circuits with a single switch.
This model is rated for a contact voltage of 30 V DC and a switching current of 100 mA.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for various environments.
The switch requires a compact panel cutout size of 7.2 mm for proper installation.
The actuator is a blue plunger style that provides tactile feedback during operation, making it easy to identify.
It uses through-hole terminals, ensuring secure soldering on printed circuit boards.
Yes, this switch is designed to be RoHS compliant, ensuring it does not contain harmful substances.
The contact resistance of the SPUJ190900 is approximately 20 mOhm, which supports efficient electrical performance.
The overall dimensions of this model are 25 mm in depth, 8.8 mm in height, and 7.5 mm in width.
It is ideal for use in electronics assembly, automation controls, and signal switching on printed circuit boards.
The switch has a minimum insulation resistance of 100 MOhm, providing robustness for sensitive electronic applications.
The actuator offers a travel distance of 2 mm, providing tactile feedback during operation.
