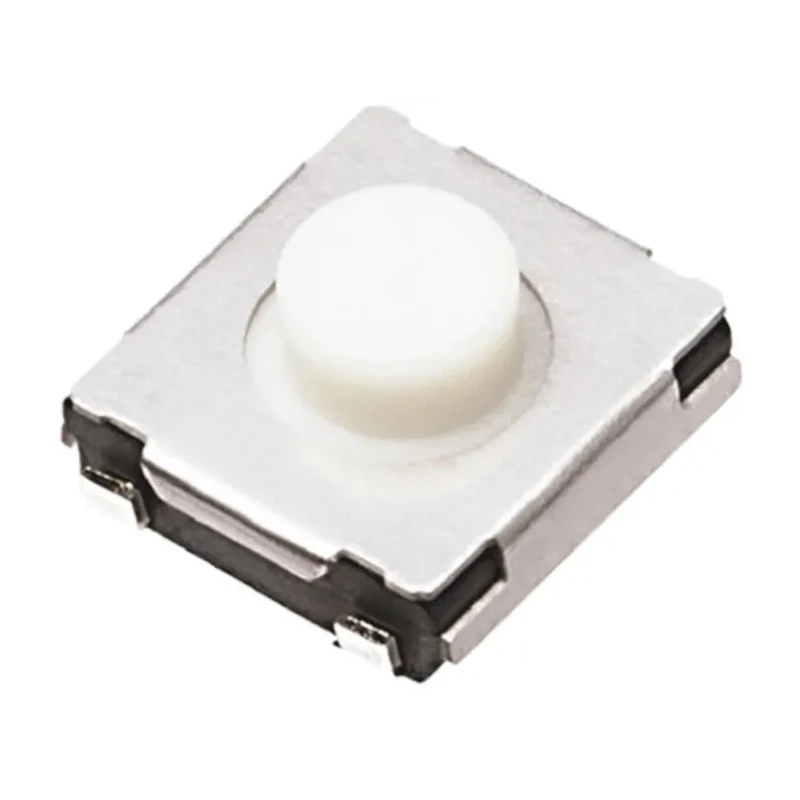

Panasonic White Tactile Switch Push Plate SMT, 2.5 mm Actuator Length, SPST 20mA 15 V dc Surface Mount EVQQ2S02W

Panasonic EVQQ2S02W is a white tactile switch push plate designed for surface mount technology (SMT) applications. This tactile switch features a compact actuator length of 2.5 mm and is part of the EVQQ2 series known for light-touch momentary snap action switches.

The SPST (Single Pole Single Throw) contact configuration ensures straightforward on/off switching with reliable electrical contact rated at 20mA and 15 V dc. The switch operation is momentary, providing a sharp and clear click feedback upon actuation.

Manufactured with a white push plate actuator, this tactile switch has small compact dimensions: 6.6 mm length, 6 mm width, and 2.5 mm height, making it suitable for space-constrained applications. It has a low contact resistance and small bounce noise which enhances performance and reliability.

The switch is rated for an operating temperature range of -40°C to 85°C, suitable for various industrial, electronics, and automation environments. Mechanical life expectancy is one million cycles, supporting long-term usage. The operating force of 1.6N ensures tactile feel consistency and user comfort.

This Panasonic tactile switch is RoHS compliant, ensuring it meets environmental safety standards. It is ideal for use in electronic devices, industrial controllers, consumer electronics, and automation systems requiring high reliability push-button switches.

The switch provides a tactile momentary operation with a clear click feel. White push plate actuator with a length of 2.5 mm for compact size applications. Single Pole Single Throw (SPST) contact configuration for simple on/off switching.

Surface mount terminal type suitable for SMT PCB assembly. Operating temperature range from -40°C to 85°C for reliable performance. Rated contact current of 20mA and contact DC voltage of 15V dc ensures low power switching.

Mechanical life rated at 1,000,000 cycles ensuring durability in electronic applications. Operating force of 1.6N provides consistent tactile feedback. Compact dimensions of length 6.6 mm, width 6 mm, and height 2.5 mm. Compliant with RoHS environmental standards for hazardous substances.

This tactile switch is widely applicable in industrial automation systems, electronic equipment manufacturing, consumer electronics, and PCB assembly scenarios requiring small, reliable momentary switches with tactile feedback.
