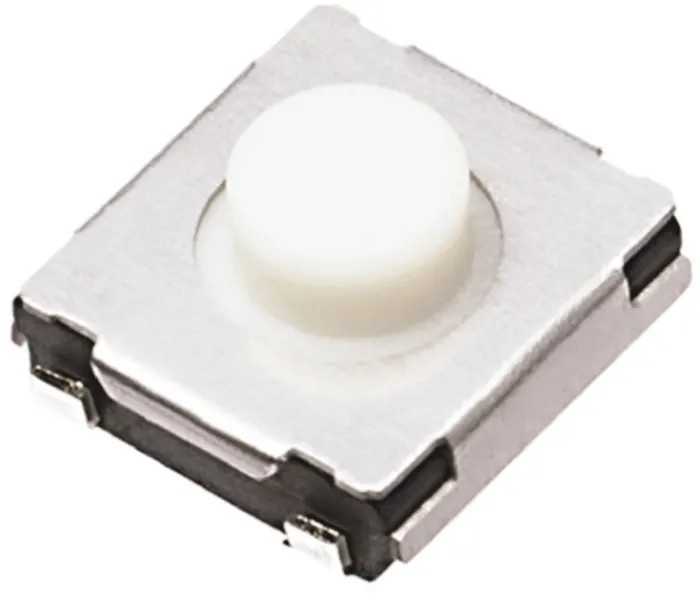

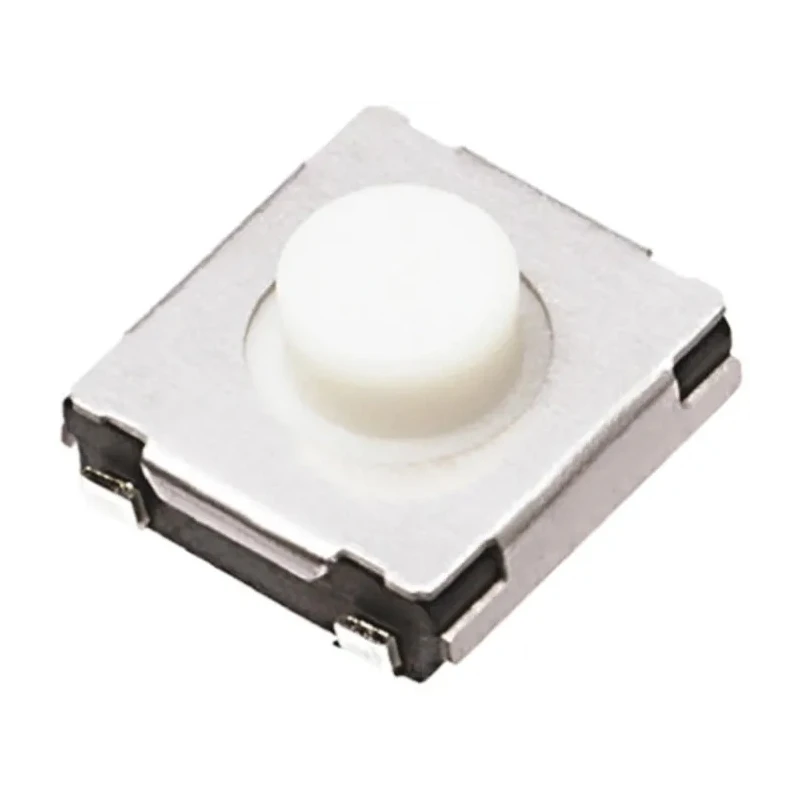

Panasonic White Tactile Switch Push Plate 2.5mm SPST 20mA 15V DC Surface Mount EVQQ2S02W
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Panasonic |
| Height | 2.5mm |
| Length | 6.6mm |
| Model | EVQQ2S02W |
| Width | 6mm |
| Mount Type | Surface |
| Series | EVQQ2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Actuator Length | 2.5mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 20mA |
| Operating Force | 1.6N |
| Mechanical Life | 1000000Cycles |
Key Features
- Single pole single throw (SPST) contact configuration ensures reliable momentary switch operation.
- White push plate actuator measuring 2.5 mm length offers a clear tactile response.
- Compact footprint with dimensions 6.6 mm length and 6 mm width suits PCB surface mounting applications.
- Operates at a maximum contact current of 20mA and voltage rating of 15 V dc for low power circuits.
- Surface mount terminal type designed for easy and secure installation on printed circuit boards.
- Mechanical life rated at 1,000,000 cycles providing durable and long-lasting performance.
- Operating temperature range from -40°C to +85°C suits industrial and consumer environments.
- Operating force of 1.6N delivers a crisp and assuring click feedback.
Product Description
Panasonic EVQQ2S02W White Tactile Switch Push Plate is a high-quality surface mount tactile switch designed for precise momentary operation in low current circuits. Featuring a single pole single throw (SPST) contact configuration, it ensures effective circuit control with a contact rating of 20 mA at 15 V dc.
The switch actuator is a white push plate with a length of 2.5 mm, offering an ergonomically sharp tactile feedback and a clear clicking sensation. With overall dimensions of 6.6 mm length, 6 mm width, and 2.5 mm height, it is optimized for compact PCB layouts.
This momentary switch employs surface mount terminals for reliable soldering and electrical connections, making it suitable for modern automated assembly processes. It boasts a mechanical life of one million cycles, reflecting its durability and suitability for demanding applications.
Designed to operate in extreme conditions, it functions over a temperature range of -40°C to +85°C, supporting applications in industrial automation, consumer electronics, and other environments requiring robust reliability.
The operating force of 1.6 newtons provides a satisfying tactile response, pivotal for user interfaces demanding precise control and feedback. The switch is RoHS compliant, aligning with international standards for hazardous substances.
Single pole single throw (SPST) contact configuration ensures reliable momentary operation. White push plate actuator provides clear tactile feedback. Compact dimensions optimize PCB space usage. Surface mount terminal type for secure and efficient PCB installation.
Mechanical life of 1,000,000 cycles guarantees longevity. Wide operating temperature range from -40°C to 85°C supports varied environments. Operating force of 1.6N delivers a crisp click response. RoHS compliant for environmental safety.
Manufactured in Malaysia ensuring high quality standards.
This Tactile Switch is ideal for applications in electrical and electronic equipment, including automation systems, consumer devices, medical instruments, and other assemblies requiring momentary switch operations with reliable feedback. Explore the Panasonic range at EnvMart for more electronic switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tactile switch has a maximum contact current rating of 20mA and a voltage rating of 15V DC.
It has a mechanical life rated at 1,000,000 cycles, indicating its durability for long-term use.
The switch measures 6.6 mm in length, 6 mm in width, and 2.5 mm in height, making it compact for PCB applications.
This model features a single pole single throw (SPST) contact configuration, which ensures reliable momentary operation.
It operates effectively within a temperature range of -40°C to +85°C, suitable for various environments.
The operating force for this tactile switch is 1.6N, providing a crisp tactile feedback during operation.
This model is designed for surface mounting, allowing for easy and secure installation on printed circuit boards.
Yes, the Panasonic EVQQ2S02W is RoHS compliant, adhering to international standards for hazardous substances.
The actuator of this switch is white, providing clear tactile feedback during operation.
This switch is designed for use in electrical and electronic equipment, including automation systems and consumer devices requiring momentary operations.
It employs surface mount terminals, ensuring reliable soldering and electrical connections for modern automated assembly processes.
This tactile switch is manufactured in Malaysia, ensuring adherence to high quality standards.
