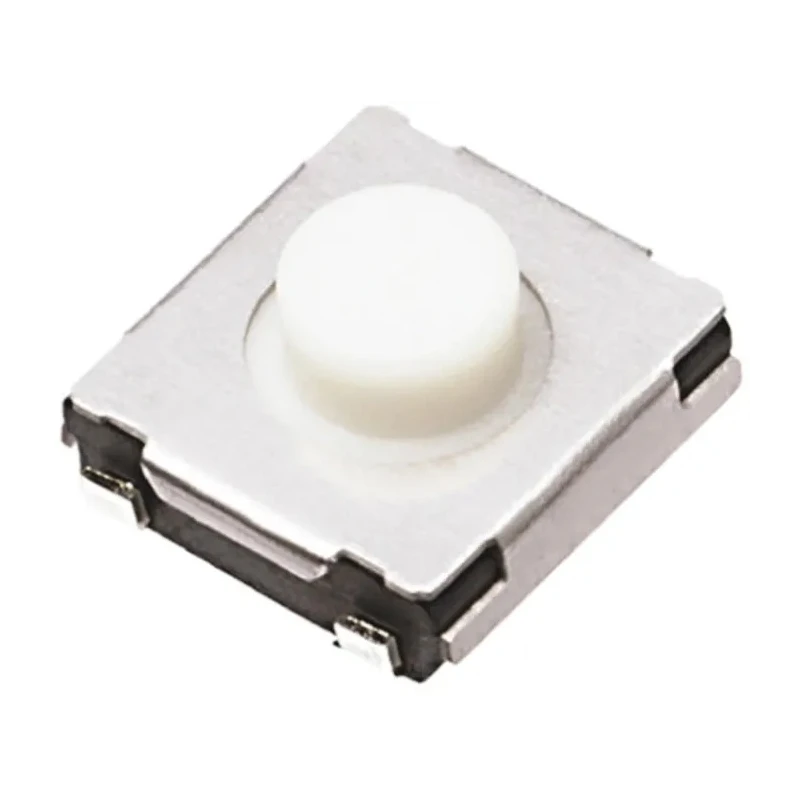

Panasonic White Tactile Switch Push Plate, 2 mm Actuator Length, SPST 20mA 15 V dc Surface Mount EVQQ2F01W
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Panasonic |
| Height | 2mm |
| Length | 6.6mm |
| Model | EVQQ2F01W |
| Width | 6mm |
| Mount Type | Surface |
| Series | EVQQ2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Actuator Length | 2mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 20mA |
| Operating Force | 1N |
| Mechanical Life | 1000000Cycles |
Key Features
- Single Pole Single Throw (SPST) contact configuration ensures reliable switching.
- Operates at 20mA current and 15 V dc voltage suitable for low power circuits.
- Surface mount terminal type with momentary switch operation provides precise control.
- Mechanical life rated at 1,000,000 cycles offering long-term durability.
- Wide operating temperature range from -40°C to 85°C suitable for various environments.
- Operating force of 1N provides tactile, clear click feedback.
- RoHS compliant ensuring environmental and safety standards.
Product Description
Panasonic EVQQ2F01W is a white tactile switch push plate designed for surface mount applications in electronic devices. It features a 2 mm actuator length, ideal for compact form factors and precise input control. This tactile switch operates in a Single Pole Single Throw (SPST) contact configuration rated for 20mA and 15 V dc, making it suitable for low current switching requirements.
The switch provides a momentary snap action with a distinct and assuring click feel due to its 1N operating force. It supports a wide operating temperature range from -40°C to 85°C, ensuring consistent performance under harsh conditions. The mechanical life of the switch extends to 1,000,000 cycles, highlighting its durability for industrial, consumer electronics, and automation systems.
The compact dimensions, including 6.6 mm length, 6 mm width, and 2 mm height, allow easy mounting on printed circuit boards using surface mount technology. The push plate actuator style and white colour enhance usability and interface clarity. Compliance with RoHS standards guarantees its environmental friendliness.
Single Pole Single Throw (SPST) contact configuration ensures reliable operation. Operates at 20mA 15 V dc, suitable for low power applications. Momentary switch action provides precise user input control. Mechanical life of 1,000,000 cycles delivers outstanding durability.
Wide temperature range from -40°C to 85°C supports diverse usage environments. Compact size with 6.6 mm length, 6 mm width, and 2 mm height. 1N operating force offers a clear tactile feedback. White push plate actuator enhances user interface clarity.
RoHS compliant, ideal for environmentally conscious electronic designs.
This tactile switch is ideal for applications in industrial electronics, automation controls, communication devices, laboratory instruments, and consumer electronics requiring reliable momentary input switches.
Explore more Tactile Switches and surface mount components on EnvMart for your custom electronic projects and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tactile switch features a Single Pole Single Throw (SPST) contact configuration, ensuring reliable operation for low power applications.
It operates at a current of 20mA and a voltage of 15V dc, making it suitable for low power circuits.
The switch has a mechanical life rated at 1,000,000 cycles, which indicates its durability for long-term use.
This model supports a wide operating temperature range from -40°C to 85°C, suitable for various environments.
The switch has compact dimensions of 6.6 mm in length, 6 mm in width, and 2 mm in height, allowing for easy mounting on printed circuit boards.
It features a momentary switch operation, providing precise user input control with a distinct tactile feedback.
The operating force required for this switch is 1N, which gives a clear tactile click feedback during operation.
Yes, this switch is RoHS compliant, ensuring it meets environmental and safety standards.
It utilizes a surface mount terminal type, making it suitable for compact electronic designs.
The actuator style is a push plate, which enhances usability and interface clarity for users.
This model is suitable for applications in industrial electronics, automation controls, communication devices, and consumer electronics requiring reliable momentary input switches.
The tactile switch is manufactured in Malaysia.
