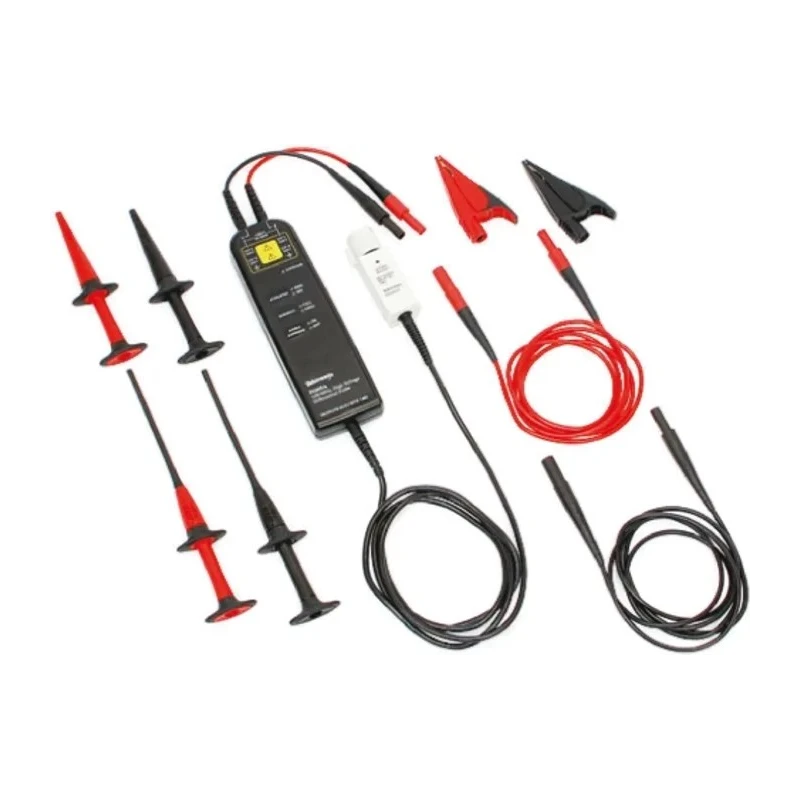

Tektronix P52XXA Series Differential Oscilloscope Probe 50 MHz Bandwidth Hook Tip Alligator Clip Pincer Clip P5200A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Tektronix |
| Model | P5200A |
| Connector Type | Hook Tip, Alligator Clip, Pincer Clip |
| Bandwidth | 50MHz |
| Series | P52XXA |
| Probe type | Differential |
| Standards/Approvals | CE, ISO 9001 |
| Safety Category Level | CAT ll |
| Safety Category Voltage | 1kV |
| Maximum Common Mode Input Voltage | 1kV |
| Attenuation ratio is 1 | 50 and 1:500 |
Key Features
- Provides selectable attenuation ratios of 50x and 500x for flexible signal measurement.
- Maximum common mode voltage rating of ±1.3 kV ensures safe operation on floating circuits.
- Input impedance of 5 MΩ with 14 pF input capacitance for accurate signal capture.
- Includes 2 hook clips, 2 pincer clips, 2 alligator clips, and 2 extension cables for versatile connection options.
- Designed with TekProbe interface for scale communication with oscilloscopes.
- Switchable bandwidth limit and overrange indicator enhance measurement reliability.
- Compatible only with grounded input oscilloscopes; not for use with floating input scopes.
- Safety certified to CAT II and meets CE and ISO 9001 standards.
Product Description
Tektronix P5200A differential oscilloscope probe offers precise 50 MHz bandwidth measurement capability, ideal for use in electronics testing, switching power supply design, motor drive design, and power device evaluation. This probe converts floating signals into low voltage ground-referenced signals, enabling safe and accurate measurement on any grounded oscilloscope.
The P5200A supports selectable 50x or 500x attenuation ratios and features an input impedance of 5 Mohm and 14 pF capacitance, delivering accurate signal integrity. Its maximum common mode voltage tolerance of ±1.3 kV and maximum input voltage rating of 1000 V CAT II allow safe measurements under diverse conditions.
Equipped with hook tip, alligator clip, and pincer clip connectors, the probe includes 2 each of hook clips, pincer clips, alligator clips, and extension cables to provide versatile connection options for various test setups.
This probe uses the Tektronix TekProbe interface to communicate scale information to compatible oscilloscopes. It is not suitable for oscilloscopes with floating inputs such as the Tektronix TPS2000 Series. The switchable bandwidth limit and overrange indicator further enhance its usability and safety.
Selectable attenuation ratios of 50x and 500x for flexible measurement scenarios. Maximum common mode voltage rating of ±1.3 kV for floating circuit measurements. Includes multiple connector types and accessories for comprehensive testing.
Safety certified and compliant with CAT II, CE, and ISO 9001 standards. Compatible with grounded input oscilloscopes only. Switchable bandwidth limit and overrange indicator for improved measurement accuracy. Ideal for industrial, laboratory, electronics design, and power device evaluation uses.
Connector types: hook tip, alligator clip, and pincer clip with multiple attachments supplied.
Tektronix products are widely respected in industrial and electronics testing environments. Explore more oscilloscopes and accessories in the EnvMart catalog for your measurement needs.
Explore more products in our Oscilloscope Probes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix P5200A differential oscilloscope probe has a bandwidth of 50 MHz, making it suitable for a variety of electronic testing applications.
This model includes hook tip, alligator clip, and pincer clip connectors, providing versatile connection options for different testing setups.
The maximum common mode voltage rating for the P5200A is ±1.3 kV, allowing safe operation on floating circuits.
The probe supports selectable attenuation ratios of 50x and 500x, allowing for flexible signal measurement depending on the application.
The input impedance of the P5200A is 5 MΩ with an input capacitance of 14 pF, which contributes to accurate signal capture.
The P5200A is safety certified to CAT II and meets CE and ISO 9001 standards, ensuring compliance with relevant safety regulations.
No, the P5200A is compatible only with grounded input oscilloscopes and should not be used with floating input scopes.
The probe comes with 2 hook clips, 2 pincer clips, 2 alligator clips, and 2 extension cables for comprehensive testing options.
The maximum input voltage rating for the P5200A is 1000 V CAT II, allowing for safe measurements under various conditions.
This probe is ideal for electronics testing, switching power supply design, motor drive design, and power device evaluation.
The TekProbe interface allows the probe to communicate scale information to compatible oscilloscopes, enhancing measurement accuracy and usability.
The P5200A features a switchable bandwidth limit and an overrange indicator, which improve measurement reliability and safety during use.
