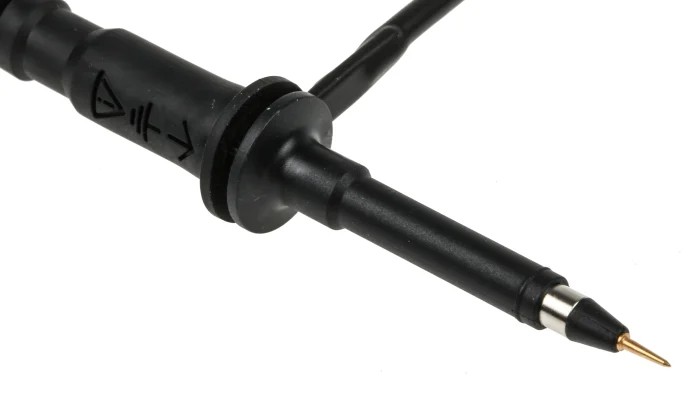

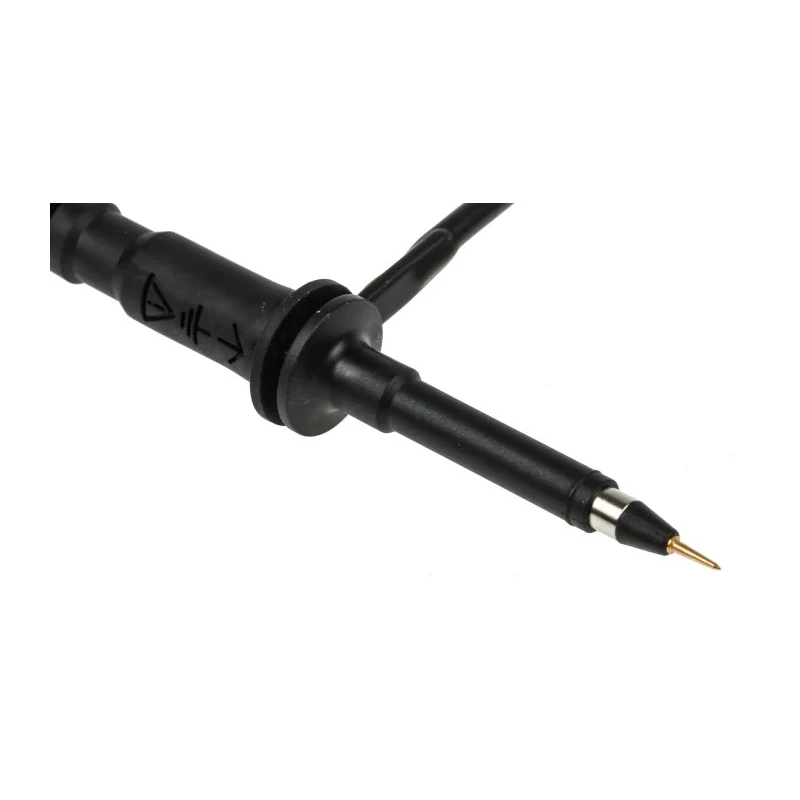

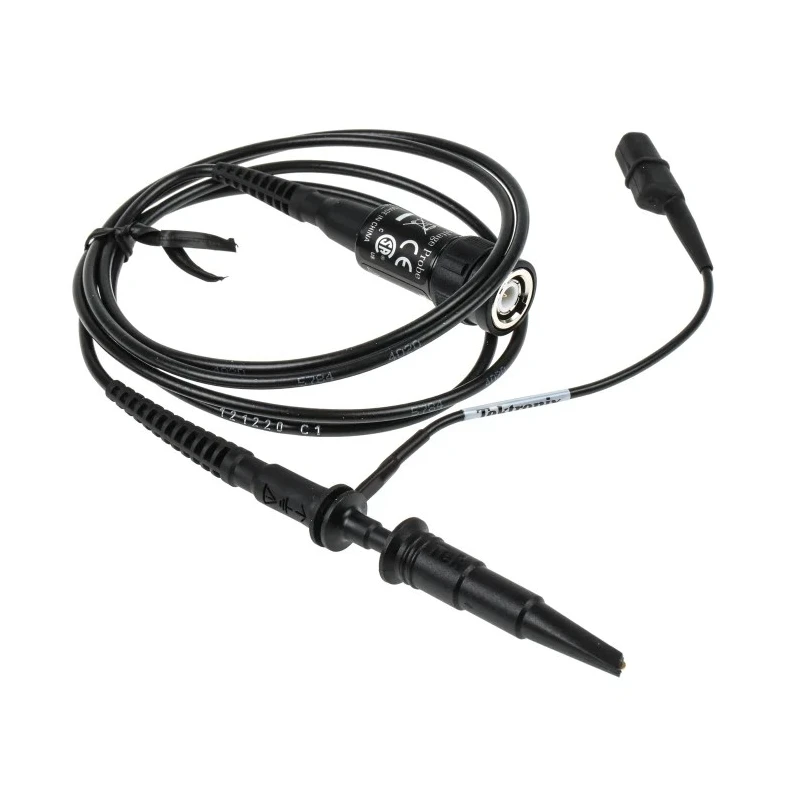

Tektronix Oscilloscope Probe Voltage Type 200 MHz Bandwidth 10x Attenuation BNC Connector TPP0201
Specifications
| Country of Origin | China |
|---|---|
| Brand | Tektronix |
| Model | TPP0201 |
| Connector Type | BNC |
| Bandwidth | 200MHz |
| Series | TPP |
| Probe type | Voltage |
| Rise Time | 2.3ns |
| Attenuation | 10x |
| Safety Category Level | CAT II |
| Maximum Common Mode Input Voltage | 300V |
| Attenuation ratio is 1 | 10 |
| IEC 61010-031/A1 | 2008 |
| Tektronix TPP Series TPP0201 Oscilloscope Probe, Passive Type, 200MHz, 1 | 10, BNC ConnectorBrand: Tektronix |
Key Features
- Bandwidth ranges from DC to 200 MHz to cover low to mid-frequency applications.
- Input impedance of 10 MΩ with 13 pF capacitance ensures accurate signal capture.

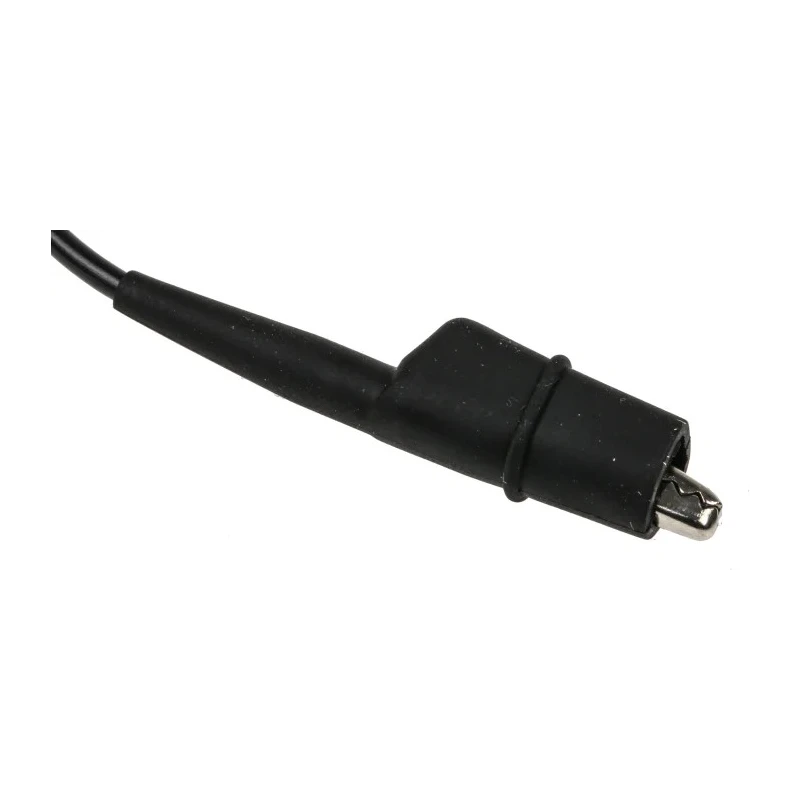

- Includes retractable hook tip, ground spring, and ground lead with alligator clip for versatile connection.
- Maximum common-mode input voltage is 300 V RMS with CAT II safety rating.

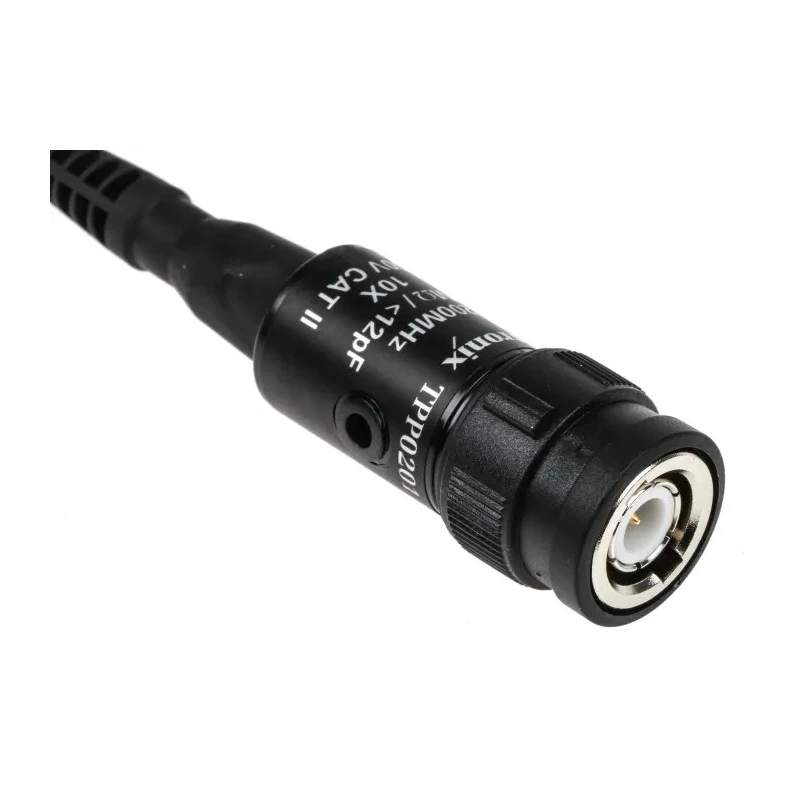

- Equipped with a BNC connector for compatibility with standard oscilloscopes.
- Rise time of 2.3 nanoseconds supports accurate transient measurements.
- Wide compensation range between 15 pF and 25 pF enables precise calibration.
Product Description
Tektronix TPP0201 oscilloscope probe is a high precision, passive voltage probe designed for use with BNC-type oscilloscopes that have an input impedance of 1 MΩ/13 pF. It supports a bandwidth of DC to 200 MHz and an attenuation ratio of 10:1, making it suitable for a wide range of signal measurement applications.
This probe features a high input resistance of 10 MΩ and low input capacitance of 13 pF, which minimizes the disturbance to the measured circuit. The probe includes practical accessories such as a retractable hook tip, a ground spring, and a ground lead with an alligator clip, allowing flexible and secure connections in various testing environments.
Designed for safety and compliance, the TPP0201 meets CAT II 300 V safety standards and is certified under IEC 61010-031/A1:2008, CAN/CSA C22.2 No. 61010-031-07, and UL 61010-031 standards. Its rise time is approximately 2.3 nanoseconds, ensuring accurate transient response measurements.
Applications for this oscilloscope probe include low-frequency computer and telecom signal testing, power supply measurements, and general low-frequency amplifier testing. Its wide compensation range (15 pF to 25 pF) enables ease of calibration for precise results.
Bandwidth: DC to 200 MHz for versatile signal capture across various applications. Input impedance: 10 MΩ and input capacitance 13 pF to minimize circuit loading. Maximum input voltage: 300 V RMS CAT II ensuring operator and instrument safety.
Connector type: Standard BNC connector compatible with most oscilloscopes. Certified to IEC, CAN/CSA, and UL safety standards for reliable performance.
This Tektronix oscilloscope probe is crafted in China under strict quality control and is ideal for industrial, laboratory, telecommunications, and electrical engineering applications. It is a dependable instrument accessory for precision voltage signal analysis.
Explore additional Tektronix oscilloscope accessories and probes at EnvMart for comprehensive measurement solutions tailored to your technical needs.
Explore more products in our Oscilloscope Probes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bandwidth of this oscilloscope probe ranges from DC to 200 MHz, making it suitable for low to mid-frequency applications.
It has an input impedance of 10 MΩ, which helps minimize circuit loading during measurements.
This model is equipped with a standard BNC connector, ensuring compatibility with most oscilloscopes.
The maximum common-mode input voltage is 300 V RMS, classified under CAT II safety standards.
The rise time is approximately 2.3 nanoseconds, which supports accurate transient measurements.
Included accessories are a retractable hook tip, a ground spring, and a ground lead with an alligator clip for versatile connections.
The attenuation ratio is 10:1, allowing for effective signal measurement across various applications.
It features a wide compensation range between 15 pF and 25 pF, facilitating precise calibration.
This probe is certified under IEC 61010-031/A1:2008, CAN/CSA C22.2 No. 61010-031-07, and UL 61010-031 standards.
It is suitable for applications such as low-frequency computer and telecom signal testing, power supply measurements, and general low-frequency amplifier testing.
The input capacitance is 13 pF, which helps ensure accurate signal capture with minimal disturbance to the circuit.
This model is manufactured in China under strict quality control standards.
