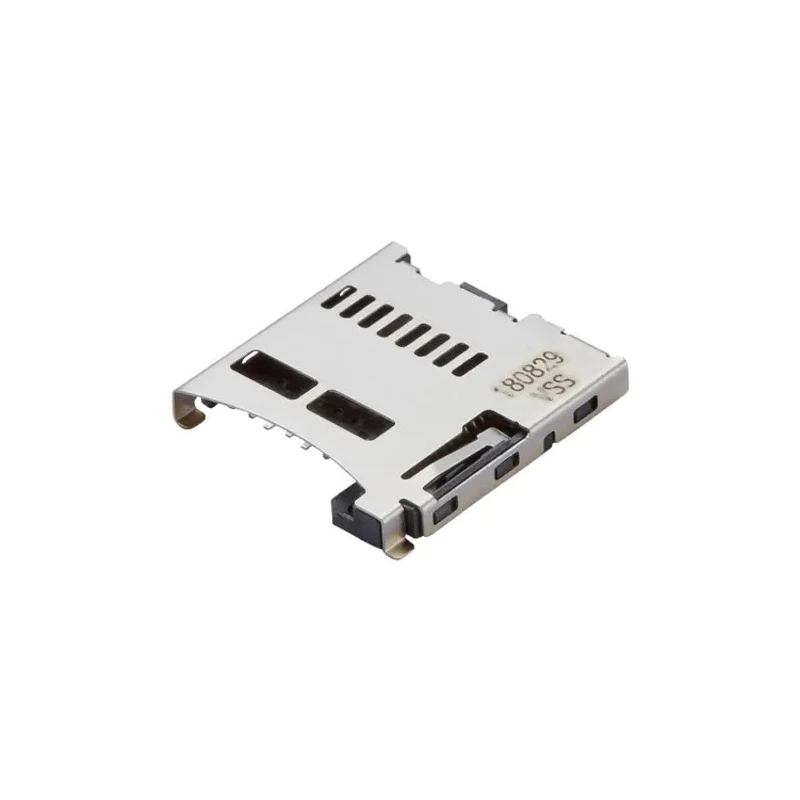

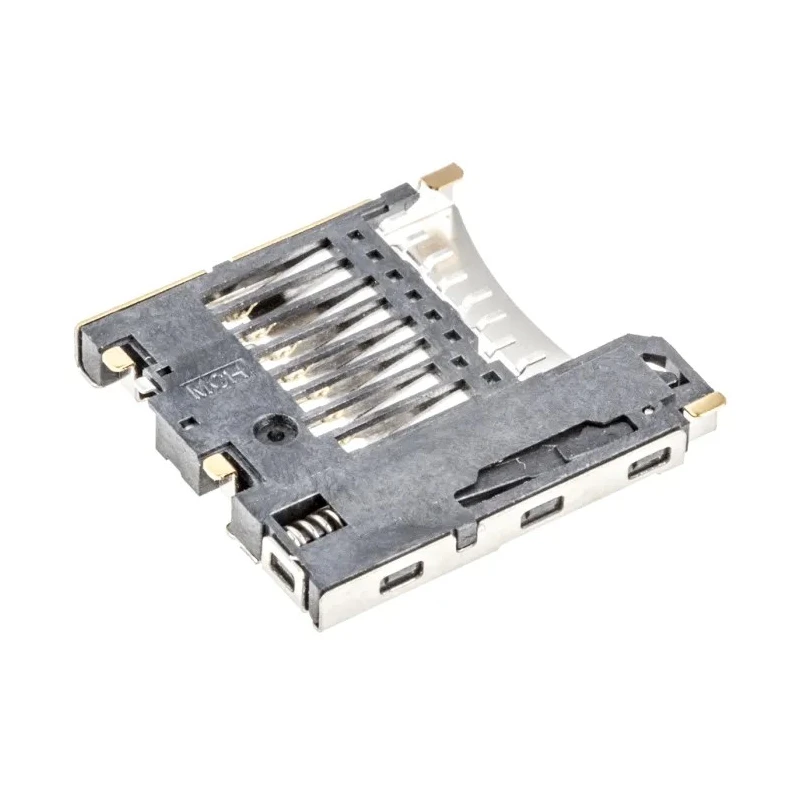

Molex 8 Way Right Angle Push-Push MicroSD Memory Card Connector, Surface Mount, Solder Termination 47352-1001
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Right Angle |
| Gender | Male |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | 47388 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 8 |
| Card Type | MicroSD |
| Insertion/Removal Method | Push-Push |
Key Features
- The connector features 8 contacts arranged in a single row with a 1.1mm pitch.
- Contact material is copper alloy, plated with gold over nickel for reliable conductivity.
- The housing is made of liquid crystal polymer, ensuring durability and high-temperature resistance.
- It operates reliably between -20°C and a maximum of 85°C.
- The push-push insertion and removal method provides secure card retention and easy ejection.
- Designed for right angle orientation to optimize PCB layout.
- The connector includes a VSS detect switch for supply voltage ground detection.
- Lead-free construction is ideal for compliance with environmental standards.
Product Description
Molex 47352-1001 is a high-quality 8 way right angle push-push MicroSD memory card connector designed for secure and reliable data storage connections in electronic devices. Featuring a surface mount design with solder termination, this connector is ideal for compact PCB layouts and high-density applications.
The connector contains 8 contacts arranged in a single row with a precise 1.1mm pitch, ensuring consistent electrical connectivity. Each contact is made from copper alloy with a gold over nickel plating to optimize conductivity and corrosion resistance.
The housing of the connector is constructed from liquid crystal polymer, providing high mechanical strength and thermal stability with an operating temperature range of -20°C to 85°C. Its lead-free manufacturing meets environmental and safety compliance requirements.
The push-push mechanism allows for easy insertion and secure retention of MicroSD cards while enabling simple ejection through a second push. The right angle orientation of the connector facilitates efficient PCB design and space conservation.
This connector also includes a VSS (supply voltage ground) detect switch, useful for system power management and card detection functions in industrial, consumer electronics, and communication equipment.
Manufactured in China, this Molex 47388 series connector offers a reliable and durable solution for memory card connectivity needs in industrial, electronics assembly, and embedded systems applications.
The connector features 8 contacts arranged in a single row with a 1.1mm pitch. Contact material is copper alloy with gold over nickel plating. Housing made of liquid crystal polymer for high durability. Operating temperature range from -20°C to 85°C.
Push-push insertion/removal method for secure card locking. Right angle orientation for optimized PCB layout. Includes VSS detect switch for voltage ground detection. Surface mount type with solder termination for easy assembly.
Lead-free design compliant with relevant environmental standards. For more components and technical products, browse the Memory Card Connector section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 85°C.
This connector is designed to support MicroSD cards.
It features 8 contacts arranged in a single row.
The pitch of the contacts is 1.1mm.
The contact material is copper alloy with gold over nickel plating, and the housing is made of liquid crystal polymer.
It utilizes a push-push mechanism for insertion and removal, allowing for secure card retention and easy ejection.
This connector is designed for right angle orientation, optimizing PCB layout.
It employs a solder termination type for surface mounting.
Yes, it includes a VSS detect switch for supply voltage ground detection.
The minimum operating temperature is -20°C.
This connector is manufactured in China.
The connector is male gender.
