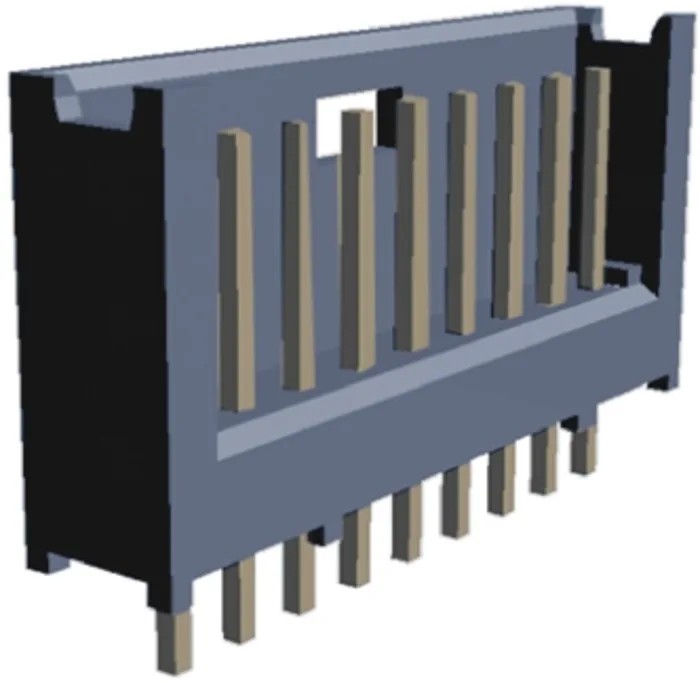

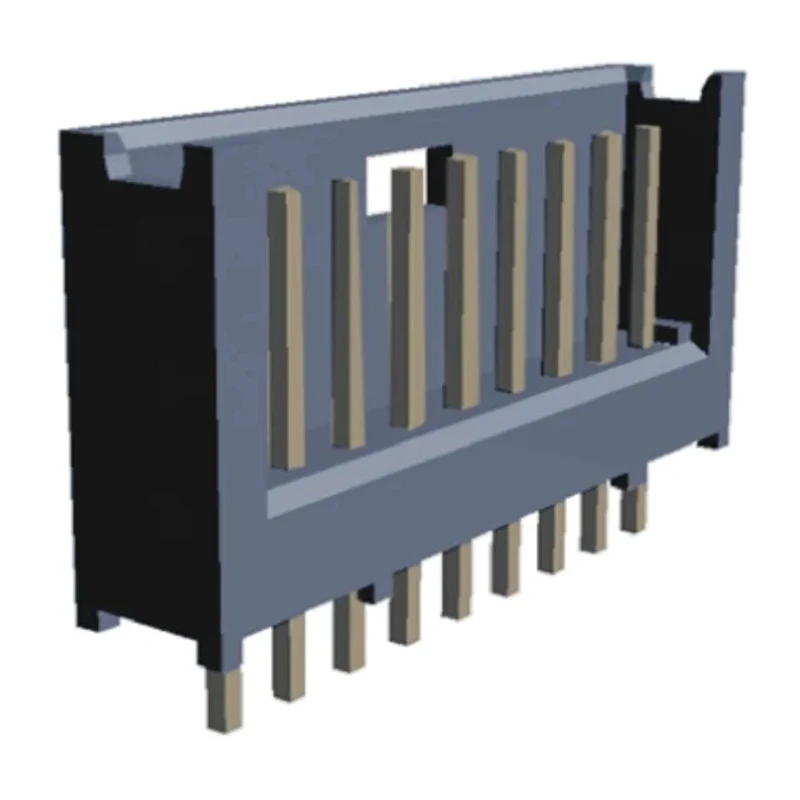

TE Connectivity AMPMODU Mod II Series Straight Through Hole 9-Contact 2.54 mm Pitch 1 Row Shrouded PCB Header 280508-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 40V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 280508-2 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- The header features a thermoplastic housing for durability.
- It supports a current rating of 3 A and a maximum voltage of 40 V.
- The contact material is brass with gold plating for enhanced conductivity and corrosion resistance.
- The component is designed with polarization and detent positive locking for secure mating.
- It operates reliably between -65°C and 105°C temperature range.
- Mounting is through-hole with a single row and 2.54 mm pitch.
- The connector system supports board-to-board and wire-to-board configurations.
- Gold plating ensures reliable solder termination and contact performance.
Product Description
TE Connectivity 280508-2 AMPMODU Mod II Series Straight Through Hole PCB Header is a high-performance, shrouded male connector with 9 contacts on a 2.54 mm pitch arranged in a single row. The header is constructed with a thermoplastic housing that offers mechanical protection and polarization to prevent mismating.
This connector supports currents up to 3 A and voltages up to 40 V, making it well-suited for a wide range of electronics applications. Its brass contacts are plated with gold to ensure excellent electrical conductivity and corrosion resistance, while the solder termination type guarantees a durable connection to printed circuit boards.
The header is designed for through-hole mounting and includes a detent positive locking mechanism that provides a secure connection with mating receptacle connectors. It operates effectively in extreme temperatures ranging from -65°C to 105°C, ensuring reliability under demanding environmental conditions.
Applications for this PCB header include automotive control systems, industrial and test instrumentation, computer equipment, telecommunications devices, medical instruments, storage solutions, and household appliances. The 2.54 mm AMPMODU Mod II interconnect system represents a proven signal standard in automation and control, offering both reliability and economy.
The thermoplastic housing provides robust insulation and mechanical strength. Shrouding on three sides protects pins from damage and accidental contact. Polarization prevents incorrect mating and enhances operational safety.
Detent positive locking ensures secure and vibration-resistant connections. Gold-plated brass contacts deliver stable electrical performance and long service life. Single-row, straight orientation enables easy PCB integration.
Wide temperature range suitability assures versatility across industrial, commercial, and medical markets. Suitable for board-to-board and wire-to-board connector systems in various electronic assemblies.
Choose this TE Connectivity PCB Header for precise, reliable connector performance within industrial and electronic component applications. Explore EnvMart’s extensive range of electronic connectors and PCB components for varied industrial needs.
Explore more products in our PCB Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3 A.
It can handle a maximum voltage of 40 V.
The pitch size of the contacts is 2.54 mm.
This unit is designed for through-hole mounting.
The housing is made of thermoplastic, and the contacts are brass with gold plating.
It operates reliably between -65°C and 105°C.
This connector features 9 contacts.
The orientation of this model is straight.
It supports board-to-board and wire-to-board configurations.
Yes, it includes a detent positive locking mechanism for secure mating.
This model belongs to the AMPMODU MOD II series.
The country of origin for this product is India.
