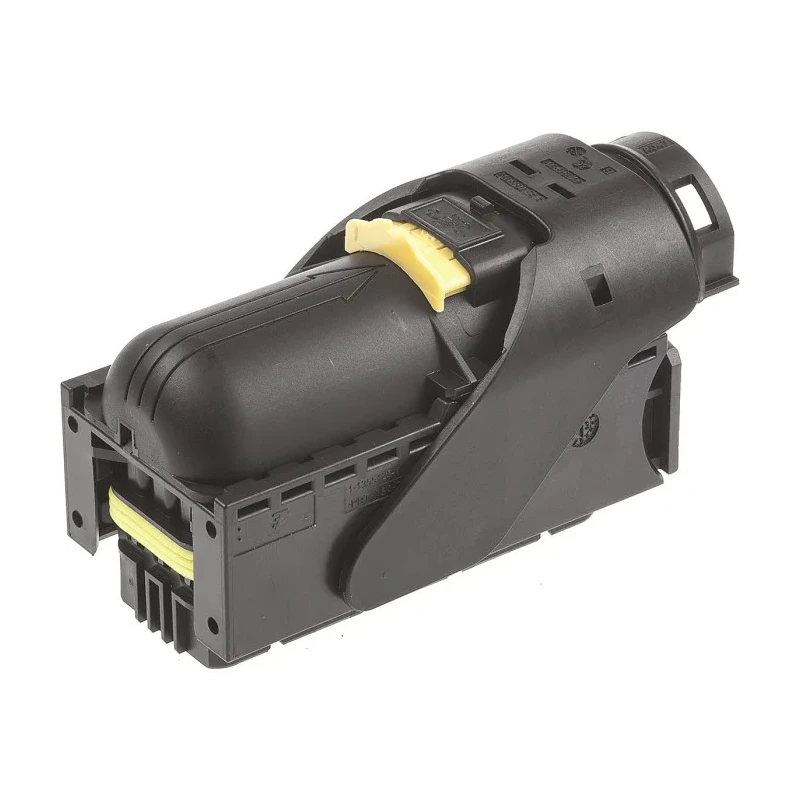

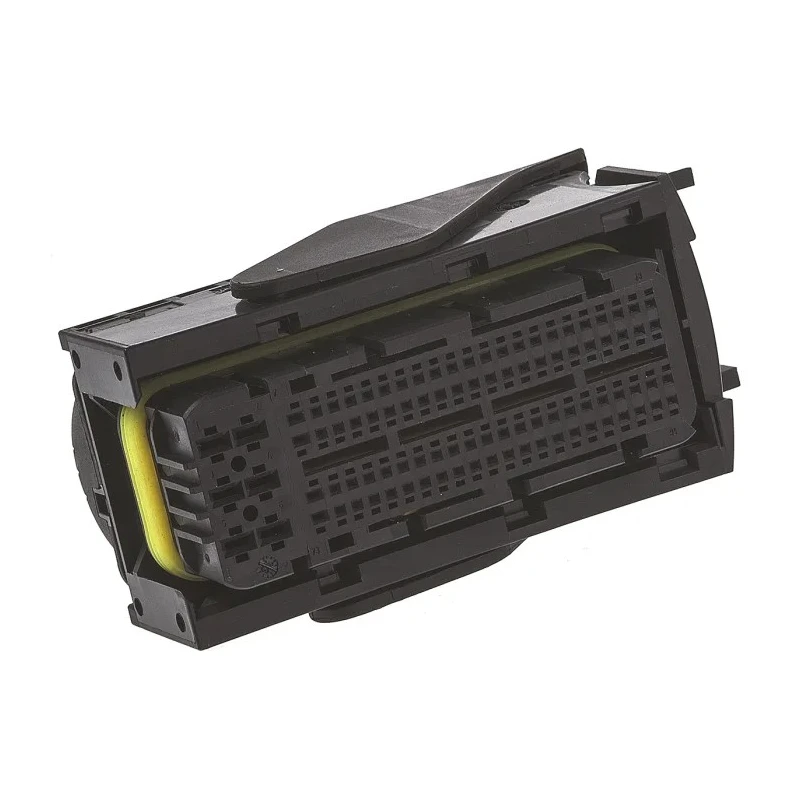

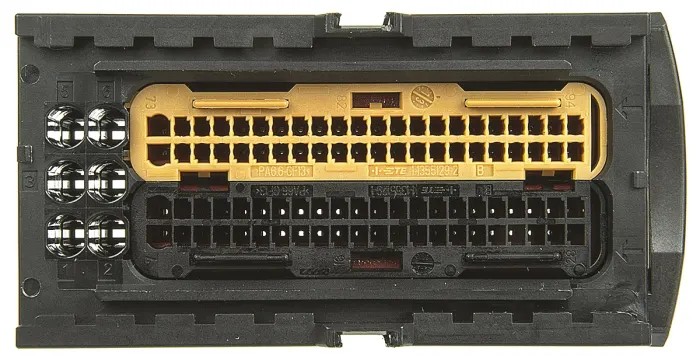

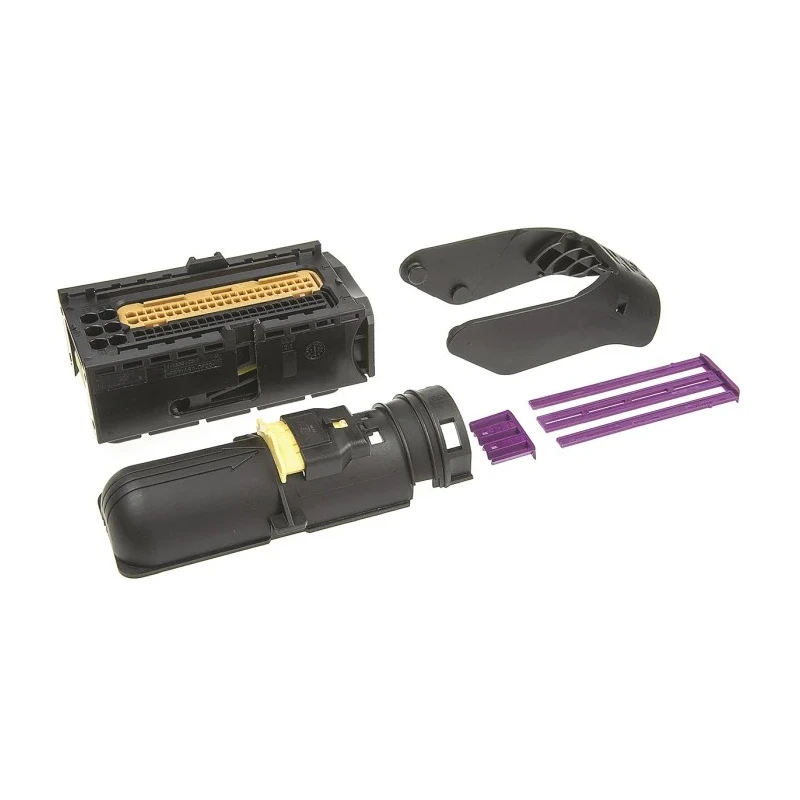

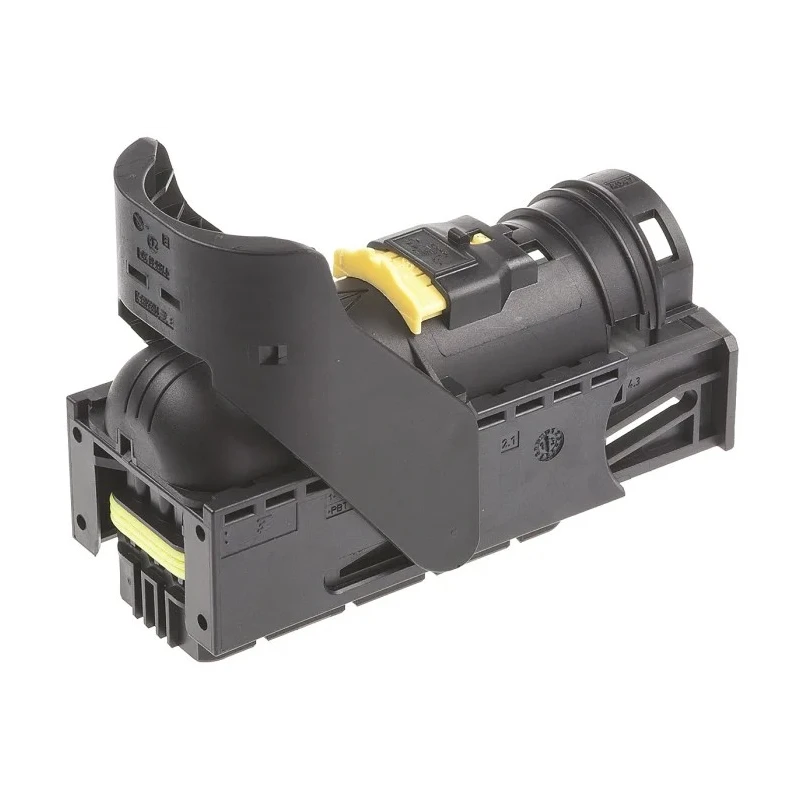

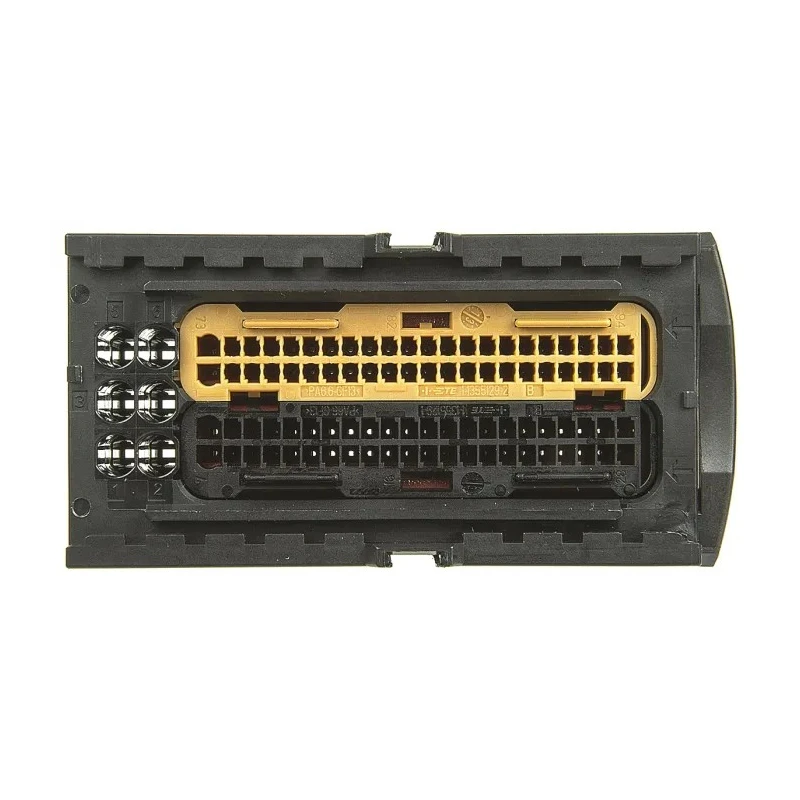

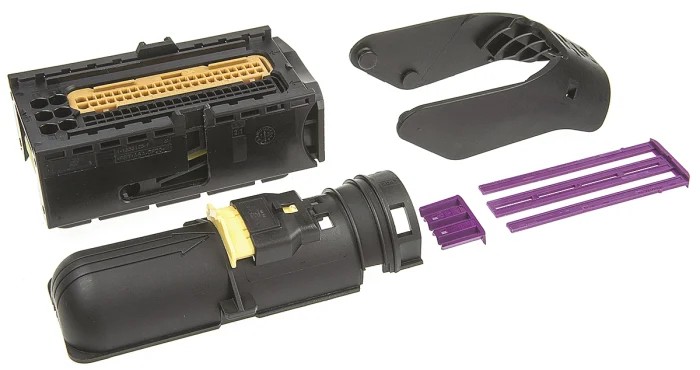

TE Connectivity Micro Quadlok System Automotive Connector Female Black Brown Cable 94 Way Crimp Termination 284743-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black, Brown |
| Height | 97mm |
| Model | 284743-1 |
| Depth | 74.3mm |
| Width | 46mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 4 |
| Number of Contacts | 94 |
| • Pitch | 2.54mm |
Key Features
- This connector has 94 contacts arranged in 4 rows for high-density automotive applications.
- Termination type is crimp with female gender suited for cable mount.
- Constructed with robust nylon housing material suitable for harsh environments.
- Operates reliably within temperature range from minus 40 degrees Celsius to 125 degrees Celsius.
- Includes polarization and keying to prevent mismating and ensure secure connections.
- Designed for automotive powertrain, safety, and body systems requiring compact, sealed, and waterproof connectors.
- Pitch between contact pins is 2.54 millimeters enabling high functional density.
- Durable stainless steel locking lances provide high primary terminal locking force.
Product Description
TE Connectivity 284743-1 is an automotive connector in the Micro Quadlok System series designed for high-density, robust cable connections in automotive environments.
This female connector housing accommodates 94 crimp contacts arranged in 4 rows with a pitch of 2.54 mm. The nylon housing ensures durability and resistance to harsh temperature conditions ranging from -40°C to 125°C. The black and brown color coded cable and housing aid in identification during installation and maintenance.
The design incorporates stainless steel locking lances that provide strong primary terminal locking force to securely retain the contacts within the housing. Polarization and keying features prevent mismating and enhance connection reliability. Sealed versions and additional wire seals are available for waterproof protection, suitable for powertrain, safety, driver information, body, and chassis automotive systems.
This connector supports critical automotive applications requiring compact size with dimensions of 97 mm height, 74.3 mm depth, and 46 mm width, facilitating efficient wiring harness design and installation.
This connector has 94 contacts arranged in 4 rows for high-density automotive applications. Termination type is crimp with female gender suited for cable mount. Constructed with robust nylon housing material suitable for harsh environments.
Operates reliably within temperature range from minus 40 degrees Celsius to 125 degrees Celsius. Includes polarization and keying to prevent mismating and ensure secure connections. Designed for automotive powertrain, safety, and body systems requiring compact, sealed, and waterproof connectors.
Pitch between contact pins is 2.54 millimeters enabling high functional density. Durable stainless steel locking lances provide high primary terminal locking force. Compact dimensions are approximately 97mm height, 74.3mm depth, and 46mm width.
This TE Connectivity Micro Quadlok System connector is ideal for use in automotive manufacturing, repair, and engineering, including industrial and commercial vehicle applications.
Explore more Automotive Connectors and components in the Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 125°C.
This connector has 94 contacts arranged in 4 rows.
The pitch between the contact pins is 2.54 mm.
The connector is constructed with robust nylon housing material suitable for harsh environments.
The dimensions of this connector are approximately 97 mm in height, 74.3 mm in depth, and 46 mm in width.
This connector uses crimp termination and is designed for female cable mount.
The connector includes polarization and keying features to prevent mismating and ensure secure connections.
It is designed for automotive powertrain, safety, and body systems requiring compact, sealed, and waterproof connectors.
The minimum operating temperature of this connector is -40°C.
The cable and housing are color coded in black and brown for identification during installation and maintenance.
It features durable stainless steel locking lances that provide a high primary terminal locking force.
The connector is manufactured in India.
