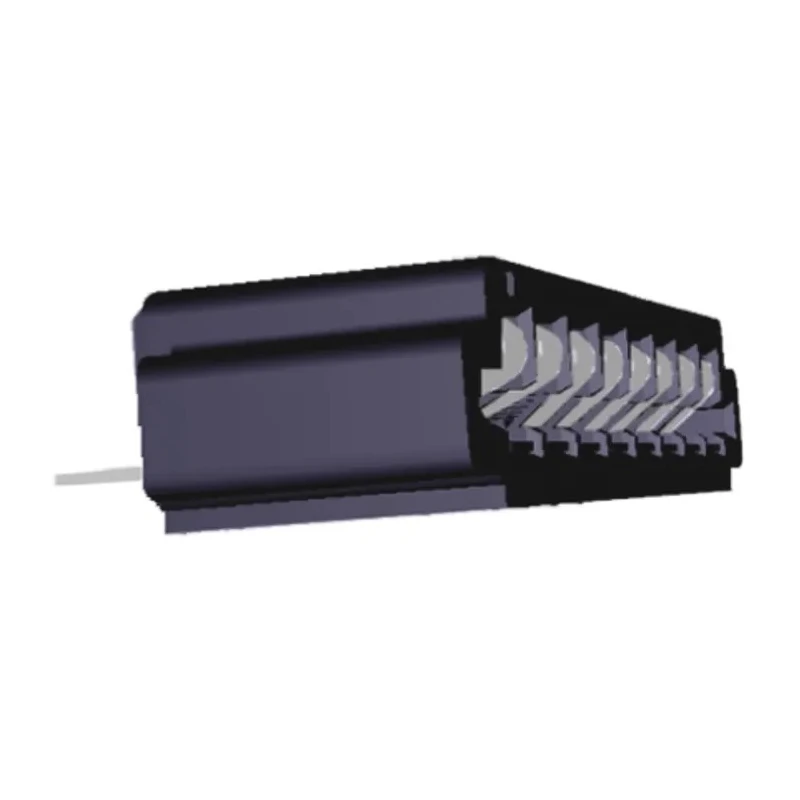

TE Connectivity Trio-Mate 2.54 mm Pitch 8 Way Straight Female FPC Connector Vertical Contact 5-520315-8

TE Connectivity 5-520315-8 Trio-Mate 2.54 mm Pitch 8 Way Straight Female FPC Connector is a high-quality electronic connector designed for reliable connection with flat flexible cables and flexible printed circuitry. Featuring vertical contacts and a pitch of 2.54 mm, this connector supports 8 contacts and provides excellent electrical and mechanical performance for industrial, electronic manufacturing, and PCB assembly applications.

The connector is made from phosphor bronze contacts plated with tin for corrosion resistance and excellent conductivity. Its housing is manufactured from black UL 94V-0 polyethylene terephthalate, providing robustness and compliance with safety standards. Designed for through-hole mounting, it offers durable attachment to printed circuit boards.

Operating safely up to 250V AC and rated for 1A current, the connector suits a broad range of electronic and electrical equipment. It supports operating temperatures from -55°C to 105°C, ensuring reliability under demanding environmental conditions. Its low insertion force (LIF) allows for repeated cable insertion and removal up to 25 times without degradation of performance, making it ideal for repairable and maintainable equipment.

These connectors are compatible with FFC or FPC cables with thickness from 0.13 mm to 0.38 mm and have a single row of contacts arranged in a straight orientation. They are particularly suited for applications in industrial electronics, telecommunications, instrumentation, and consumer electronics assembly.

Supports 8 contacts with phosphor bronze contact material. Operates at 250V AC voltage and 1A current rating. Features through hole mount type with vertical contact termination. Housing made of black UL 94V-0 polyethylene terephthalate for durability.

Suitable for temperature range from -55°C to 105°C. Connector is straight orientation with a 2.54 mm pitch spacing. Preloaded with socket contacts for easy assembly and reuse up to 25 times. Compatible with flat flexible cable (FFC) or flexible printed circuitry (FPC) thickness 0.13 to 0.38 mm.

Insertion force rated as Low Insertion Force (LIF) for easy cable insertion. Manufactured in India ensuring product quality and standards.

This TE Connectivity Trio-Mate FPC Connector is highly reliable and designed for seamless integration into electronic circuits and systems. It is an ideal choice for industrial electronics, telecommunications, and PCB manufacturing, offering durability and efficient connectivity with flexible flat cables. This connector improves production efficiency and maintenance operations.
