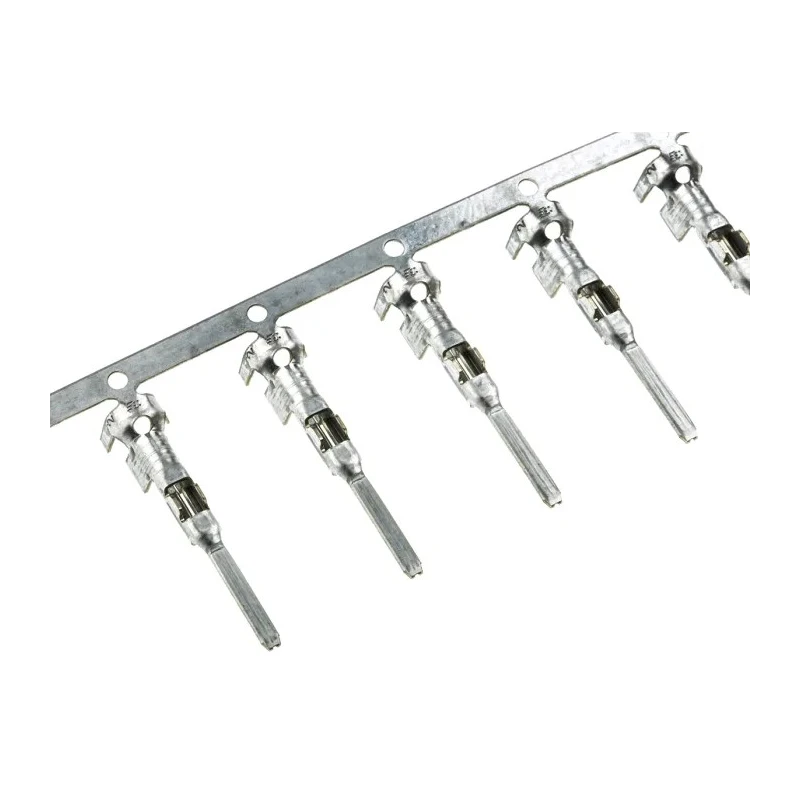

TE Connectivity MINI-MIC Series Male Crimp Terminal 14A Current Tin-Plated Brass 17-15 AWG 22.7mm Length 282109-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 14A |
| Length | 22.7mm |
| Model | 282109-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | MINI-MIC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| For Use With | AMP SUPERSEAL 1.5 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 17AWG |
| Maximum Wire Size AWG | 15AWG |
| Maximum Contact Resistance | 30mΩ |
Key Features
- Constructed from tin-plated brass ensuring corrosion resistance and durability.
- Compatible with AMP SUPERSEAL 1.5 Connector Housing for secure connections.
- Offers a reliable crimp termination type suitable for automotive and industrial applications.
- Designed to operate within a temperature range from -40°C to 125°C for harsh environments.
- Terminal length is precisely 22.7 mm for compact connector designs.
- Maximum contact resistance of 30 milliohms ensures low power loss in circuits.
- Features a male gender contact ensuring secure fit in female connectors.
- Compatible with waterproof designs offering IP67 sealing when used with proper wire seals.
Product Description
TE Connectivity 282109-1 MINI-MIC Series Male Crimp Terminal is engineered for high reliability in electrical connections requiring 14A current capacity. It supports wire sizes from 0.75 mm² (17 AWG) to 1.5 mm² (15 AWG), making it ideal for automotive, agricultural, and industrial machinery applications.
Manufactured from tin-plated brass, this male Crimp Terminal offers excellent corrosion resistance and conductive performance. The 22.7 mm length provides compatibility with AMP SUPERSEAL 1.5 Connector Housing, widely used in waterproof and vibration-resistant systems.
Designed to meet the demanding conditions found in automotive environments, the terminal withstands temperatures from -40°C to 125°C and maintains low contact resistance of 30 mΩ to minimize power loss and ensure reliable signal transmission.
The MINI-MIC series integrates a two-step positive locking crimp design to secure the terminal inside the connector housing, contributing to IP67-level waterproofing when combined with appropriate wire seals. This makes it suitable for trucks, buses, off-road vehicles, and similar heavy-duty equipment requiring durable electrical connections.
The AMP SUPERSEAL 1.5mm connectors and terminals meet increasing industrial safety and reliability standards and are designed for use in diverse applications such as sensor devices, oil pressure senders, and water temperature monitoring within harsh industrial settings.
Constructed from tin-plated brass for durability and conductivity. Engineered for automotive and industrial machinery applications. Operational temperature range from -40°C up to 125°C to endure harsh environments. Positive two-step locking mechanism ensures secure terminal retention.
Part of the widely used AMP SUPERSEAL 1.5 connector system providing waterproof solutions. Low contact resistance of 30 milliohms for efficient power transmission. Length of 22.7mm designed for compact connector housings.
Rated for 14A current supported by 17 to 15 AWG wire sizes. Explore the range of TE Connectivity connectors and terminals at EnvMart to find dependable components for your industrial and automotive wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current capacity of 14A, making it suitable for various automotive and industrial applications.
It supports wire sizes from 0.75 mm² (17 AWG) to 1.5 mm² (15 AWG).
The terminal length is precisely 22.7 mm, designed for compact connector applications.
The maximum operating temperature is 125°C, allowing it to function in harsh environments.
It can operate at temperatures as low as -40°C, making it suitable for extreme conditions.
It features a reliable crimp termination type, ensuring secure connections in various applications.
It is compatible with AMP SUPERSEAL 1.5 Connector Housing, which is widely used in waterproof applications.
The maximum contact resistance is 30 milliohms, which helps minimize power loss in circuits.
This terminal is constructed from tin-plated brass, providing corrosion resistance and good conductivity.
It features a male gender contact, ensuring a secure fit in female connectors.
It is designed for automotive, agricultural, and industrial machinery applications, particularly in harsh environments.
When used with proper wire seals, it offers IP67 sealing, making it suitable for waterproof designs.
