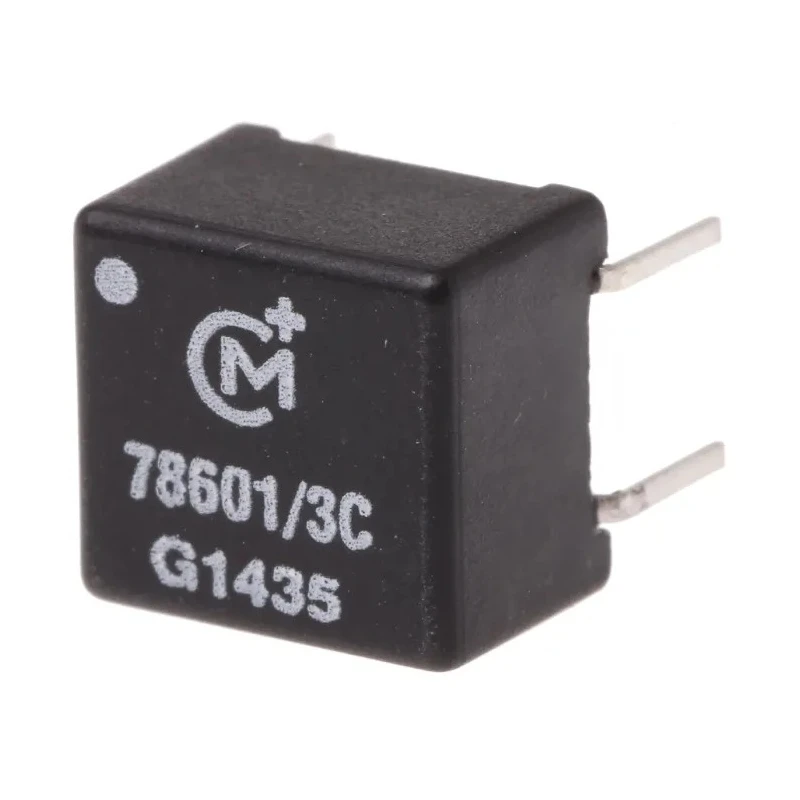

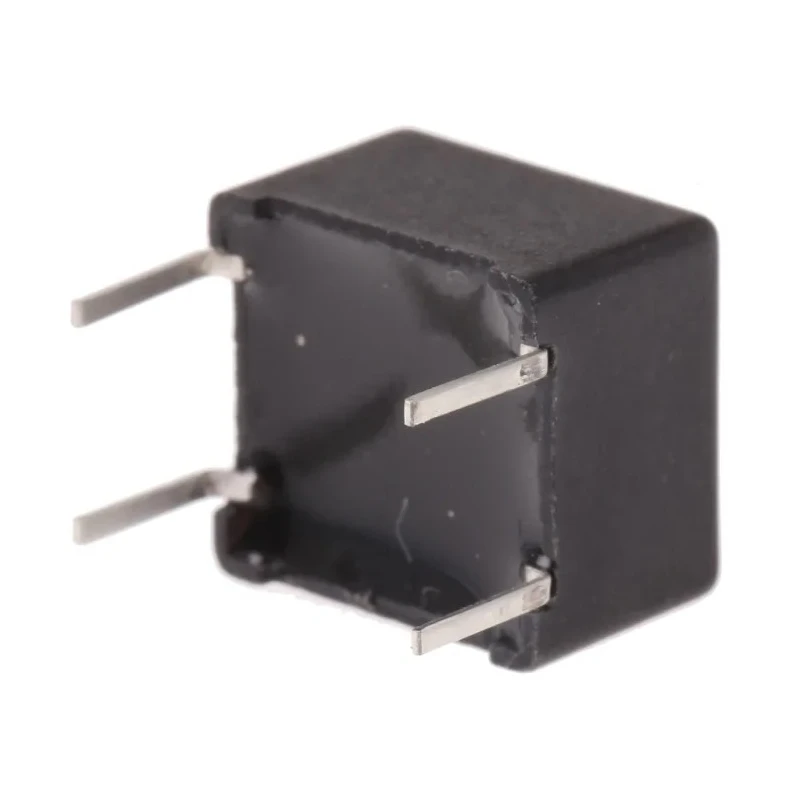

Murata Power Solutions Through Hole Pulse Transformer 1:1 Turns Ratio, 200μH Primary Inductance, 0.25Ω Primary 78601/3C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Length | 9.52mm |
| Model | 78601/3C |
| Depth | 6.35mm |
| Gross Weight | 1.1g |
| Width | 9mm |
| Mount Type | Through Hole |
| Series | 786 |
| Termination Type | Pin |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Number of Pins | 6 |
| Isolation Voltage | 1kV |
| Primary Inductance | 200μH |
| Turns Ratio | 1:1 |
| Primary DC Resistance | 0.25Ω |
| Leakage Inductance | 0.2μH |
Key Features
- Designed for general-purpose pulse transformer applications.
- Utilizes through hole mount type with 6 pins for reliable connection.
- Effective in coupling, thyristor/triac firing, and switch mode power supply tasks.
- Primary DC resistance of 0.25 ohms ensures minimal power loss.
- Compact size featuring 9.52mm length, 9mm width, and 6.35mm depth for efficient PCB integration.
- High isolation voltage rating of 1 kV enhances operational safety.
- RoHS compliant and manufactured with adherence to quality standards.
- Operates within a temperature range of 0°C to 70°C for various environmental conditions.
Product Description
Murata Power Solutions 78601/3C Through Hole Pulse Transformer is engineered for precise power management in electronic applications. Featuring a 1:1 turns ratio and primary inductance of 200μH, it is ideal for coupling, thyristor and triac firing circuits, as well as small-sized switch mode power supplies.
This pulse transformer uses a through hole mount style with six pin terminations, facilitating secure and stable connections on printed circuit boards. Its primary DC resistance of 0.25Ω ensures efficient power transfer with minimal energy dissipation.
The unit measures 9.52mm in length, 9mm in width, and 6.35mm in depth, making it compact and suitable for space-constrained installations. It has a robust isolation voltage rating of 1 kV, enhancing safety in industrial and commercial environments. The device complies with RoHS standards to support sustainable and environmentally conscious applications.
With an operating temperature range from 0°C to 70°C and leakage inductance of 0.2μH, this transformer offers reliable performance across various conditions. Weighing just 1.1 grams, it is designed for easy handling and integration into a wide range of electronic systems.
General-purpose pulse transformer for electronic components. Through hole mounting with 6-pin termination. Compact size for effective PCB integration. 1 kV isolation voltage rating for operational safety. RoHS compliant for environmental safety.
Common applications include industrial electronics, power supplies, telecommunications, and automation systems. This transformer is manufactured in China with focus on quality and compliance.
Explore more Pulse Transformers and electronic components by Murata Power Solutions to enhance your industrial projects on EnvMart.
