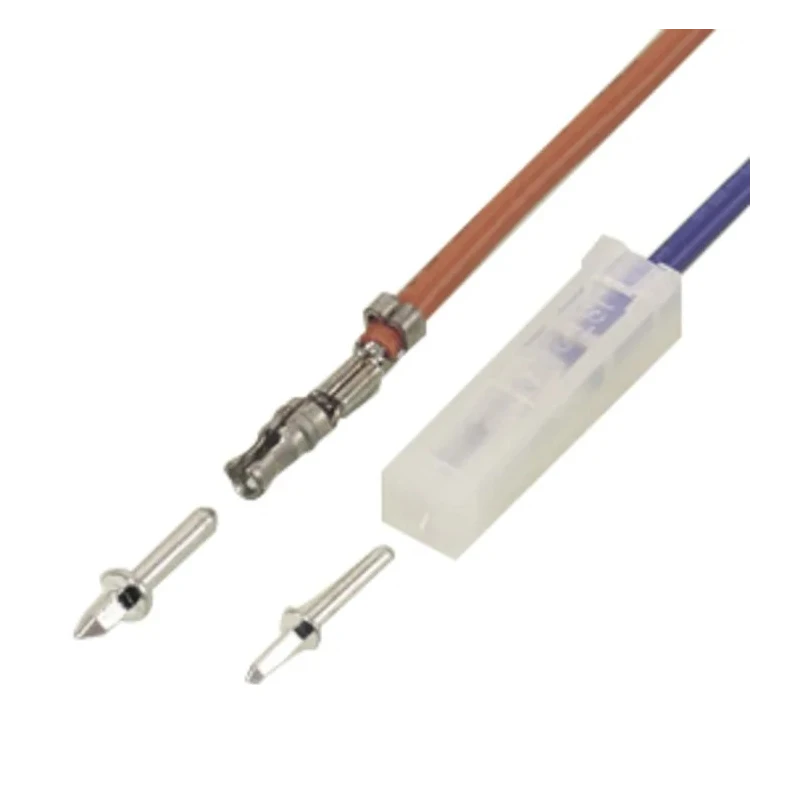

JST SMF Series Male Crimp Terminal 5A Current, 26 AWG Min Crimp, 20 AWG Max, Brass Contact, Tin Plating SMF-01T-1.0

The JST SMF-01T-1.0 male crimp terminal from the SMF series is engineered for electronic and electrical applications requiring reliable wire termination. It is specifically designed for use with SMF connector housings, supporting wire sizes from 26 AWG minimum to 20 AWG maximum, and capable of carrying a current of up to 5A.

Constructed from brass contact material with a tin plating, this Crimp Terminal ensures excellent electrical conductivity and corrosion resistance. Its funnel-shaped lead-in design facilitates smooth pin insertion while maintaining a high retaining force for durable connections.

The terminal performs reliably across a wide temperature spectrum, from -25°C to 85°C, making it suitable for various industrial and commercial environments. The crimp termination method provides secure mechanical and electrical connections for wires, catering to SMT and through-hole PCB assemblies.

Maximum contact resistance is maintained at 15 milliohms, ensuring minimal signal loss and efficient power transmission. The product adheres to no specific standards or approvals but is designed for quality and precision.

Typical industrial use cases include electronics manufacturing, power connector assemblies, automotive wiring harnesses, and other electrical systems where dependable crimped connections are vital.

The terminal’s brass contact with tin plating provides excellent conductivity and corrosion resistance. Supports wires ranging from 26 AWG to 20 AWG with current rating of 5A. Operating temperature range from -25°C to 85°C ensures versatility in various environments.

Funnel-shaped lead-in optimizes insertion and retention forces for secure connections. Crimp termination type guarantees strong mechanical and electrical wire connections. For more connector solutions and accessories, explore the Electronics & Electricals sections on EnvMart.
