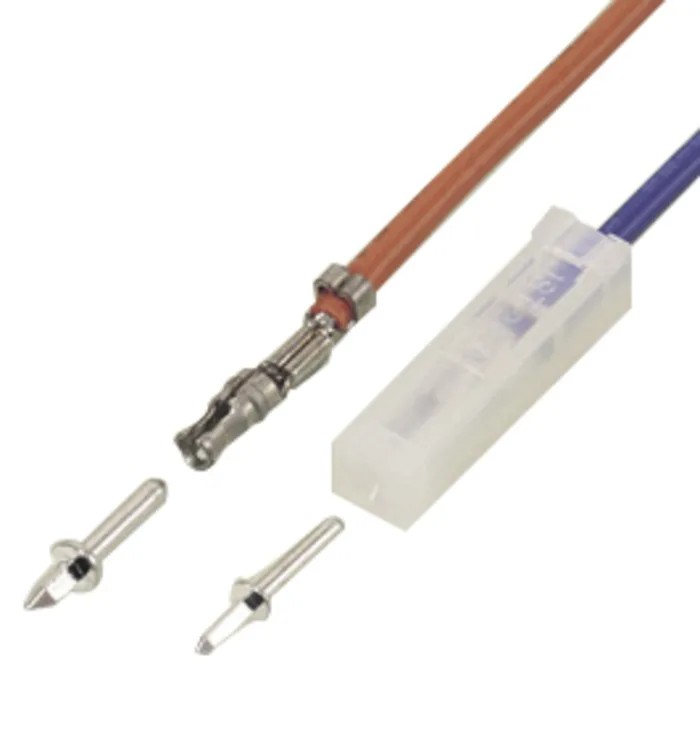

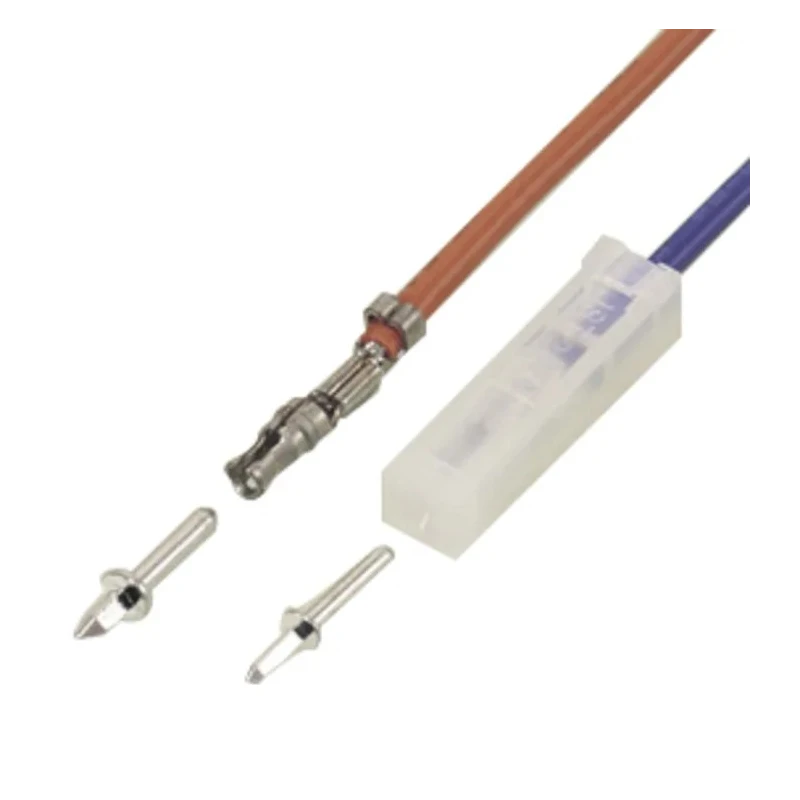

JST SMF Series Female Crimp Terminal 5A Current, Tin Plated Brass Contact, 26 AWG Min - 20 AWG Max SMF-01T-1.3

Free Delivery in India | Lowest Global Shipping Charges

JST SMF Series Female Crimp Terminal 5A Current, Tin Plated Brass Contact, 26 AWG Min - 20 AWG Max SMF-01T-1.3



Category Crimp Terminal Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Current	5A
Model	SMF-01T-1.3
Gender	Female
Contact Material	Brass
Series	SMF
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	SMF Connector Housing
Standards/Approvals	Certified LR20812, Recognised E60389, RoHS
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	15mΩ

Key Features

Suitable for wire sizes ranging from 26 AWG minimum to 20 AWG maximum.
Contact plating provides excellent corrosion resistance with tin material.
Maximum contact resistance is 15 milliohms ensuring reliable electrical connection.
Operates efficiently within a temperature range of -25°C to 85°C.
Features a funnel-shaped lead-in to ease insertion and deliver high retaining force.
Certified to standards LR20812 and Recognised under E60389 with RoHS compliance.
Termination type is crimp, compatible with 1.0mm and 1.3mm diameter pins.

Product Description

The JST SMF Series Female Crimp Terminal SMF-01T-1.3 is engineered for precise and reliable electrical connections in electronic and industrial applications. Manufactured with brass contact material and tin plating, this terminal ensures low contact resistance of 15 milliohms and stable conductivity, suitable for currents up to 5 A.

It supports wire sizes from 26 AWG minimum to 20 AWG maximum with a minimum wire cross-section of 0.1 mm² and maximum of 0.5 mm². Operating temperature spans from -25°C to 85°C, making it viable for varied environmental conditions.

Designed for use with SMF connector housings, the terminal incorporates a funnel-shaped lead-in to facilitate insertion and maintain a firm, balanced retention force. Its crimp termination type supports pin diameters of 1.0 mm and 1.3 mm, providing flexibility in connector assembly.

Supports current rating of 5 A for dependable electrical performance. Brass contact construction with tin plating resists corrosion. Operating temperature from -25°C to 85°C for industrial and commercial applications. Crimp type termination ensures secure attachment to wires.

Compliant with standards LR20812 and Recognised E60389 and RoHS certified for safety and environmental sustainability. Perfect for use in electronic components, power connectors, industrial automation, and manufacturing electronics.

Facilitates ease-of-installation and high retention force in connector systems.

This product is ideal for industrial, laboratory, electronics manufacturing, and repair settings, ensuring a cost-effective and durable connection solution. The precise construction and compliance with international standards make it a trustworthy choice for critical PCB and wire housing assemblies.
