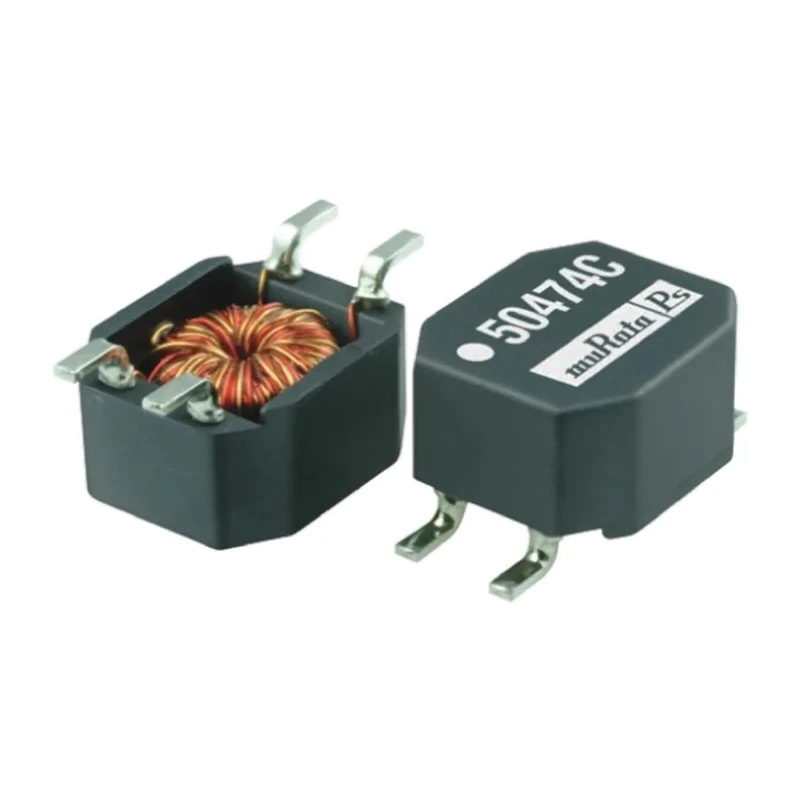

Murata Power Solutions Surface Mount Common Mode Choke 470 μH -30 to 50 % Tolerance 700 mA IDC 50474C

Murata Power Solutions 50474C is a surface mount common mode choke featuring 470 μH inductance with a tolerance of -30 to 50 %. It supports a maximum DC current of 700 mA and operates reliably across the temperature range of -40°C to 85°C. This wirewound inductor is designed compactly with dimensions 7 mm length, 3.6 mm height, and 5.9 mm depth, optimized for high-density electronic circuit board applications.

The 5000 series common mode chokes are effective for attenuating common mode noise signals up to 100 MHz, making them ideal for use in low current switching power supplies, telecommunication devices, and signal line filtering. Their surface mount termination style facilitates automated PCB assembly and high production rates.

This product is RoHS compliant ensuring environmental safety and is constructed using UL 94V-0 rated packaging material. Its low maximum DC resistance of 300 mΩ enhances power efficiency. The 4-pin configuration supports stable electrical connections in compact layouts.

Provides 470 μH inductance suitable for line filtering up to 100 MHz frequency. Maximum DC current of 700 mA supports low current switching power supply needs. Dimensions 7 mm length, 3.6 mm height, and 5.9 mm depth allow compact PCB integration.

Wirewound construction ensures stable inductance and durability. Operating temperature spans from -40°C to 85°C for a wide range of environments. RoHS compliant and uses UL 94V-0 packaging material for safety and reliability.

Low maximum DC resistance of 300 milliohms reduces power losses. Supplied on reel for efficient automated manufacturing process integration.

This common mode choke is suited for applications in industrial electronics, telecommunications, power supplies, and other electronic systems requiring effective noise suppression.
