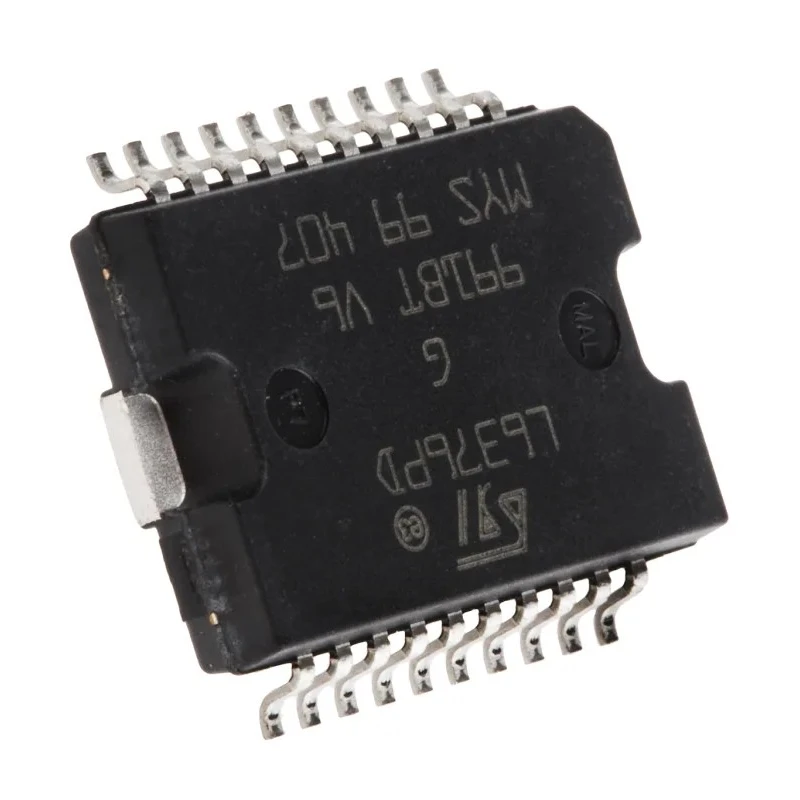

STMicroelectronics High Side 4-Channel Power Switch IC PowerSO 20-Pin 9.5-35V 500mA L6376D

STMicroelectronics L6376D is a new generation high-side driver power switch IC designed for driving multiple loads with four independent MOSFET output switches. Operating efficiently across a supply voltage range of 9.5 to 35 V and a maximum output current of 500 mA, it enables robust power management in electronic circuits.

Built using Multipower BCD technology, the L6376D integrates advanced features such as internal current limiting and non-dissipative over-current protection to safeguard both the device and connected loads. The device includes thermal shutdown and under voltage lockout with hysteresis to prevent operation outside safe parameters.

The compact PowerSO 20-pin surface mount package measures 16 mm in length, 11.1 mm in width, and 3.3 mm in height, allowing for space-saving PCB designs. It complies with IEC 61000-4-4 standards for ESD protection up to ±2kV (human body model), enhancing reliability.

This power switch IC is ideal for industrial and automotive electronic applications where driving inductive, capacitive, or resistive loads with precision and safety is essential. Diagnostic outputs for under voltage, over temperature, and over current conditions facilitate system monitoring and fault detection.

The L6376D also features an external asynchronous reset input and a presettable delay for overcurrent conditions providing flexible control and protection mechanisms. Utilizes Multipower BCD technology for reliable switching performance.

Includes internal current limit and over-current protection features. Provides thermal shutdown and under voltage lockout with hysteresis. Equipped with diagnostic output for enhanced monitoring. Compact PowerSO 20-pin surface mount package design.

Operating temperature range from -25°C to 85°C ensures robustness. Supports supply voltage from 9.5 V to 35 V. Designed for applications in industrial automation, power management, and control systems.

This product is classified under Power Switch ICs within Power Management ICs, suitable for advanced semiconductor and power management solutions offered by STMicroelectronics at EnvMart. Explore more products in the Power Switch IC category to find complementary components for your design requirements.
