| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.6mm |
| Length | 1.2mm |
| Model | BAT54KFILM |
| Width | 0.8mm |
| Mount Type | Surface |
| Series | BAT54 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 300mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 900mV |
| Peak Reverse Recovery Time trr | 5ns |

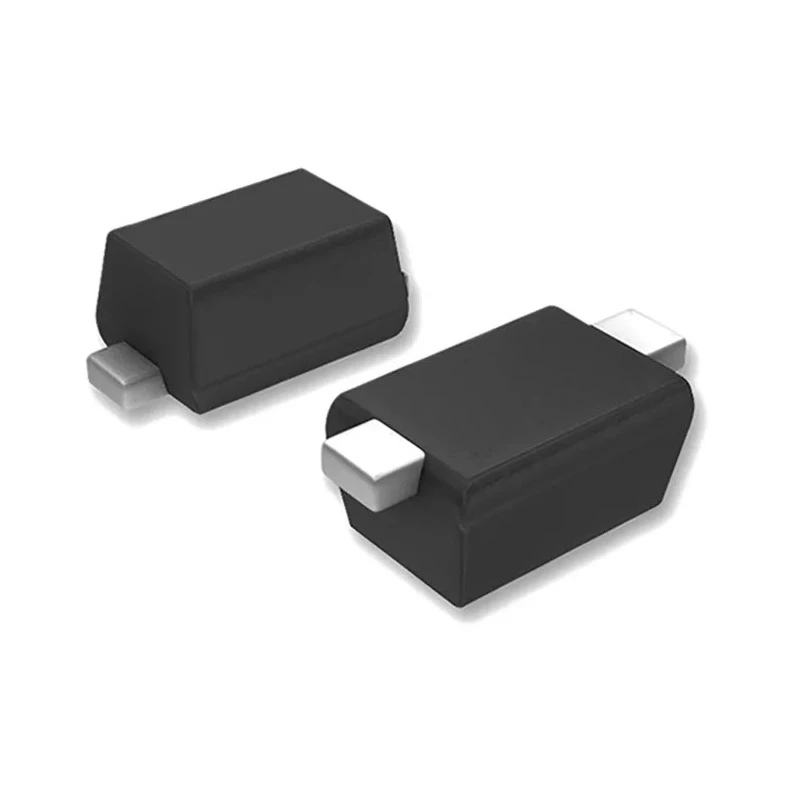

STMicroelectronics BAT54KFILM is a Schottky barrier diode designed for efficient rectification in electronic circuits. This surface mount diode comes in a compact 2-pin SOD-523 package, making it ideal for space-constrained applications. It is rated for a maximum continuous forward current of 300 mA and can withstand peak reverse repetitive voltages up to 40 V.
With a low forward voltage of 900 mV and a peak reverse current as low as 1 μA, the BAT54KFILM provides excellent performance with minimal power loss, making it highly suitable for power-sensitive designs. The diode operates reliably over a wide temperature range from -40°C to 150°C, ensuring durability in harsh environmental conditions.
This diode features a fast peak reverse recovery time of 5 nanoseconds and a peak non-repetitive forward surge current of 1 A, allowing it to handle sudden transient currents effectively. The device dimensions are compact, with a length of 1.2 mm, width of 0.8 mm, and height of 0.6 mm, supporting miniaturized circuit boards.
The BAT54KFILM is a single diode configuration in the BAT54 series, used primarily in electronic component assemblies, power and connector modules, and discrete semiconductor applications. It's well-suited for use in automotive electronics, industrial controls, and communication equipment requiring Schottky type rectifiers for fast switching and low forward voltage drop.
Compact surface mount design in SOD-523 package. High efficiency with low forward voltage drop. Wide operating temperature range improves reliability. Fast switching speed reduces power dissipation. Robust surge current handling enhances durability.
Minimal leakage current preserves circuit integrity. Small size supports dense PCB layouts. Single diode configuration simplifies applications. This diode is a dependable choice for designers looking to achieve high performance and efficiency in compact electronic designs.
