STMicroelectronics Thyristor 800 V 610 A 32 A 80 mA 1.9 V TOP3 3-Pin BTW69-800RG

Free Delivery in India | Lowest Global Shipping Charges

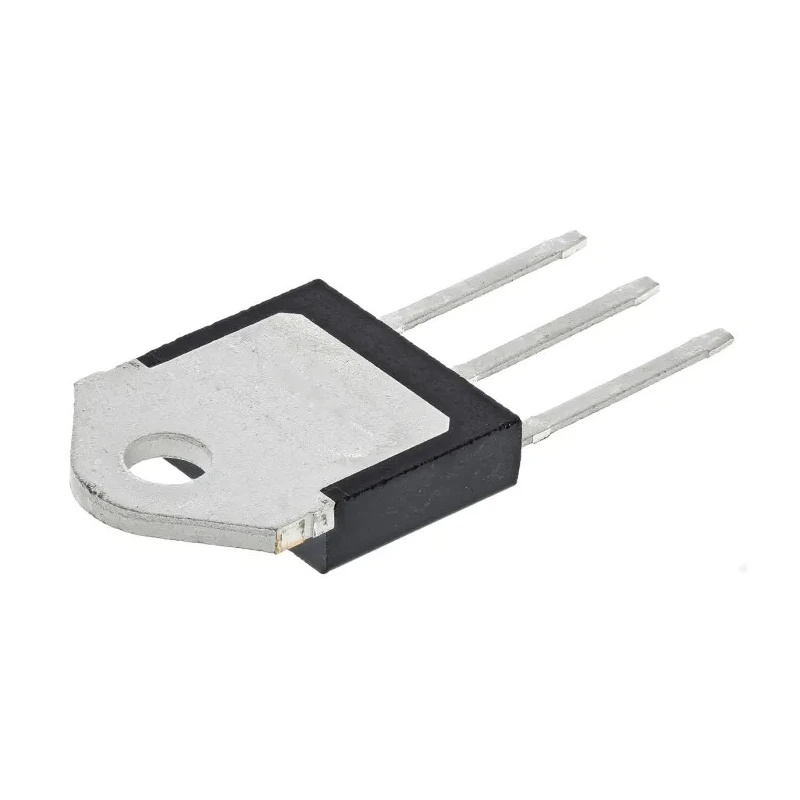

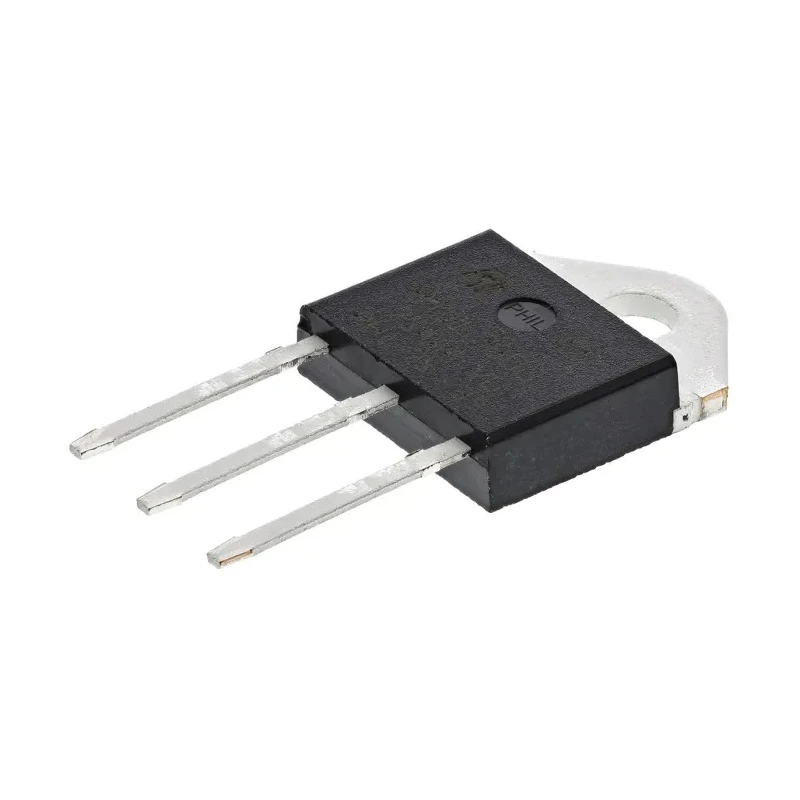

STMicroelectronics Thyristor 800 V 610 A 32 A 80 mA 1.9 V TOP3 3-Pin BTW69-800RG

Name: STMicroelectronics Thyristor 800 V 610 A 32 A 80 mA 1.9 V TOP3 3-Pin BTW69-800RG
Brand: STMicroelectronics
SKU: 219218
Price: 10.4 USD
Availability: InStock



Category Thyristors Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	15.1mm
Length	40mm
Model	BTW69-800RG
Width	21.1mm
Mount Type	Through Hole
Series	BTW67 and BTW69
Maximum Operating Temperature	125°C
Package Type	TOP3
Standards/Approvals	UL (File ref: E81734)
Pin Count	3
Rated Average On-State Current Irms	32A
Repetitive Peak Reverse Voltage VDRM	800V
Surge Current Rating	610A
Maximum Gate Trigger Current Igt	80mA
Maximum Holding Current Ih	150mA
Maximum Gate Trigger Voltage Vgt	1.3V
Peak On-State Voltage	1.9V
Repetitive Peak Off-State Current	0.01mA
Standards/ApprovalsUL (File ref	E81734)
UL (File ref	E81734)

Key Features

This device features a TOP3 3-pin package optimized for through-hole mounting.
It has a maximum gate trigger current of 80 mA ensuring precise triggering control.
The peak on-state voltage is 1.9 V, allowing efficient conduction.
The component operates reliably up to a maximum temperature of 125°C.
The device series includes BTW67 and BTW69 providing a range of robust semiconductors.
Its repetitive peak off-state current is minimal at 0.01 mA, contributing to low leakage.
Pin count is 3 with maximum holding current of 150 mA, suitable for industrial applications.

Product Description

STMicroelectronics BTW69-800RG Thyristor is a robust power semiconductor designed for high current and voltage applications. Featuring an 800 V repetitive peak reverse voltage and capable of handling surge current ratings up to 610 A, this device excels in power control and switching in industrial and electronic circuits.

Housed in a TOP3 3-pin through-hole package, the device offers excellent thermal stability and durability with a maximum operating temperature of 125°C. It incorporates a maximum gate trigger current of 80 mA and a peak on-state voltage of 1.9 V, enabling efficient and reliable activation in controlling electric power loads.

This thyristor is ideal for use in power management, AC/DC power control, and switching applications in industrial automation, motor control circuits, and power supplies. The low repetitive peak off-state current of 0.01 mA reduces leakage current and improves overall efficiency.

The device conforms to UL standards (File Ref: E81734) ensuring safety and performance reliability. Its compact dimensions of 40 mm length, 21.1 mm width, and 15.1 mm height facilitate integration into various electronic assemblies.

This product is supplied in a tube packaging ready for insertion into machinery, enhancing production efficiency. This thyristor series, BTW67 and BTW69, provides a reliable option for power switching needs. The device's 3-pin configuration simplifies circuit design and assembly.

Its robust construction supports high surge currents and long operational life in demanding environments. Suitable for industrial, manufacturing, and power electronics applications requiring high current switching. Explore more power semiconductor products and components on EnvMart, your trusted industrial electronics partner.

Explore more products in our Thyristors category.
