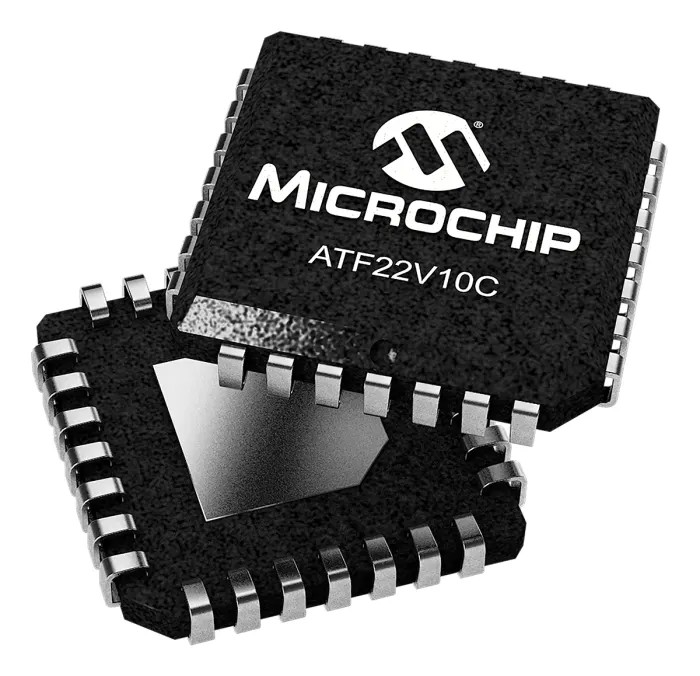

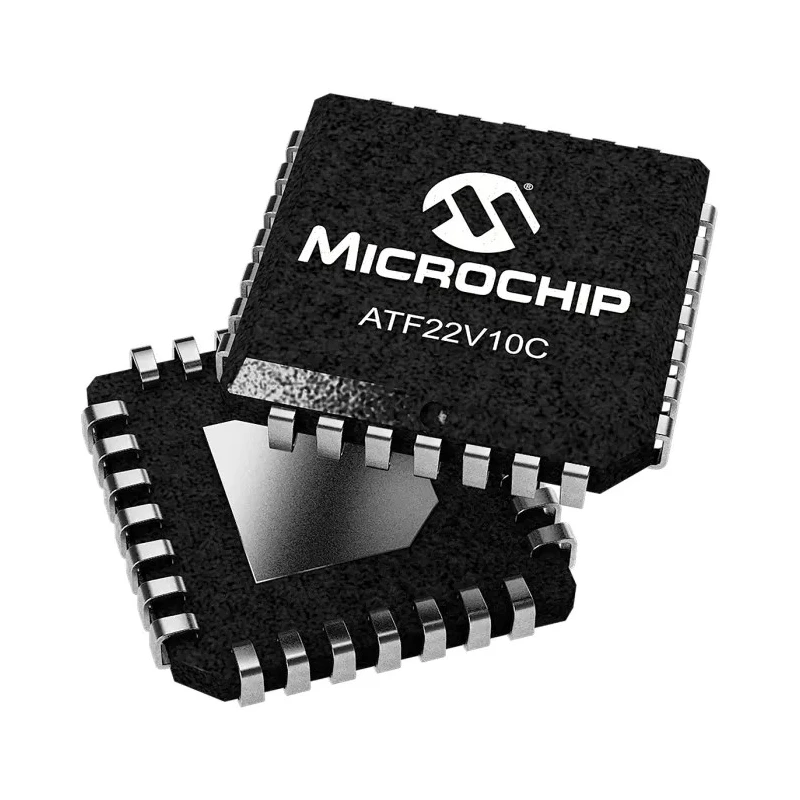

Microchip Simple Programmable Logic Device 350 Gates, 10 Macro Cells, 10 I/O, 125 MHz Surface Mount PLCC ATF22V10C-10JU

Microchip ATF22V10C-10JU is a high-performance Simple Programmable Logic Device (SPLD) featuring 350 gates, 10 macro cells, and 10 user inputs/outputs (I/Os). It supports in-system programmability and re-programmability, enabling flexible design iterations directly on the hardware.

This SPLD is packaged in a 28-pin PLCC surface mount package, making it suitable for compact PCB layouts in industrial, commercial, and electronic manufacturing environments. It operates at a maximum internal frequency of 125 MHz, providing fast logic switching capabilities.

The device supports a supply voltage range from 4.5 V to 5 V and offers a maximum propagation delay time of 10 nanoseconds, making it ideal for timing-critical applications across various electronics systems.

With an operating temperature range from -40°C to 85°C, the ATF22V10C-10JU reliably performs in harsh industrial and commercial environments. Compliance with the RoHS directive ensures it meets current environmental standards, promoting responsible electronic component use.

The compact dimensions - 4.06 mm in height and 11.58 mm in length - facilitate integration into space-constrained designs. Originating from the Philippines, this product exemplifies Microchip's quality and reliability in programmable logic products.

This device supports re-programmability and is surface mountable with a 28-pin PLCC package. Operates with a supply voltage range of 4.5 V to 5 V ensuring stable performance. Offers a maximum propagation delay time of 10 ns for high-speed logic operations.

Designed to operate within a temperature range of -40°C to 85°C for industrial and commercial applications. Complies with RoHS standards for environmental safety. Compact physical dimensions with a height of 4.06 mm and length of 11.58 mm.

Manufactured in the Philippines ensuring quality craftsmanship.

The Microchip ATF22V10C-10JU Simple Programmable Logic Device is well suited for use in electronic component manufacturing, semiconductor design, industrial control systems, and automation equipment. It allows design engineers to implement custom logic functions with ease while maintaining high performance and environmental compliance.
