Vishay Phase Control Thyristor SCR, TO-247 Package, 800 V Repetitive Peak Reverse Voltage, 20 A Rated Average 30TPS08PBF

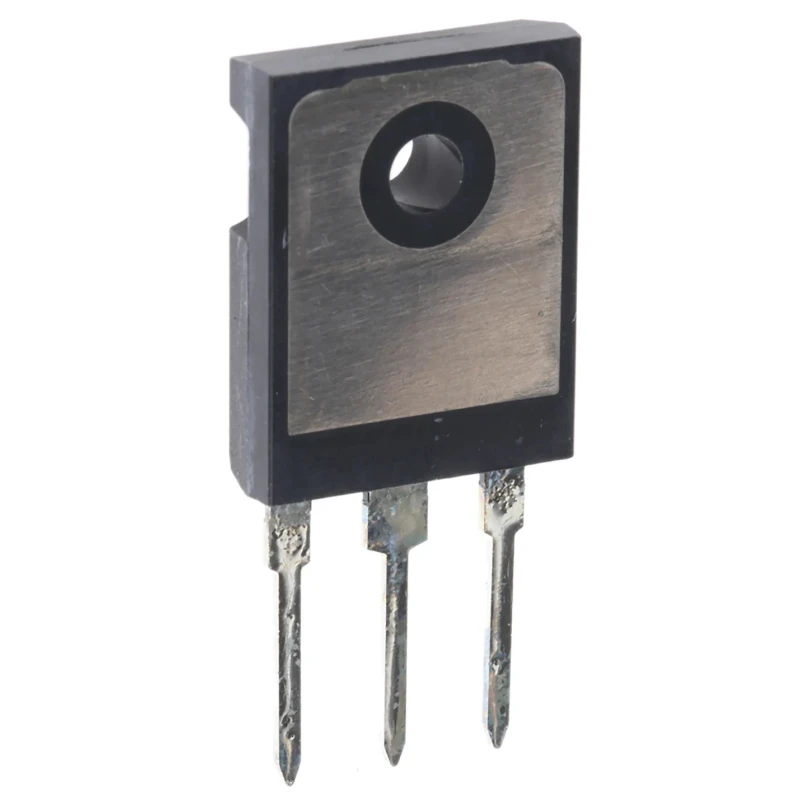

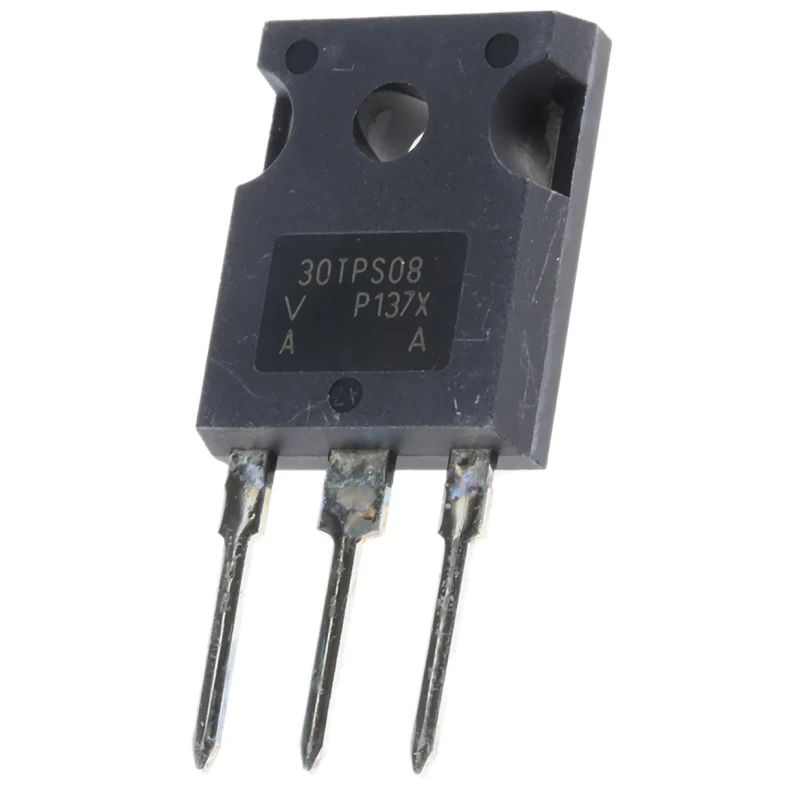

Vishay 30TPS08PBF is a phase control thyristor designed as a silicon-controlled rectifier (SCR) in a TO-247 package. It supports a repetitive peak reverse voltage of 800 V and a rated average on-state current of 20 A, making it suitable for high-voltage, high-current applications.

This thyristor features a maximum surge current rating of 300 A, enabling it to withstand transient overload conditions effectively. With a maximum gate trigger current of 60 mA and a maximum gate trigger voltage of 2.5 V, it offers precise control for switching operations.

The device is configured with three pins and designed for through-hole mounting, offering compatibility with standard industrial assembly processes. The maximum operating temperature is rated at 125°C with a minimum operational temperature of -40°C, ensuring functionality across a broad temperature range.

The peak on-state voltage of 1.3 V contributes to efficient conduction with reduced power loss. Its robust build negates the need for approvals or automotive standards and fits well for demanding electrical environments.

Typical applications for the Vishay 30TPS08PBF include battery chargers, welders, plating equipment, regulated power supplies, temperature control systems, and speed control circuits. It is suited for industrial, manufacturing, and HVAC uses that require reliable phase control Thyristors.

Rated for average on-state current of 20 A defining continuous current capacity. Operates with repetitive peak reverse voltage of 800 V ensuring high-voltage tolerance. Surge current rating of 300 A allows handling transient overloads effectively.

Maximum gate trigger current is 60 mA facilitating gate control sensitivity. Designed with TO-247 package type suitable for through-hole mounting. Maximum operating temperature reaches 125°C ensuring reliability under thermal stress.

Pin count is 3 allowing standard SCR connections. Maximum holding current is 100 mA maintaining conduction once triggered. Minimum operating temperature -40°C suitable for cold environments. Peak on-state voltage is 1.3 V optimizing power dissipation.
