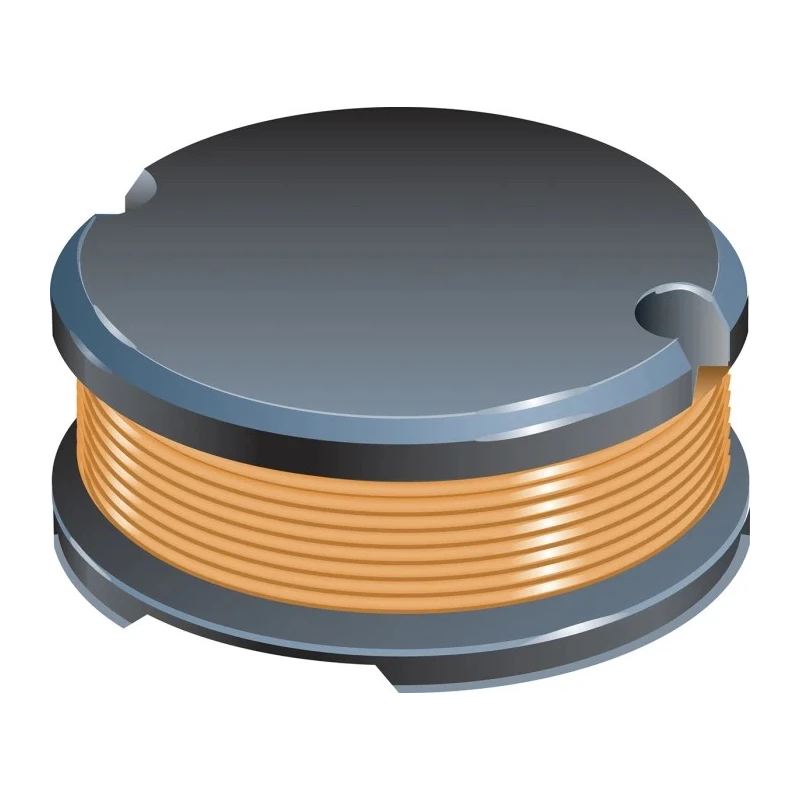

Bourns Wirewound Surface Mount Inductor 2.2 μH Ferrite DR Core ±20% 2.8A 0604 Package SDR0604
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.8mm |
| Brand | Bourns |
| Height | 4.8mm |
| Length | 5.8mm |
| Model | SDR0604 |
| Depth | 5.8mm |
| Packaging | Tape & Reel |
| Series | SDR0604 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | 0604 |
| Maximum DC Current | 2.8A |
| Maximum DC Resistance | 60mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 79MHz |
| Minimum Quality Factor | 33 |
| Inductor Construction | Ferrite Core |
Key Features
- Compact 0604 package size measuring 5.8mm diameter and 4.8mm height.
- Ferrite DR core construction for stable inductance and low losses.
- Surface mount termination suitable for automated PCB assembly.
- Inductance tolerance of ±20% ensures predictable performance.
- Maximum DC resistance of 60 milliohms reduces power loss.
- Operates across -40°C to +125°C temperature range reliably.
- High self-resonant frequency up to 79 MHz supports high frequencies.
- Minimum quality factor of 33 enables efficient energy storage.
Product Description
Bourns SDR0604 Wirewound Surface Mount Inductor delivers precise inductance of 2.2 μH with ±20% tolerance, featuring a Ferrite DR core construction optimized for performance in demanding electronics applications. Designed in a compact 0604 package with a small diameter of 5.8mm and a profile height of 4.8mm, this inductor is well suited for surface mount technology assembly processes.
Its maximum DC current rating of 2.8A and low maximum DC resistance of 60 milliohms ensure minimal power loss and efficient operation, even under continuous load. The device operates safely over a broad temperature range from -40°C up to +125°C, making it ideal for environments with thermal fluctuations.
With a high self-resonant frequency of up to 79 MHz and a minimum quality factor of 33, this inductor supports high-frequency switching power supplies and signal filtering. Its unshielded wirewound construction using a ferrite core provides stable inductance characteristics for use in portable communications devices, camcorders, and LCD TVs.
Packaging is provided in Tape & Reel format for ease of automated mounting. This product complies with RoHS directives, assuring adherence to environmental standards. Compact 0604 surface mount package with precise inductance.
Ferrite DR core ensures stable and efficient inductor performance. Designed for high-frequency and power electronics applications. Wide operating temperature range from -40°C to 125°C. RoHS compliant for environmentally safe use.
This Surface Mount Inductor is ideal for industrial, laboratory, telecom, and consumer electronics manufacturing sectors. Its robustness and performance optimize power supply modules and signal integrity circuits. Explore more Bourns components in EnvMart to enhance your electronic assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.2 μH with a tolerance of ±20%.
This inductor has a diameter of 5.8mm and a height of 4.8mm, fitting into a compact 0604 package size.
The maximum DC current rating for this unit is 2.8A.
It features a maximum DC resistance of 60 milliohms, which helps reduce power loss.
This model operates reliably across a temperature range of -40°C to +125°C.
The maximum self-resonant frequency of this inductor is up to 79 MHz, making it suitable for high-frequency applications.
The minimum quality factor for this unit is 33, which indicates efficient energy storage.
It uses a Ferrite DR core material, which provides stable inductance characteristics.
The inductor is packaged in Tape & Reel format, suitable for automated PCB assembly processes.
Yes, this product is RoHS compliant, ensuring adherence to environmental standards.
This inductor is ideal for use in portable communications devices, camcorders, and LCD TVs, among other electronics applications.
It features a surface mount termination style, which is compatible with automated assembly techniques.
