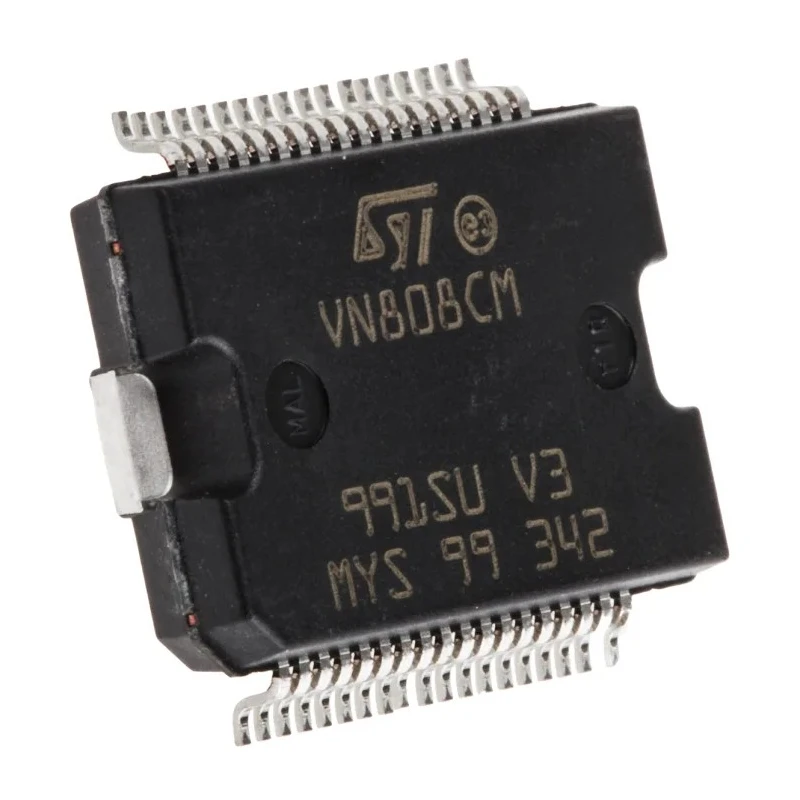

STMicroelectronics High Side Power Switch IC 8 Outputs 96W PowerSO 36-Pin VN808CM-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.3mm |
| Length | 16mm |
| Model | VN808CM-E |
| Width | 11.1mm |
| Mount Type | Surface |
| Number of inputs | 8 |
| Power Rating | 96W |
| Maximum Operating Temperature | 125°C |
| Package Type | PowerSO |
| Minimum Operating Temperature | -40°C |
| Operating Current | 700mA |
| Number of outputs | 8 |
| Pin Count | 36 |
| Maximum Supply Voltage | 45V |
| Minimum Supply Voltage | 10.5V |
| Switch On Resistance RdsOn | 160mΩ |
Key Features
- The device features 8 high side outputs with a switch on resistance of 160 milliohms.
- Designed for surface mount applications with a compact PowerSO 36-pin package.
- Operates within a supply voltage range of 10.5V to 45V ensuring broad compatibility.
- Supports a maximum operating current of 700mA and power rating of 96 Watts.
- Wide operating temperature range from -40°C to 125°C for industrial reliability.
- Complies with IEC 61131 and IEC 61000-4-4 standards for electrical and electromagnetic compatibility.
- Automotive standard compliance is not applicable for this model.
Product Description
STMicroelectronics VN808CM-E is an intelligent high side power switch IC featuring 8 outputs, designed to integrate logic interface, drivers, diagnostic and protection features for high-side power configurations.
This device is housed in a PowerSO 36-pin surface mount package measuring 16 mm by 11.1 mm with a height of 3.3 mm, suitable for compact industrial and automotive electronics applications.
The VN808CM-E operates over a wide supply voltage range from 10.5V up to 45V with a maximum continuous operating current of 700mA and a total power rating of 96 Watts. It delivers efficient power switching with a low on-resistance of 160 milliohms, ensuring minimal power dissipation.
The IC is specified for reliable operation across a broad temperature range from -40°C to 125°C, enabling robust performance in harsh environments commonly encountered in industrial, automotive, and manufacturing control systems.
The product meets stringent IEC 61131 and IEC 61000-4-4 standards which include immunity against electrical transients up to 4 kV, reinforcing its suitability for critical industrial and power management applications.
8 high side outputs with 160mΩ on-state resistance. Power rating of 96W for demanding load control. Surface mount with compact PowerSO 36-pin package. Wide supply voltage range of 10.5V to 45V. Operating current up to 700mA for versatile applications.
Wide operating temperature range of -40°C to 125°C. Conforms to IEC 61131 and IEC 61000-4-4 standards. Reliable electrical transient immunity up to 4 kV.
This Power Switch IC is ideal for industrial automation, power management modules, automotive electronics (non-automotive standard compliant), and other embedded control systems requiring high side switching.
Explore more about STMicroelectronics power switches and related components on EnvMart for your electronics design and manufacturing needs.
