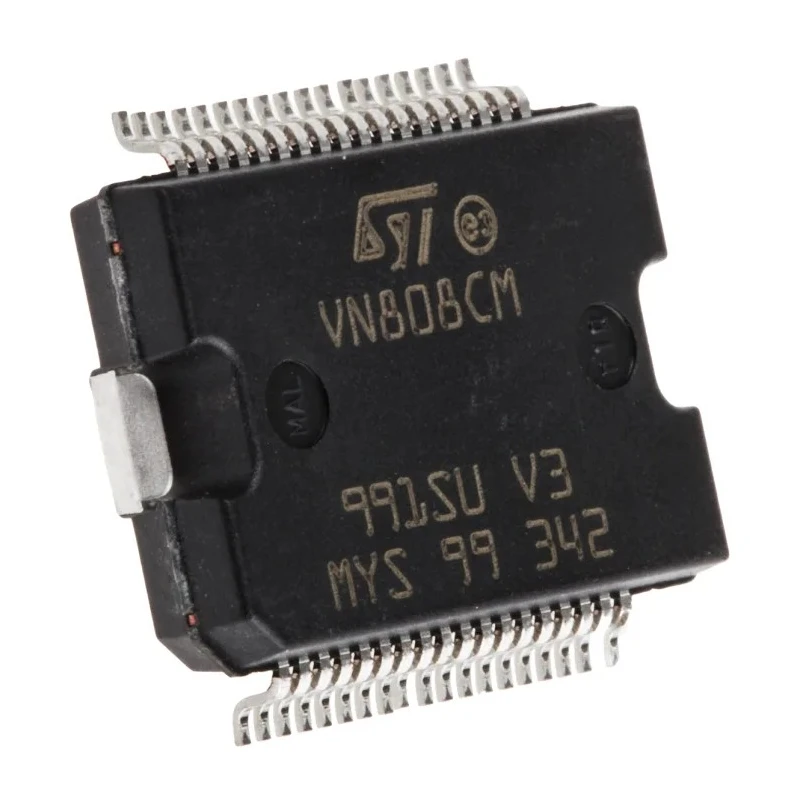

STMicroelectronics High Side 8 Channels Power Switch IC 36-Pin PowerSO Package VN808CM-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.3mm |
| Length | 16mm |
| Model | VN808CM-E |
| Width | 11.1mm |
| Mount Type | Surface |
| Number of inputs | 8 |
| Power Rating | 96W |
| Maximum Operating Temperature | 125°C |
| Package Type | PowerSO |
| Minimum Operating Temperature | -40°C |
| Operating Current | 700mA |
| Number of outputs | 8 |
| Pin Count | 36 |
| Maximum Supply Voltage | 45V |
| Minimum Supply Voltage | 10.5V |
| Switch On Resistance RdsOn | 160mΩ |
Key Features
- Features 8 high side outputs with power rating of 96W.
- Switch On Resistance RdsOn is 160 milliohms ensuring low power loss.
- Operates with supply voltage range from 10.5V to 45V.
- Supports an operating current up to 700mA for robust performance.
- Surface mount type in a compact 36-pin PowerSO package.
- Wide operating temperature range from -40°C to 125°C for industrial environments.
- Complies with IEC 61131 and IEC 61000-4-4 standards for reliability and EMI protection.
- Intelligent power switch integration with drivers, diagnostics, and protection features.
Product Description
STMicroelectronics VN808CM-E is an intelligent high side power switch IC featuring 8 high side outputs designed for efficient and reliable power management in industrial, automotive, and control applications. The device integrates logic interface, drivers, and diagnostic protections, offering a compact and surface-mount package compatible with modern PCB designs.
Operating within a supply voltage range of 10.5V to 45V and supporting an operating current of 700mA, this component delivers a power rating of 96W with a low switch on resistance of 160mΩ, ensuring minimal energy loss and enhanced system efficiency.
The VN808CM-E is housed in a 36-pin PowerSO package with compact dimensions (16mm length, 11.1mm width, and 3.3mm height), suitable for space-constrained applications. It operates reliably across a wide temperature range, from -40°C to 125°C, making it ideal for demanding industrial environments.
This power switch IC complies with IEC standards 61131 and 61000-4-4 (tested up to 4 kV), ensuring robustness against electromagnetic interference and electrical transients. Despite automotive standards not applicable, it is well-suited for general industrial use cases including manufacturing automation, HVAC controls, and power distribution systems.
Features 8 output high side power switches integrated into a single compact IC. Low on resistance minimizes power dissipation and heat generation. Surface mount PowerSO package facilitates easy and reliable PCB mounting.
Wide voltage and temperature operational ranges enhance versatility in various industrial setups. Includes built-in diagnostic and protection features for safe and intelligent switching.
The STMicroelectronics VN808CM-E is a premium solution within Power Switch IC applications, helping engineers design efficient and durable control and distribution circuits. Explore more power management ICs and devices from STMicroelectronics on EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VN808CM-E has a power rating of 96W, making it suitable for various power management applications.
This model supports an operating current of up to 700mA, ensuring robust performance in its applications.
It operates within a supply voltage range of 10.5V to 45V, allowing for versatility in different applications.
The VN808CM-E comes in a 36-pin PowerSO package with dimensions of 16mm in length, 11.1mm in width, and 3.3mm in height.
The switch on resistance (RdsOn) of the VN808CM-E is 160 milliohms, which helps minimize power loss.
It operates reliably across a wide temperature range from -40°C to 125°C, suitable for industrial environments.
Yes, this model integrates drivers, diagnostics, and protection features for intelligent power management.
It complies with IEC standards 61131 and 61000-4-4, ensuring reliability and protection against electromagnetic interference.
This power switch IC features 8 high side outputs, allowing for efficient power management in various applications.
The VN808CM-E is designed for surface mount applications, facilitating easy and reliable PCB installation.
It is well-suited for industrial, automotive, and control applications, including manufacturing automation and HVAC controls.
The VN808CM-E is manufactured in India, reflecting its origin for industrial applications.
