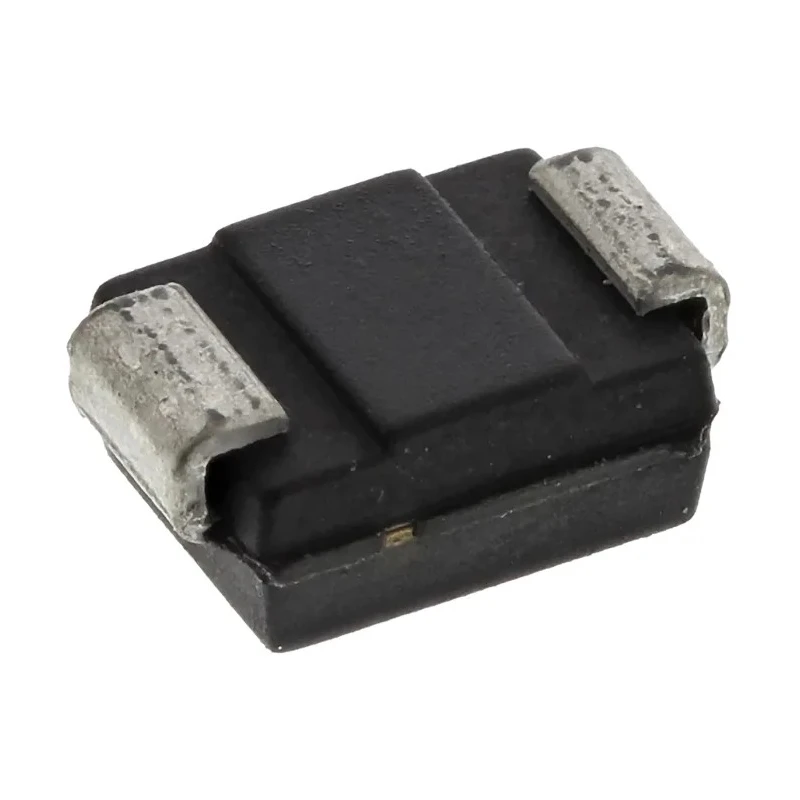

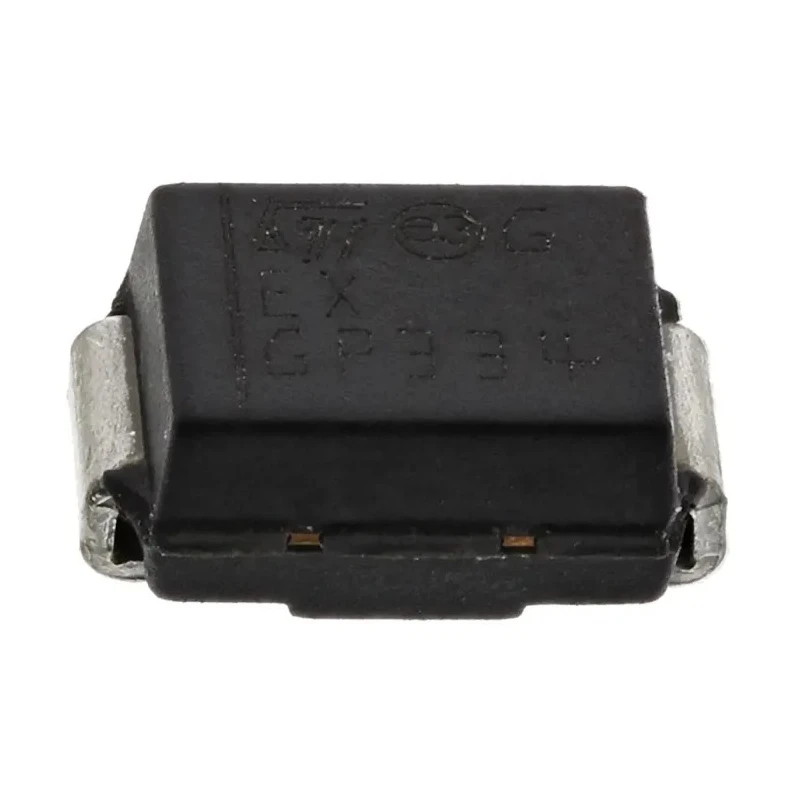

STMicroelectronics 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SM6T39A
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SM6T39A |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SM6T |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 69.7V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 37.1V |
| Maximum Reverse Stand-off Voltage Vwm | 33.3V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 57A |
| Maximum Reverse Leakage Current | 200nA |
Key Features
- Single diode configuration designed for uni-directional transient voltage suppression.
- Surface mount package type DO-214 with 2 pins for easy PCB integration.
- Minimum breakdown voltage of 37.1 V with a clamping voltage of 69.7 V for effective surge protection.
- Capable of handling peak pulse power dissipation up to 600 W and peak pulse current of 57 A.
- Operates reliably over a wide temperature range from -55°C to 150°C.
- Maximum reverse stand-off voltage of 33.3 V to protect sensitive electronic components.
- Low maximum reverse leakage current of 200 nA ensures minimal power loss.
- Manufactured according to the SM6T series with no automotive standard compliance.
Product Description
STMicroelectronics SM6T39A is a high-performance 1-element uni-directional TVS diode designed for transient voltage suppression in electronic circuits. With a robust peak pulse power dissipation of 600 W and a 2-pin surface mount DO-214 package, this diode ensures reliable and compact protection against voltage surges.
This TVS diode belongs to the SM6T series, featuring a single diode configuration optimized for uni-directional applications. It offers a minimum breakdown voltage of 37.1 V, clamping voltage of 69.7 V, and maximum reverse stand-off voltage of 33.3 V, which effectively safeguard sensitive components from transient voltage spikes.
Operating efficiently across a wide temperature range from -55°C to 150°C, the SM6T39A diode maintains excellent performance in various industrial and electronic environments. Its compact dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height facilitate easy integration on printed circuit boards.
This component exhibits a low reverse leakage current of 200 nA, minimizing power loss during normal operation. Rated to handle peak pulse currents up to 57 A, it is well suited for protecting power supplies, communication devices, and industrial electronics from voltage transients and surges.
The SM6T39A diode does not hold specific approvals or automotive certifications but is widely trusted for general-purpose transient voltage suppression in electronic and industrial applications, including power electronics and circuit protection.
Single diode uni-directional transient voltage suppression. Surface mount DO-214 package, easy PCB mounting. 600 W peak pulse power dissipation capacity. Min breakdown voltage 37.1 V and clamping voltage 69.7 V. Wide operating temperature range: -55°C to 150°C.
Compact size with length 4.6 mm, width 3.95 mm, height 2.45 mm. Low reverse leakage current of 200 nA for efficiency. Peak pulse current capability up to 57 A. Ideal for industrial, power supply, and electronic transient voltage protection.
Explore more top-quality semiconductor components and TVS Diodes at EnvMart for reliable circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SM6T39A diode has a peak pulse power dissipation capacity of 600 W.
The minimum breakdown voltage for the SM6T39A is 37.1 V.
The clamping voltage of this diode is 69.7 V.
The maximum reverse stand-off voltage for this model is 33.3 V.
The SM6T39A operates reliably over a temperature range from -55°C to 150°C.
This diode has dimensions of 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
The SM6T39A is capable of handling peak pulse currents up to 57 A.
The maximum reverse leakage current for the SM6T39A is 200 nA.
This diode uses a surface mount DO-214 package type.
The SM6T39A features a single diode configuration optimized for uni-directional applications.
The SM6T39A belongs to the SM6T series of TVS diodes.
This diode is suitable for protecting power supplies, communication devices, and industrial electronics from voltage transients and surges.
