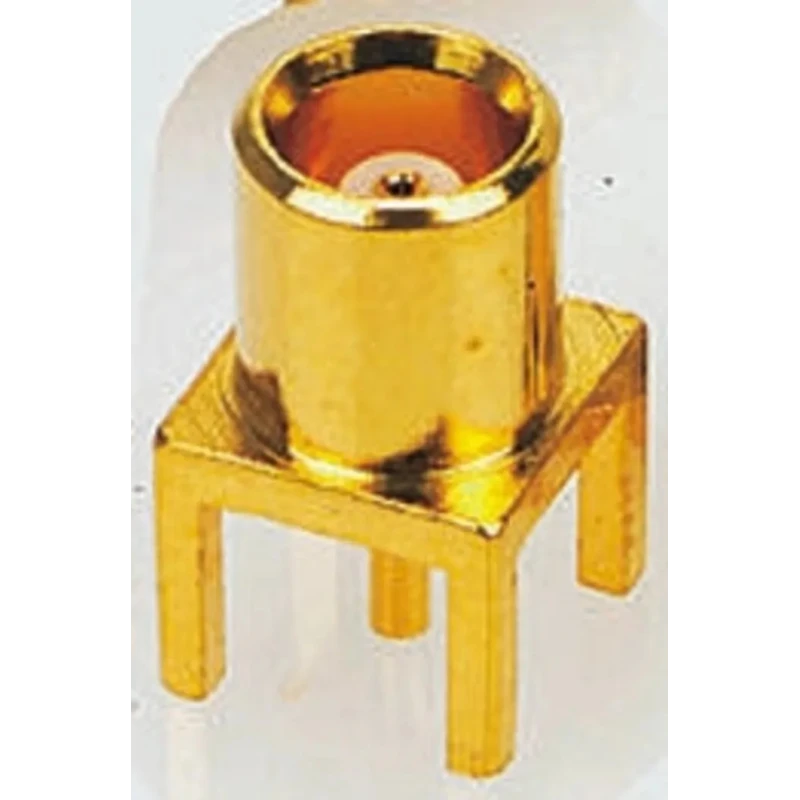

TE Connectivity MCX Series Coaxial Connector Through Hole Female 50Ω Straight Body Solder 1060984-1

TE Connectivity 1060984-1 MCX Series Coaxial Connector Through Hole Female 50Ω Straight Body Solder is a durable, high-quality RF coaxial PCB jack designed for robust broadband applications up to 6 GHz. It provides exceptional performance in compact, microminiature form factor and enables reliable snap-on connections without the need for threaded coupling, saving space and time during assembly.

The connector features a gold-plated body and contacts made of beryllium copper with gold plating, ensuring excellent electrical conductivity and long service life. With a mounting type designed for through hole PCB installation, it integrates effectively into various electronic circuit designs.

Thanks to its wide operating temperature range from -65°C to 165°C, this MCX connector performs reliably in harsh environments encountered in industrial, automotive, and communication systems. Its 50Ω impedance makes it ideal for RF signal transmission and broadband applications including GPS, wireless communications, and video broadcasting.

The straight orientation of this female connector and its normal polarity support standard mating with other MCX series connectors, ensuring compatibility and ease of use in multi-connector setups.

This product is part of the renowned TE Connectivity MCX range, known for lightweight microminiature snap-coupling connectors offering quick connect/disconnect functionality in dense packaging layouts. The connector's compact size is approximately 30% smaller than traditional SMB connectors, optimizing space utilization on PCBs.

The connector has a through hole mount type for PCB integration. Gold plating on body and contact materials provide corrosion resistance and conductivity. Supports operating frequencies up to 6 GHz. Contact material is beryllium copper with gold plating.

Operating temperature range from -65°C to 165°C allows use in various conditions. Snap-on interface design ensures quick mating. Compatible with standard MCX connector series for broad interoperability. Suitable for GPS, automotive, wireless communications, and broadcasting applications.
