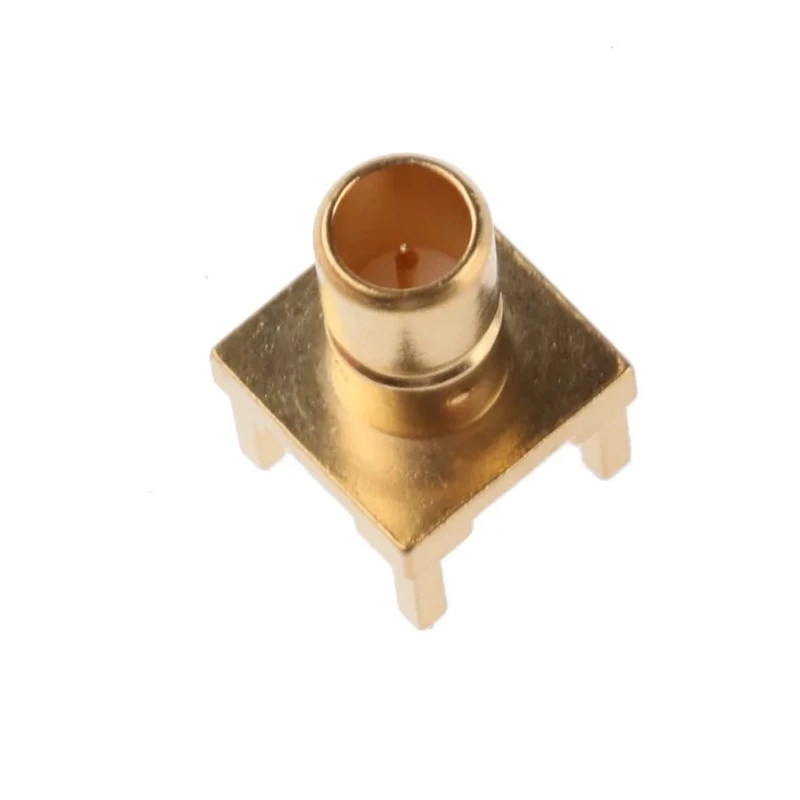

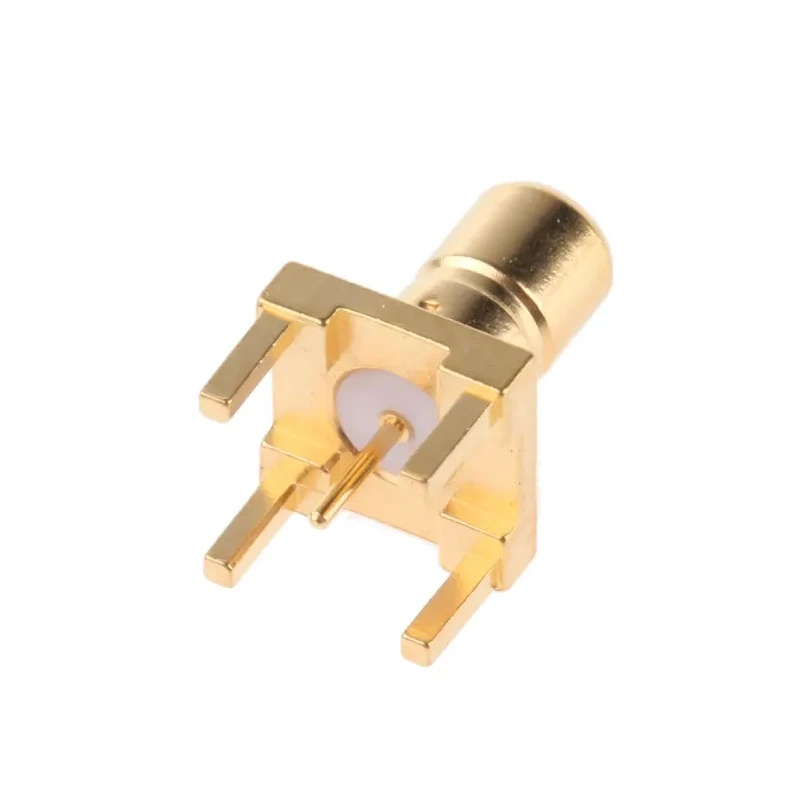

TE Connectivity Coaxial Connector SMB Series Through Hole Female 75 Ω Straight Body Solder 415504-4

TE Connectivity 415504-4 is a Coaxial Connector from the SMB Series designed as a through hole female SMB connector with a straight body and solder termination. It operates at 75 Ω impedance and supports operating frequencies up to 4 GHz, making it suitable for high frequency communication, broadband, and switching applications in industrial and electronic manufacturing sectors.

Manufactured with brass contacts plated in gold and a connector body plated with gold flash, this connector ensures excellent electrical performance and durability even in challenging environmental conditions with temperatures ranging from -65°C to 165°C.

The connector's female gender and normal polarity design provide compatibility with standard SMB interfaces. The through hole mount type facilitates secure and reliable PCB installation, supporting efficient assembly in electronic equipment production.

This standard size SMB connector does not have a bulkhead and features a straight orientation for straightforward circuit layout and connectivity. Its solder termination ensures strong mechanical and electrical connection to printed circuit boards.

TE Connectivity SMB connectors are known for enabling circuit miniaturization in communication systems, broadband devices, and switching equipment, providing compact and robust connectivity solutions.

This connector features a through hole mount type and operates at frequencies up to 4 GHz. It has a 75 Ohm impedance ensuring excellent signal integrity. The connector body is gold flash plated for corrosion resistance and durability.

Constructed with brass contact material plated with gold for optimal conductivity and low contact resistance. The connector is female gender with normal polarity and straight orientation. It is designed to operate within a temperature range of -65°C to 165°C, suitable for harsh environments.

Termination is via solder for a secure connection on PCBs. This SMB series connector supports circuit miniaturization in communication, broadband, and switching equipment. No bulkhead is present on this standard size connector.

TE Connectivity ensures product reliability and quality with no specific standards or approvals listed.

This product is ideal for use in industrial electronics, communications equipment, and instrumentation applications requiring reliable 75 Ohm coaxial connections with stable electrical characteristics under varied environmental conditions.
